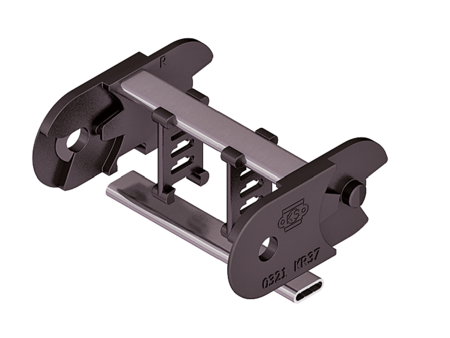

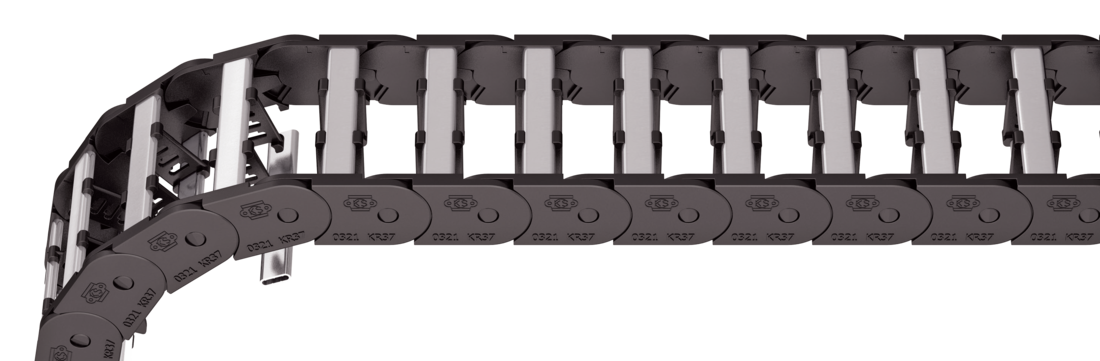

Aluminum stay 01 – frame stay detachable outside

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm grid.
  • Inside: release by turning by 90°.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 25 - 280 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">32</td> <td class="hi red">19</td> <td class="hg">27.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 25 - 280 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 11</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.47 – 1.70</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
37 47 77 100 200

Order example

MC0320
Type
200
Bi [mm]
01
Stay variant
100
KR [mm]
-
1152
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS).

As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A3642

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
aT max
[mm]
ax min
[mm]
ac min
[mm]
nT min
A320642

The dividers can be moved in the cross section.

Order example

TS1
Divider system
A
Version
3
nT
-
VD1
-
VD3
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Bi
[mm]
nzBi
[mm]
nz
252695
292897
3731098
39412410
49414911

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

Plastic/aluminum
Plastic/aluminum
End connector
F
M
Connection point
A
A
Connection type

We recommend the use of strain reliefs at the driver and fixed point.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside

Order example

Plastic/aluminum
Plastic/aluminum
End connector
F
M
Connection point
A
A
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
