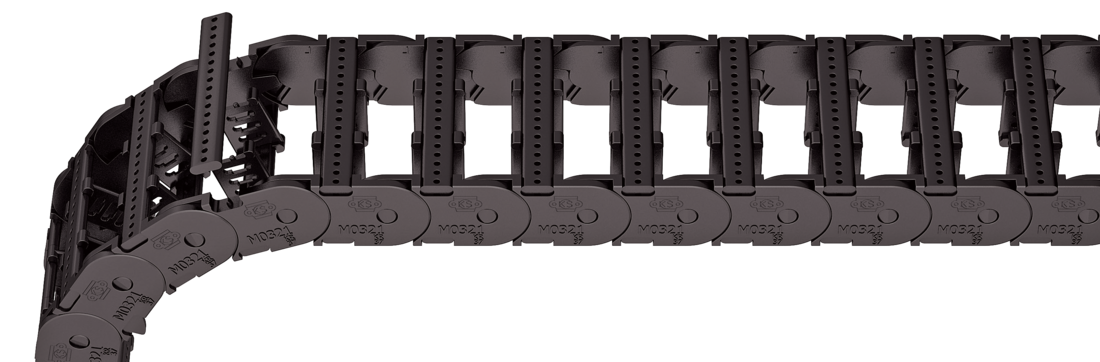

ME0320 RE

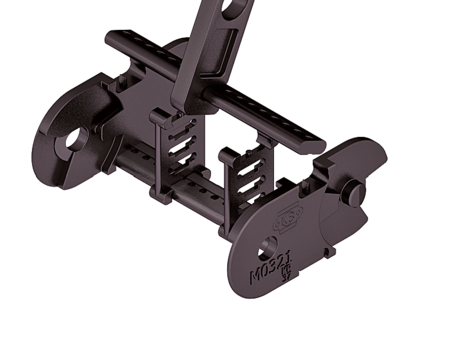

Plastic stay RE – screw-in frame stay
Properties
- Plastic profile bars for light to medium loads. Assembly without screws.
- Available customized in 4 mm grid.
- Outside/inside: release by turning by 90°.
Dimensions Dimensions
| Bi [mm] * ** | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 25 | 29 | 33 | 37 | 41 | 45 | 49 | 53 | 57 | 61 |
| 65 | 69 | 73 | 77 | 81 | 85 | 89 | 93 | 97 | 101 |
| 105 | 109 | 113 | 117 | 121 | 125 | 129 | 133 | 137 | 141 |
| 145 | 149 | ||||||||
| KR [mm] | ||||
|---|---|---|---|---|
| 37 | 47 | 77 | 100 | 200 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS). As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).
The dividers are easily attached to the stay for applications with lateral acceleration and for applications laying on their side by simply turning the frame stay by 180°. The arresting cams click into place in the locking grids in the crossbars (version B). The groove in the frame stay faces outwards.
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 3 | 6 | 4 | – | – |
| B | 4.5 | 8 | 6 | 4 | – |
The dividers can be moved in the cross section.
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | aT max [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|---|
| A | 3 | 20 | 6 | 4 | – | 2 |
| B | 4.5 | 20.5 | 8 | 6 | 4 | 2 |
The dividers can be moved in the cross section.
Order example
Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].
If using divider systems with height separation (TS1), please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
| Bi [mm] | nz | Bi [mm] | nz |
|---|---|---|---|
| 25 | 2 | 69 | 5 |
| 29 | 2 | 89 | 7 |
| 37 | 3 | 109 | 8 |
| 39 | 4 | 124 | 10 |
| 49 | 4 | 149 | 11 |
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
H – threaded joint, rotated 90° to the outside
K – threaded joint, rotated 90° to the inside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
