M0475
M0475
Pitch
47.5 mm
47.5 mm
Inner height
28 mm
28 mm
Inner widths
24 - 280 mm
24 - 280 mm
Bending radii
55 - 300 mm
55 - 300 mm
Stay Variants
MK0475 RD 01
more details
MK0475 RD 02
more details
Stay Variants

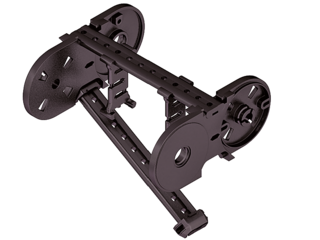

MK0475 RD 01
Frame stay with hinge in the inner radius
- Plastic profile bars with hinge for light to medium loads. Assembly without screws.
- Outside: release by turning by 90°.
- Inside: swivable to both sides.

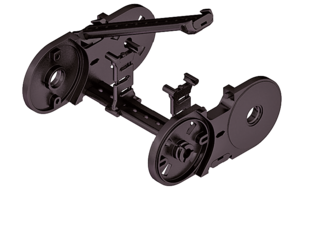

MK0475 RD 02
Frame stay with hinge in the outer radius
- Plastic profile bars with hinge for light to medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 55 | 149 | 174 | 268 | 122 |
| 75 | 189 | 214 | 331 | 142 |
| 100 | 239 | 264 | 410 | 167 |
| 130 | 299 | 324 | 504 | 197 |
| 160 | 359 | 384 | 598 | 227 |
| 200 | 439 | 464 | 724 | 267 |
| 250 | 539 | 564 | 881 | 317 |
| 300 | 639 | 664 | 1038 | 367 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.7 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 2.7 m
Additional load
up to 3.0 kg/m
