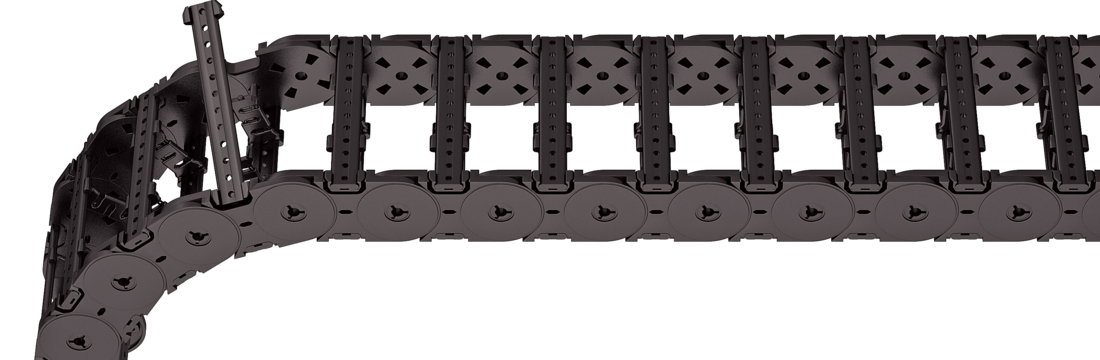

MK0475 RD 02

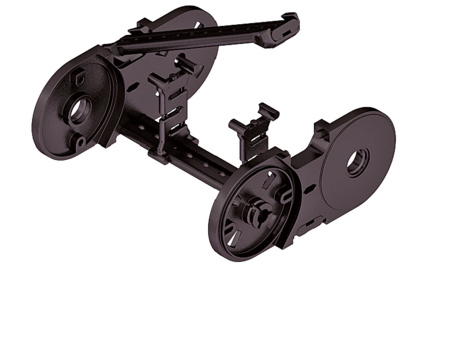

Plastic stay RD 02 – frame stay with hinge in the outer radius
Properties
- Plastic profile bars with hinge for light to medium loads. Assembly without screws.
- Available customized in 8 mm grid.
- Outside: swivable to both sides.
Inside: release by turning by 90°.
Dimensions Dimensions
| Bi [mm] * | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 24 | 32 | 40 | 48 | 56 | 64 | 72 | 80 | 88 | 96 |
| 104 | 112 | 120 | 128 | 136 | 144 | 152 | 160 | 168 | 176 |
| 184 | 192 | 200 | 208 | 216 | 224 | 232 | 240 | 248 | 256 |
| 264 | 272 | 280 | |||||||
| KR [mm] | |||||||
|---|---|---|---|---|---|---|---|
| 55 | 75 | 100 | 130 | 160 | 200 | 250 | 300 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS). As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).
The dividers are easily attached to the stay for applications with lateral acceleration and for applications laying on their side by simply turning the frame stay by 180°. The arresting cams click into place in the locking grids in the crossbars (version B). The groove in the frame stay faces outwards.
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 6 | 7.8 | 5 | – | – |
| B | 12 | 8 | 5.2 | 8 | – |
The dividers can be moved within the cross section (version A) or fixed (version B).
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | aT max [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|---|
| A | 6 | 20 | 7.8 | 5 | – | 2 |
| B | 12 | 20 | 8 | 5.2 | 8 | 2 |
The dividers can be moved within the cross section (version A) or fixed (version B).
Divider system TS2
with partial height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| B | 12 | 8*/24 | 5.2*/21.2 | 8 | 2 |
* for VR0
With grid distribution (8 mm grid). The dividers are fixed by the height separation, the complete divider system is movable in the cross section (version A) or fixed (version B).
Order example
End connectors End connectors
| Bi [mm] | X [mm] | nz |
|---|---|---|
| 40 | 17.5 | 3 |
| 56 | 21.5 | 4 |
| 80 | 17.5 | 6 |
| 104 | 19 | 8 |
| 128 | 19.5 | 9 |
| 152 | 17.5 | 11 |
| 192 | 18.5 | 14 |
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
Connection surface
I – connection surface inside
Order example
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection
Connection surface
I – connection surface inside
A – connection surface outside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
