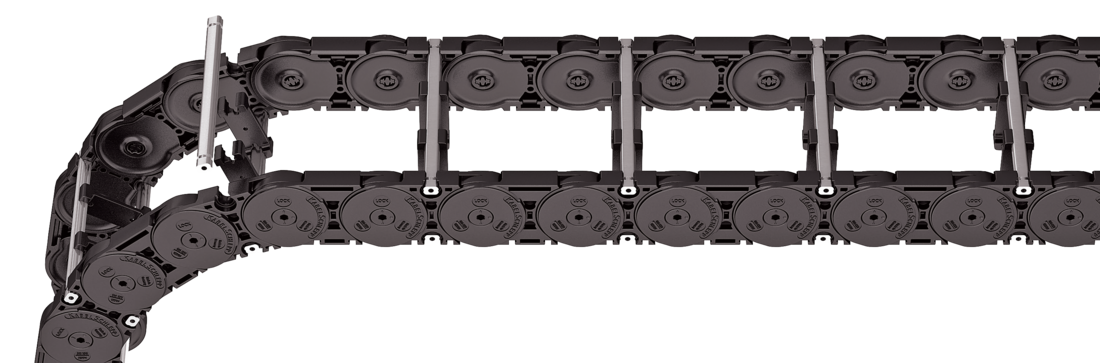

MC0650 RS

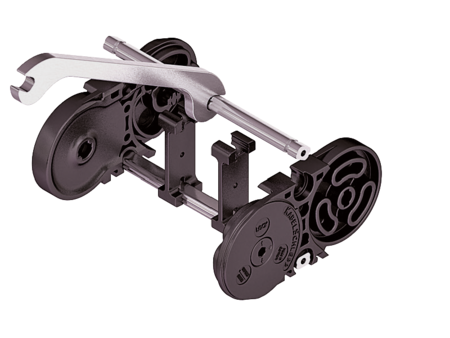

Aluminum stay RS – frame stay narrow
Properties
- Extremely quick to open and close
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Available customized in 1 mm grid.
- Outside/inside: release by turning by 90°.
Dimensions Dimensions
| KR [mm] | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 75 | 95 | 115 | 145 | 175 | 220 | 260 | 275 | 300 | 350 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on each crossbar – for stay mounting on every 2nd chain link (HS). As a standard, dividers and the complete divider system (dividers with height separations) can be moved in the cross section (version A).
For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory). The bushing additionally serves as a spacer between the dividers and is available in 1 mm sections between 3 – 50 mm. The inner height is reduced to 32 mm (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 6.5 | 13 | 10 | 2 |
The dividers can be moved in the cross section.
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | aT max [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|---|
| A | 6.5 | 25 | 13 | 10 | 2 |
The dividers can be moved in the cross section.
Divider system TS2
with partial height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 1.5 | 21 | 15 | 2 |
With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 3 mm).
Divider system TS3
with height separation made of plastic partitions
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 4 | 16 / 42* | 8 | 2 |
* For aluminum partitions
The dividers are fixed by the partitions, the complete divider system is movable in the cross section.
Aluminum partitions with 1 mm increments with ax > 42 mm are also available.
ax (center distance of dividers) [mm] | |||||||||||
ac (nominal width of inner chamber) [mm] | |||||||||||
| 16 | 18 | 23 | 28 | 32 | 33 | 38 | 43 | 48 | 58 | 64 | 68 |
| 8 | 10 | 15 | 20 | 24 | 25 | 30 | 35 | 40 | 50 | 56 | 60 |
| 78 | 80 | 88 | 96 | 112 | 128 | 144 | 160 | 176 | 192 | 208 | |
| 70 | 72 | 80 | 88 | 104 | 120 | 136 | 152 | 168 | 184 | 200 | |
When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 3 mm). Twin dividers are also suitable for retrofitting in the partition system.
Order example
Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).
If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
Connection point
F – fixed point
M – driver
Connection type
U – universal mounting bracket
Order example
We recommend the use of strain reliefs at the driver and fixed point.
Connection point
F – fixed point
M – driver
Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection
Connection surface
I – connection surface inside
A – connection surface outside
Order example
We recommend the use of strain reliefs at the driver and fixed point.
