MT0475
MT0475
Pitch
47.5 mm
47.5 mm
Inner height
26 mm
26 mm
Inner widths
24 - 280 mm
24 - 280 mm
Bending radii
75 - 300 mm
75 - 300 mm
Stay Variants
MT0475 RMD 01
more details
MT0475 RMD 02
more details
MT0475 RDD 01
more details
MT0475 RDD 02
more details
Stay Variants

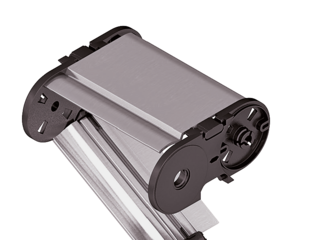

MT0475 RMD 01
Cover with hinge in the inner radius
- Aluminum cover system with hinge for light and medium loads. Assembly without screws.
- Outside: release by rotating 90°.
- Inside: swivable to both sides.

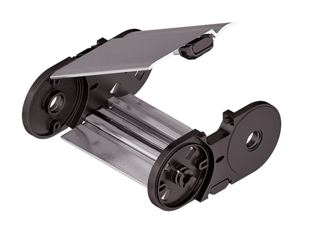

MT0475 RMD 02
Cover with hinge in the outer radius
- Aluminum cover system with hinge for light and medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.

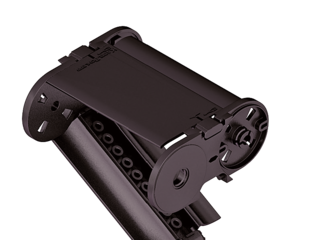

MT0475 RDD 01
Cover with hinge in the inner radius
- Plastic cover system with hinge for light and medium loads. Assembly without screws.
- Outside: release by rotating 90°.
- Inside: swivable to both sides.

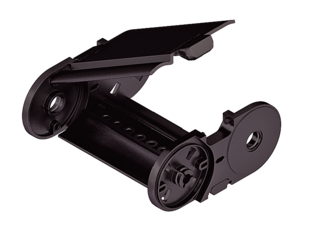

MT0475 RDD 02
Cover with hinge in the outer radius
- Plastic cover system with hinge for light and medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 75 | 189 | 214 | 331 | 142 |
| 100 | 239 | 264 | 410 | 167 |
| 130 | 299 | 324 | 504 | 197 |
| 160 | 359 | 384 | 598 | 227 |
| 200 | 439 | 464 | 724 | 267 |
| 250 | 539 | 564 | 881 | 317 |
| 300 | 639 | 664 | 1038 | 367 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.7 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 2.7 m
Additional load
up to 3 kg/m
