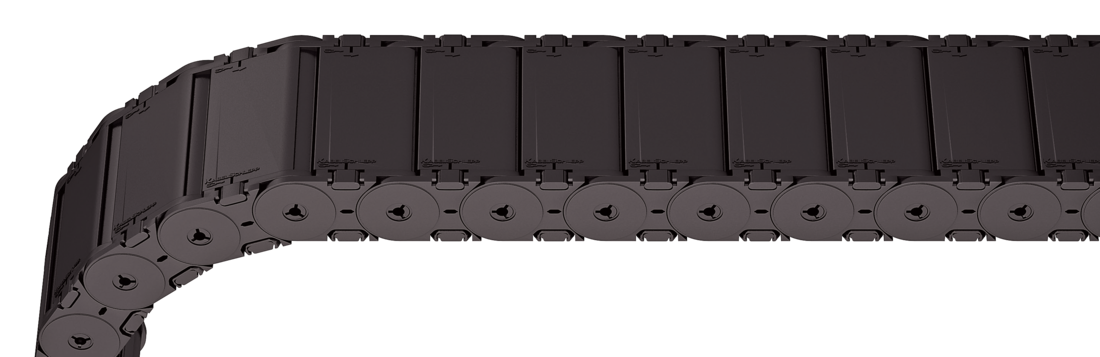

MT0475 RDD 01

MT0475 RDD 01

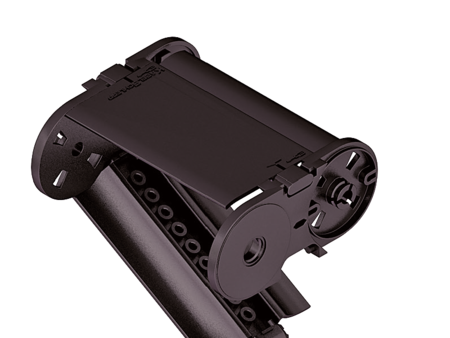

Plastic cover RDD 01 – cover with hinge in the inner radius

Properties

  • Plastic cover system with hinge for light and medium loads. Assembly without screws.
  • Available customized in 8 mm sections.
  • Outside: release by rotating 90°.
  • Inside: swivable to both sides.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 24 - 280 mm in 8 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">47.5</td> <td class="hi red">26</td> <td class="hg">39</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 17</td> <td class="bef">Bi + 17</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.90 - 4.41</td> </tr> </tbody> </table>
Bi [mm] *
24 32 40 48 56 64 72 80 88 96
104 112 120 128 136 144 152 160 168 176
184 192 200 208 216 224 232 240 248 256
264 272 280
* in 8 mm width sections
KR [mm]
75 100 130 160 200 250 300

Order example

MT0475
Type
•
128
Bi [mm]
•
RDD 01
Stay variant
•
100
KR [mm]
-
1425
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is assembled at every 2nd chain link.

For applications with lateral acceleration and laying on the side, the dividers or the complete divider system (dividers with height separations) are fixed in the cross section. The arresting cams click into place in the locking grids in the crossbars (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
B67.858–

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
B67.8582

The dividers are fixed in the cross section (version B).

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
B128*/245.2*/21.282

* for VR0

With grid distribution (8 mm grid). The dividers are fixed by the height separation, the grid is fixed in the cross section (version B).

Order example

TS2
Divider system
•
B
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

End connectors End connectors

Bi
[mm]		x
[mm]		nz
4017.53
5621.54
8017.56
10419.08
12819.59
15217.511
19218.514

Other widths only available without strain relief.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Connection surface
I – connection surface inside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
A – connection surface outside
I – connection surface inside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
