MT series
MT series

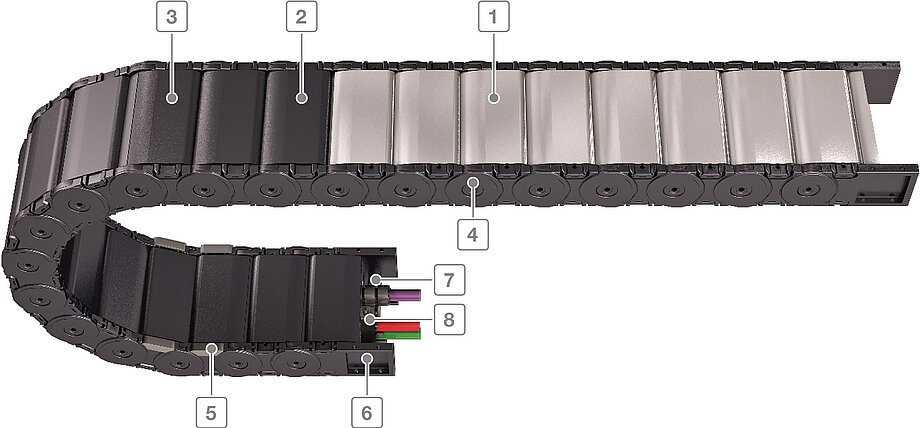

Variable, closed cable carrier with extensive range of accessories
- Aluminum cover available in 1 mm width sections
- Plastic cover available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying
- Locking bolts
- Replaceable glide shoes
- Universal end connectors (UMB)
- C-rail for strain relief elements
- Strain relief elements
Features
Features
- Encapsulated, dirt-resistant stroke system
- Stable side bands through robust link plate design
- Easy assembly of side bands through bars with easy-to-assemble locking bolts
- Long service life due to minimized hinge wear owing to the “life extending 2 disc principle”
- Large selection of vertical and horizontal stay systems and separation options for your cables
- Versions with aluminum cover system available in 1 mm width sections up to 800 mm inner width
- Versions with plastic cover system available in 8 or 16 mm width sections
Inner width (Bi) in 1 mm increments
8Inner width (Bi) in 8 mm increments
Inner width (Bi) in 16 mm increments
Long travel length
High additional load
Covered cable carrier
Opens inward/outward
Sliding dividers
Fixable dividers
Height separation possible
Minimized hinge wear owing to the “life extending 2 disc principle”
Sturdy link plate design, encapsulated stroke system
Easy to assemble through locking bolts
Replaceable glide shoes for long service life for gliding applications
Types
more details
more details
more details
more details
more details

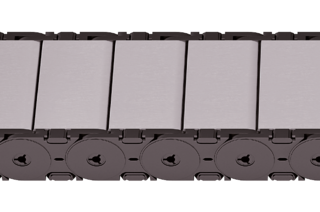

MT0475
- Inner height [hi]: 26 mm
- Inner widths [Bi]: 24 - 280 mm
- Pitch [t]: 47.5 mm
- Bending [KR]: 75 - 300 mm

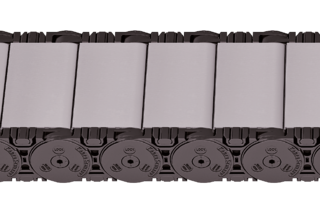

MT0650
- Inner height [hi]: 38.5 mm
- Inner widths [Bi]: 50 - 500 mm
- Pitch [t]: 65 mm
- Bending [KR]: 95 - 350 mm

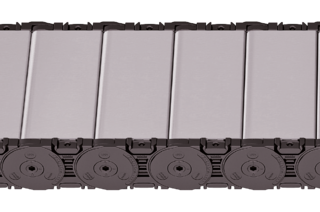

MT0950
- Inner height [hi]: 54.5 mm
- Inner widths [Bi]: 77 - 600 mm
- Pitch [t]: 95 mm
- Bending [KR]: 140 - 380 mm

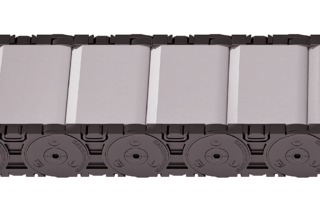

MT1250
- Inner height [hi]: 68.5 mm
- Inner widths [Bi]: 103 - 800 mm
- Pitch [t]: 125 mm
- Bending [KR]: 220 - 500 mm

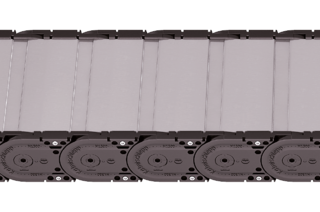

MT1300
- Inner height [hi]: 87 mm
- Inner widths [Bi]: 100 - 800 mm
- Pitch [t]: 130 mm
- Bending [KR]: 240 - 500 mm
