MT1300
130 mm
87 mm
100 - 800 mm
240 - 500 mm
Stay Variants

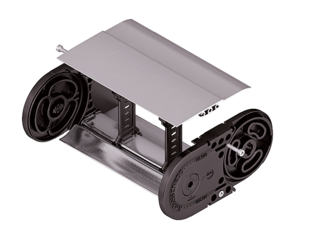

MT1300 RMD
Solid cover
- Aluminum cover system for heavy loads and maximum cable carrier widths. Threaded joint on both sides.
- Outside/inside: threaded joint easy to release.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 240 | 660 | 720 | 1014 | 430 |
| 280 | 740 | 800 | 1140 | 470 |
| 320 | 820 | 880 | 1266 | 510 |
| 360 | 900 | 960 | 1391 | 550 |
| 400 | 980 | 1040 | 1517 | 590 |
| 500 | 1180 | 1240 | 1831 | 690 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 8.0 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 20 m/s2
Travel length
up to 10.8 m
Additional load
up to 70 kg/m
GLIDING ARRANGEMENT | GO MODULE
with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 240 | 360 | 500 | 2470 | 1125 |
| 320 | 360 | 500 | 2880 | 1240 |
| 360 | 360 | 500 | 3140 | 1331 |
| 500 | 360 | 500 | 4310 | 1756 |
Speed
up to 8 m/s
Acceleration
up to 20 m/s2
Travel length
up to 300 m
Additional load
up to 70 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 4 adapted KR/RKR link plates.
Glide shoes have to be used for gliding applications.
