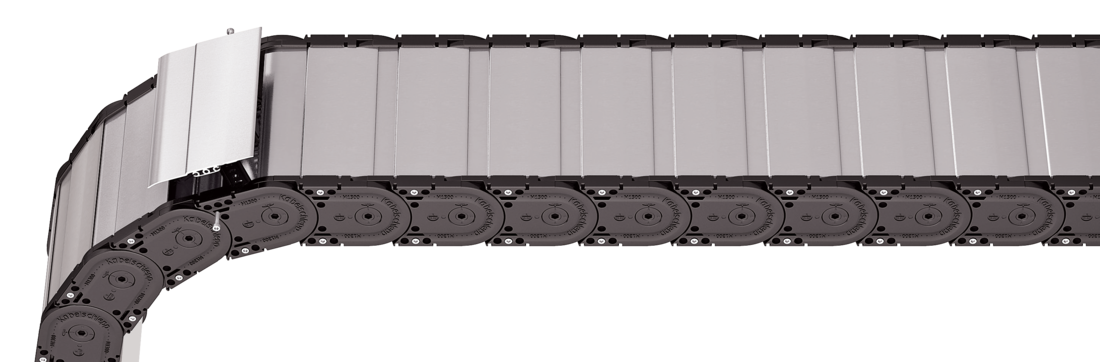

MT1300 RMD

MT1300 RMD

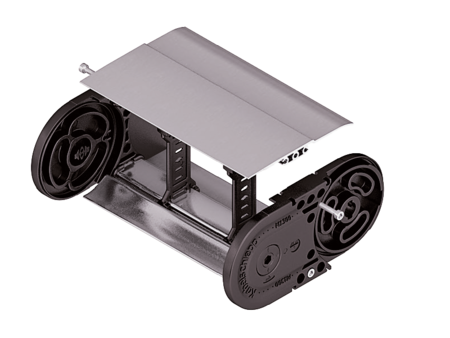

Aluminum cover RMD – Solid cover

Properties

  • Aluminum cover system for heavy loads and maximum cable carrier widths. Threaded joints on both sides.
  • Available customized in 1 mm sections.
  • Outside/inside: threaded joint easy to release.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 800 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">130</td> <td class="hi red">87</td> <td class="hg">120</td> <td class="hgdash">127.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 100 - 800 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 50</td> <td class="bef">Bi + 50</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">8.80 - 27.40</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
240 280 320 360 400 500

Order example

MT1300
Type
•
360
Bi [mm]
•
RMD
Stay variant
•
360
KR [mm]
-
2600
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on every 2nd chain link. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and lying on the side, the dividers can be attached by simple insertion of a fixing profile into the RMD stay, available as an accessory (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A121510––
B1515105–

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A12251510–2
B1525151052

Divider system TS3
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1216/42*82

* For aluminum partitions

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.

Aluminum partitions in 1 mm width sections with ax > 42 mm are also available.

ax (center distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

161823283233384348586468
81015202425303540505660
78808896112128144160176192208
70728088104120136152168184200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 5 mm). Twin dividers are also suitable for retrofitting in the partition system.

Order example

TS3
Divider system
•
B
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 54 Nm for cheese-head screws ISO 4762 - M10 - 8.8

Connection point
F – fixed point
M – driver

Connection type
U – universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
