MT1250
125 mm
68.5 mm
103 - 800 mm
220 - 500 mm
Stay Variants

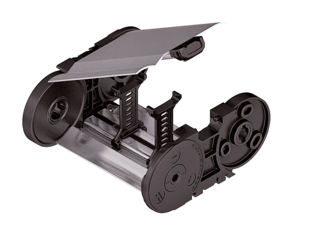

MT1250 RMD
Cover with hinge in the outer radius “standard”
- Aluminum cover system with hinge for light and medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning 90°.

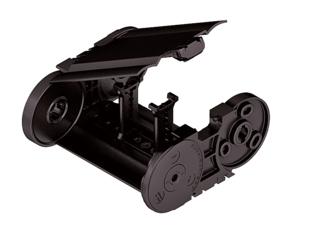

MT1250 RDD
Cover with hinge in the outer radius “standard”
- Plastic cover system with hinge for light and medium loads. Assembly without screws.
- Outside: swivable to both sides.
- Inside: release by turning by 90°.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 220* | 536 | 586 | 942 | 393 |
| 260 | 616 | 666 | 1067 | 433 |
| 300 | 696 | 746 | 1193 | 473 |
| 340 | 776 | 826 | 1319 | 513 |
| 380 | 856 | 906 | 1444 | 553 |
| 500 | 1096 | 1146 | 1821 | 673 |
* not RMD
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 8.0 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 20 m/s2
Travel length
up to 9.7 m
Additional load
up to 65 kg/m
GLIDING ARRANGEMENT | GO MODULE
with chain links optimized for gliding
| KR [mm] | H [mm] | GO module RKR [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 220* | 288 | 500 | 2250 | 1015 |
| 260 | 288 | 500 | 2500 | 1095 |
| 300 | 288 | 500 | 2750 | 1177 |
| 340 | 288 | 500 | 3125 | 1318 |
| 380 | 288 | 500 | 3375 | 1403 |
| 500 | 288 | 500 | 4375 | 1770 |
* not RMD
Speed
up to 8 m/s
Acceleration
up to 20 m/s2
Travel length
up to 270 m
Additional load
up to 65 kg/m
The gliding cable carrier must be guided in a channel.
The GO module mounted on the driver is a defined sequence of 4 adapted KR/RKR link plates.
Glide shoes have to be used for gliding applications.
