MT0650

MT0650

Pitch
65 mm
Inner height
38.5 mm
Inner widths
50 - 500 mm
Bending radii
95 - 350 mm
Stay Variants

Stay Variants

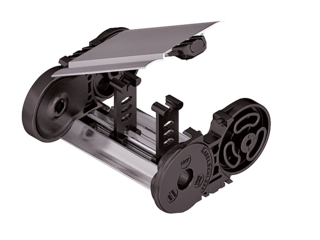

MT0650 RMD
Cover with hinge in the outer radius “standard”
  • Aluminum cover system with hinge for light and medium loads. Assembly without screws.
  • Outside: swivable to both sides.
  • Inside: release by turning 90°.
more details

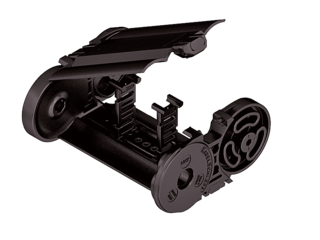

MT0650 RDD
Cover with hinge in the outer radius “standard”
  • Plastic cover system with hinge for light and medium loads. Assembly without screws.
  • Outside: swivable to both sides.
  • Inside: release by turning by 90°.
more details
Installation dimensions

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR
[mm]
H
[mm]
Hz
[mm]
LB
[mm]
UB
[mm]
95*247282429189
115287322492209
145347382586239
175407442680269
220497532822314
260577612948354
275607642994369
3006576921073394
3507577921230444

* not RMD

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight qk = 3.5 kg/m. For other inner widths, the maximum additional load changes.

Speed
up to 10 m/s

Acceleration
up to 35 m/s2

Travel length
up to 4.8 m

Additional load
up to 25 kg/m


GLIDING ARRANGEMENT
GO module with chain links optimized for gliding

KR
[mm]
H
[mm]
GO module RKR
[mm]
LB
[mm]
UB
[mm]
95*1713001180560
1151713001310605
1451713001440640
1751713001635705
2201713001950810
2601713002275926
2751713002405973
35017130029251152

* not RMD

Speed
up to 8 m/s

Acceleration
up to 20 m/s2

Travel length
up to 170 m

Additional load
up to 25 kg/m

The gliding cable carrier must be guided in a channel.

The GO module mounted on the driver is a defined sequence of 5 adapted KR/RKR link plates.

Glide shoes have to be used for gliding applications.
