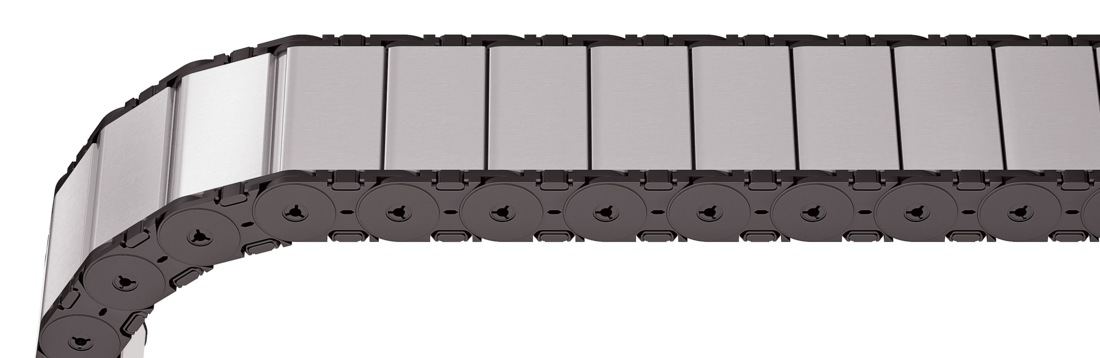

Aluminum cover RMD 01 – cover with hinge in the inner radius

Properties

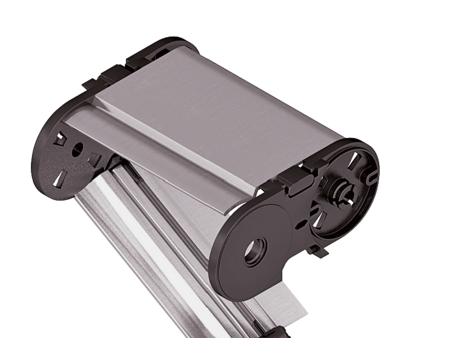

  • Aluminum cover system with hinge for light and medium loads. Assembly without screws.
  • Available customized in 1 mm sections.
  • Outside: release by turning 90°.
  • Inside: swivable to both sides.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 33 - 180 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">47.5</td> <td class="hi red">26</td> <td class="hg">39</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 33 - 180 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 17</td> <td class="bef">Bi + 17</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">1.40 – 4.92</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
75 100 130 160 200 250 300

Order example

MT0475
Type
•
128
Bi [mm]
•
RMD01
Stay variant
•
100
KR [mm]
-
1425
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on every 2nd chain link.

As a standard, dividers or the complete divider System (dividers with height separations) are movable in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A67.85–

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A6207.852

The dividers can be moved in the cross section.

Order example

TS1
Divider system
•
A
Version
•
3
nT
-
VD1
-
VD3
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Bi
[mm]		x
[mm]		nz
4017.53
5621.54
8017.56
10419.08
12819.59
15217.511
19218.514

Other widths only available without strain relief.

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Connection surface
I – connection surface inside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside
F – flange connection

Connection surface
A – connection surface outside
I – connection surface inside

Order example

Plastic/steel
Plastic/steel
End connector
•
F
•
M
Connection point
A
A
Connection type
I
I
Connection surface

We recommend the use of strain reliefs at the driver and fixed point.
