MONO 0130/0132/0134
MONO 0130/0132/0134

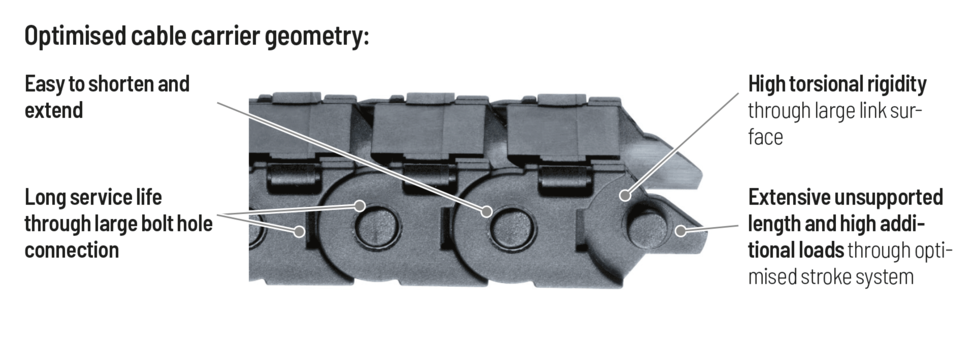

Pitch
13 mm
13 mm
Inner height
10 mm
10 mm
Inner widths
6 - 20 mm
6 - 20 mm
Bending radii
20 - 37 mm
20 - 37 mm
Stay Variants
0132
more details
0130
more details
0134
more details
Stay Variants

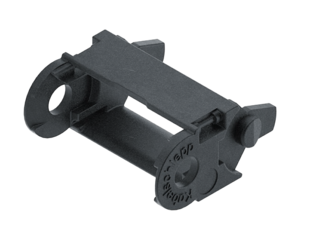

0132
Closed frame (design 020)
- Weight optimised, closed plastic frame with high torsional rigidity.
- Outside/inside: not openable.

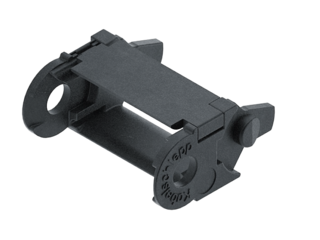

0130
Frame with outside opening crossbars (design 030)
- Weight optimised plastic frame with high torsional rigidity.
- Openable at any position.
- Outside: openable.

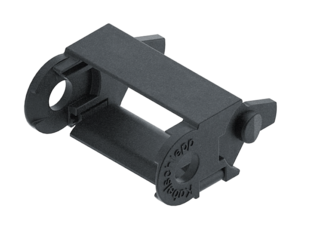

0134
Frame with inside opening crossbars (design 040)
- Weight optimised plastic frame with high torsional rigidity.
- Openable at any position.
- Inside: openable.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 20 | 52.5 | 62.5 | 89 | 40 |
| 28 | 68.5 | 78.5 | 114 | 48 |
| 37 | 86.5 | 96.5 | 142 | 57 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.16 kg/m with Bi 15 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 1.15 m
Additional load
up to 0.5 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 30 m/s2
Travel length
up to 40 m
Additional load
up to 0.5 kg/m
The gliding cable carrier must be guided in a channel.
Only designs 020 and 030 can be used for a gliding arrangement.
