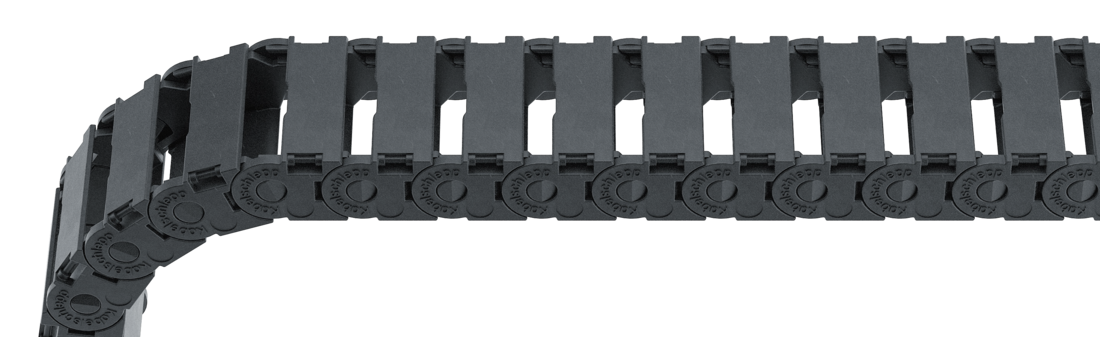

Type 0132 – closed frame

Properties

  • Weight optimised, closed plastic frame with high torsional rigidity.
  • Outside/inside: not openable.

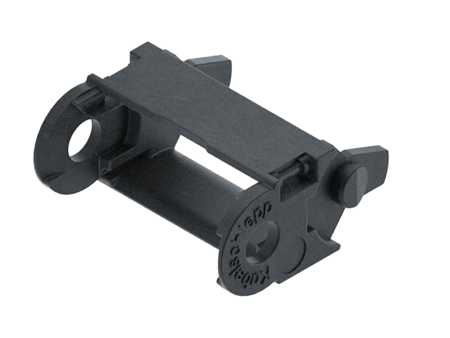

Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 6 - 20 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">13</td> <td class="hi red">10</td> <td class="hg">12.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 6</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0,091 – 0,162</td> </tr> </tbody> </table>
Bi [mm]
6 10 15 20
KR [mm]
20 28 37

Order example

MONO
Series
•
0132
Type
•
15
Bi [mm]
•
28
KR [mm]
-
390
Lk [mm]
VS
Stay arrangement

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Depending on the design, the connection angles can be swivelled up to 12 °.

Order example

End connector
End connector
End connector
•
F
•
M
Connection point
A
A
Connection type

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Depending on the design, the connection angles can be swivelled up to 12 °.
