MONO series

MONO series

Cable carriers for standard applications

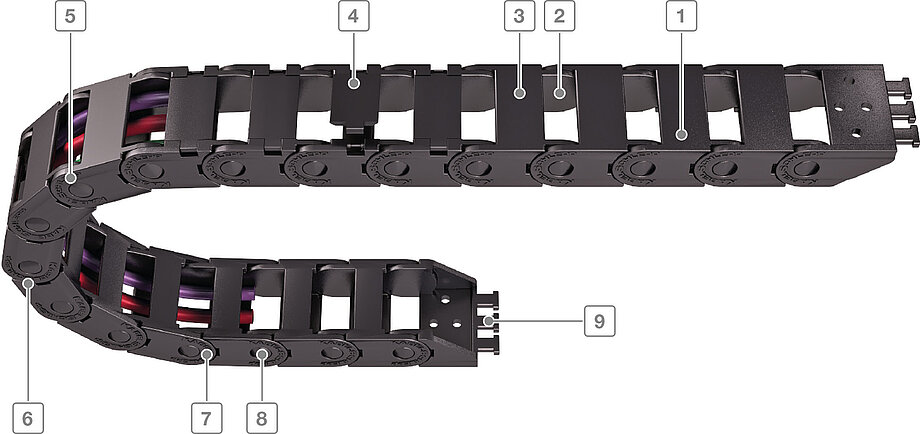

Plastic chain links
Inside space is gentle on the cables – no interfering edges
Types with single-part links

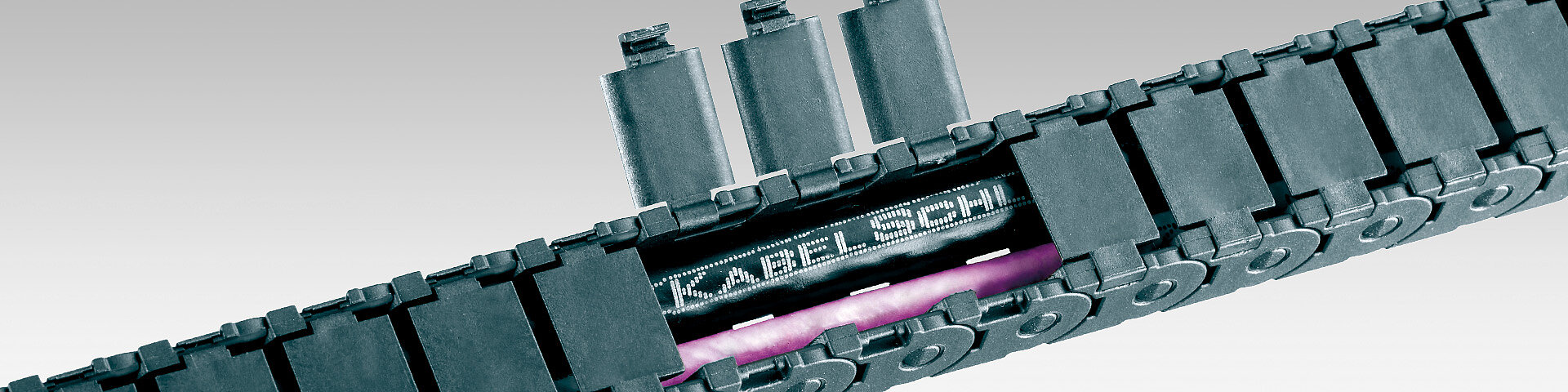

Types with opening crossbars
High torsional rigidity through large link surface
Extensive unsupported length and high additional loads through optimised stroke system
Easy to shorten and extend
Long service life through large bolt hole connection
End connectors with integrated strain relief

Features

Features

Cost-effective cable carrier
Easy and fast installation
Many types available immediately ex-stock world wide
Long service life
Great unsupported lengths compared to the unit size
High torsional rigidity
Easy to install

Long travel length

Cannot be opened

Opens outward

Opens inward

Quiet running/low noise

Small types for narrow installation spaces

Fast shortening/extending with push-to-connect chain links

Different connection variants through simple reconnecting of the end connectors

Types

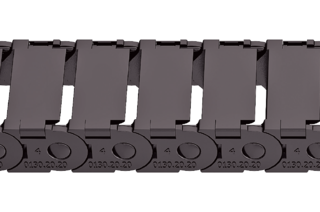

MONO 0130/0132/0134

Inner height [hi]: 10 mm
Inner widths [Bi]: 6 - 20 mm
Pitch [t]: 13 mm
Bending [KR]: 20 - 37 mm

more details

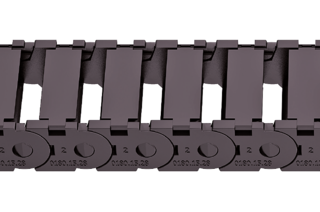

MONO 0180/0182/0184

Inner height [hi]: 15 mm
Inner widths [Bi]: 10 - 40 mm
Pitch [t]: 18 mm
Bending [KR]: 28 - 50 mm

more details

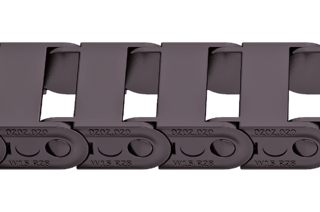

MONO 0202

Inner height [hi]: 11 mm
Inner widths [Bi]: 6 - 20 mm
Pitch [t]: 20 mm
Bending [KR]: 18 - 50 mm

more details

Type	hi [mm]	Bi [mm]	t [mm]	KR [mm]
MONO 0130/0132/0134	10	6 - 20	13	20 - 37
MONO 0180/0182/0184	15	10 - 40	18	28 - 50
MONO 0202	11	6 - 20	20	18 - 50
