MONO 0202
20 mm
11 mm
6 - 20 mm
18 - 50 mm
Stay Variants
0202

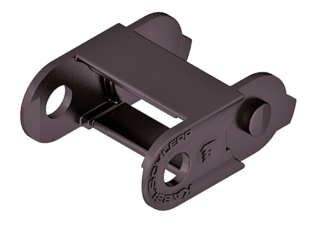

Closed frame (design 020)
- Weight optimised, closed plastic frame with high torsional rigidity.
- Outside/inside: not openable.

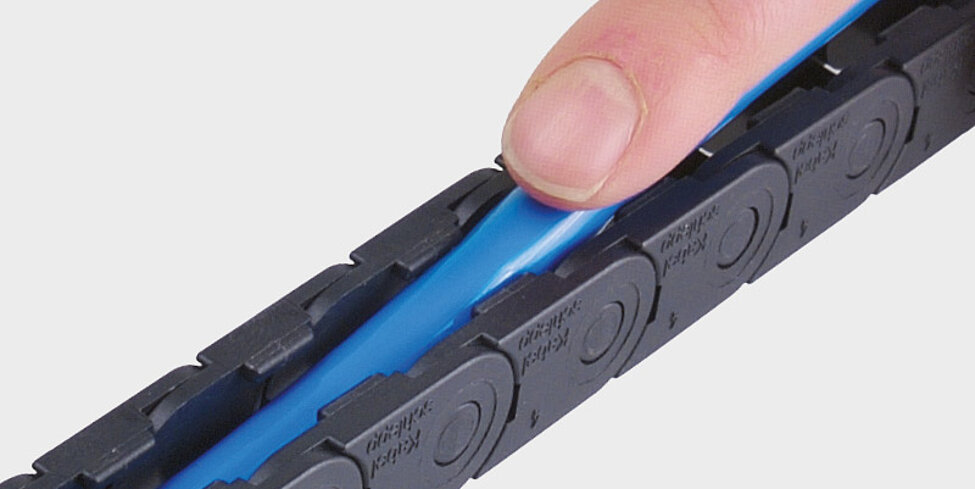

Fast cable laying – 0202 slotted version
The slotted variant of the MONO 0202 allows fast and easy pressing in of cables without opening the cable carrier. That saves time and therefore money. It is particularly suitable for cables with pre-assembled connectors. Please contact us!
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 18 | 51 | 61 | 97 | 45.5 |
| 28 | 71 | 81 | 128 | 55.5 |
| 38 | 91 | 101 | 160 | 65.5 |
| 50 | 115 | 125 | 198 | 77.5 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.18 kg/m with Bi 10 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 1.95 m
Additional load
up to 1.25 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 30 m/s2
Travel length
up to 70 m
Additional load
up to 1.25 kg/m
The gliding cable carrier must be guided in a channel.
