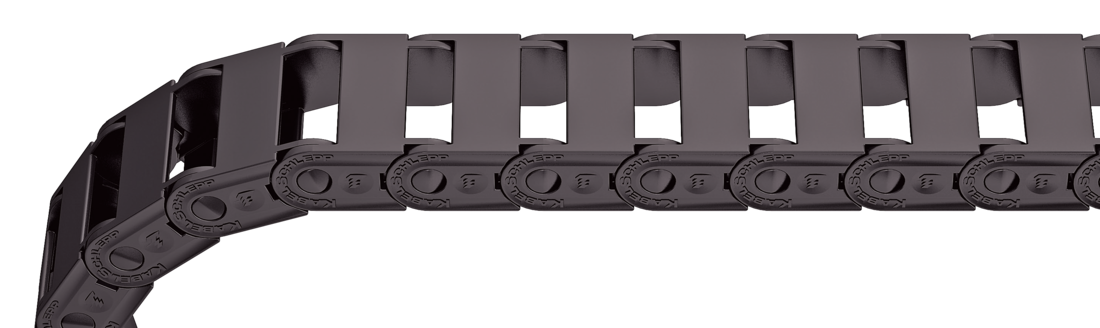

Weight optimised, closed plastic frame with high torsional rigidity.
Outside/inside: not openable.

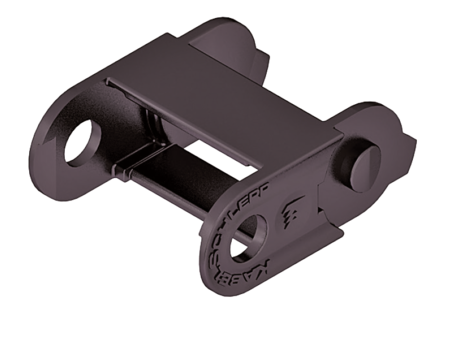

Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi
6 - 20
mm
Dimensions
Dimensions
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th>
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">20</td>
<td class="hi red">11</td>
<td class="hg">15</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<!-- Bk und BEF für alle Ketten -->
<td class="bk">Bi + 7</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="qk">0,14 – 0,17</td>
</tr>
</tbody>
</table>
Bi [mm]
6
10
15
20
KR [mm]
18
28
38
50
Order example
MONO
Series
•
0202
Type
•
10
Bi [mm]
•
28
KR [mm]
-
460
Lk [mm]
VS
Stay arrangement
End connectors
End connectors
Connection point F – fixed point M– driver
Connection type A – threaded joint outside (standard) I – threaded joint inside
