Guide channels

Reliable unrolling and optimum gliding for long travel lengths



Guide channels are important elements for the reliable functioning with long travel lengths. The upper run of the cable carrier slides on the lower run and on the sliding area of the guide channel behind the fixed point. Guide channels prevent the upper run from slipping off the lower run, ensuring quiet running with low wear. For vertical applications such as elevators or storage and retrieval systems, a vertical channel provides optimum guiding.



[Translate to United States:]

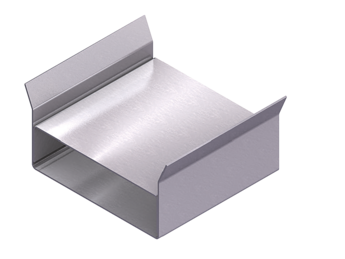

Standard channel
  • Simple version with customized fixing options.
  • Zinc plated sheet steel or stainless steel.
  • Standard lengths.
[Translate to United States:]

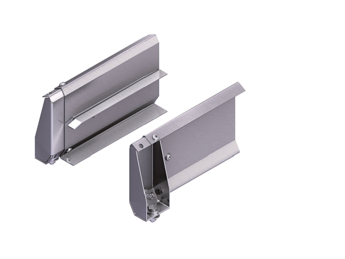

Steel Guide System (TKSG)
  • Modular system with optimized design for long travel lengths.
  • Zinc plated sheet steel or stainless steel.
  • Easy installation.
[Translate to United States:]

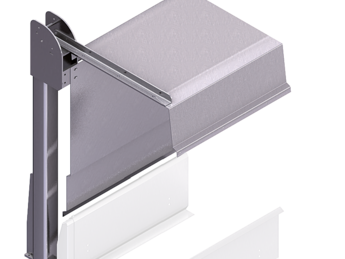

Channel Enclosure
  • Optimum protection against external influences.
  • Easy access for inspection.
  • Modular design.
[Translate to United States:]

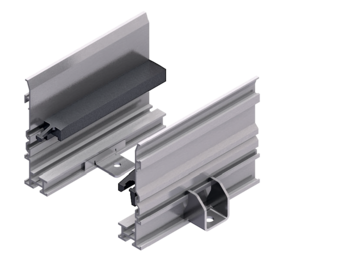

Alu Guide System (TKAL)
  • Modular system with many mounting options.
  • Standard lengths and sets.
  • Lightweight design for high speeds.
[Translate to United States:]

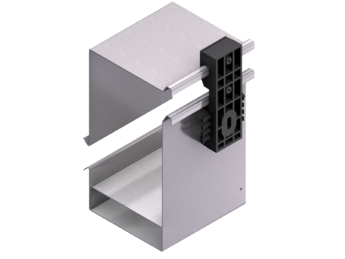

Easy Guide System (TKEG)
  • Flexible use in many areas of application.
  • Made of zinc plated sheet steel or stainless steel.
[Translate to United States:]

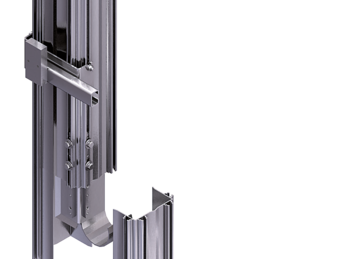

Vertical Guide System (TKVG)
  • Ready-to-install channel system made of aluminum.
  • Standardized module.
  • Easy installation.
  • For elevators, storage and retrieval systems and many other applications.
[Translate to United States:]

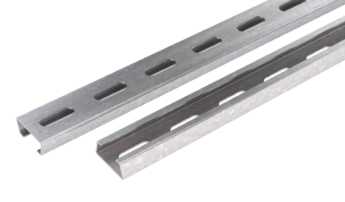

Assembly profiles
  • Assembly profiles with sloping sides can be used for all guide channels for fastening
  • Lengths in 50 mm grid possible

Installation Dimensions

One-sided arrangement – with lower driver connection and reverse bending radius (standard)

Calculating the channel length

Channel length LKA: LKA = LS + UB + L1

Calculating the connection height

Connection height H: H = 3 hG

Calculating the slide support length

Slide support length LKA': LKA' = LS / 2

One-sided arrangement – high connection

Calculating the channel length

Channel length LKA:  LKA = LS + UB + L1

Connection height high connection

Connection height H: H = 2 x KR + hG

Calculating the slide support length

Slide support length LKA': LKA' = LS / 2

Opposite arrangement – with lower driver connection and reverse bending radius (standard)

Calculating the channel length

Channel length LKA: LKA = LS + 2 UB + X

Calculating the connection height

Connection height H: H = 3 hG

Calculating the slide support length

Slide support length LKA': LKA' = X – 2 L1

Opposite arrangement – high connection

Calculating the channel length

Channel length LKA:  LKA = LS + 2 UB + X

Connection height high connection

Connection height H: H = 2 x KR + hG

Calculating the slide support length

Slide support length LKA': LKA' = X – 2 L1

Depending on the chain size, the inner channel width is 4-6 mm larger than the width of the guided cable carrier. Depending on the travel length, the connection height of the cable carrier must be reduced. Please contact us! We will be happy to calculate the suitable guide channel for your application.

The calculated channel and support lengths are rounded to a reasonable production or installation dimension of the section lengths. A possible travel reserve must be taken into account. Standard section lengths are specified for each channel design.

For different distances between the fixed points and drivers in your application please contact us.

The calculated channel and support lengths are rounded to a reasonable production or installation dimension of the section lengths. A possible travel reserve must be taken into account. Standard section lengths are specified for each channel design.

For different distances between the fixed points and drivers in your application please contact us.
