Vertical Guide System (TKVG)
Guide channels for vertical hanging applications
Properties
- Ready-to-install channel system made of aluminum.
- Standardized module.
- Easy installation.
- For elevators, storage and retrieval systems and many other applications.

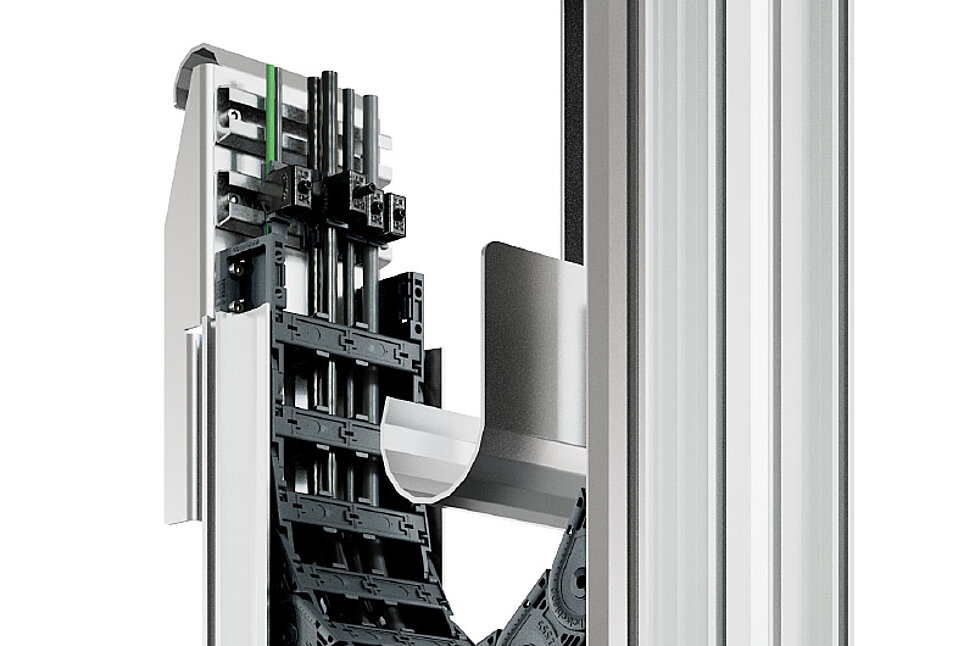

Aluminum channel system for UNIFLEX Advanced

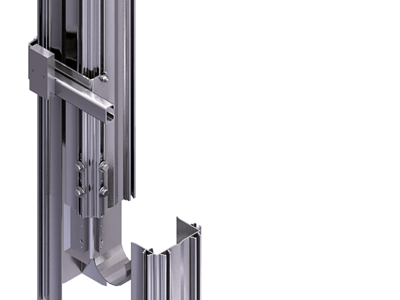

The ready-to-install channel system for vertical hanging applications from TSUBAKI KABELSCHLEPP is ideal for use in fast moving storage and retrieval systems with high lateral accelerations. Other typical fields of application are lifters, elevators, construction elevators, crane elevators or lifts. As a ready-to-connect complete system including driver, cables and strain reliefs, it is very easy to install. Standard parts result in short delivery times and a cost efficient solution. This allows energy and data to be transferred within one system reliably and without interruptions.
- Standardized for UNIFLEX Advanced 1555
- Available from 75 mm inner width and 125 mm bending radius
- Other series and types on request
- Suitable for extremely long travel lengths
- Fixed point offset possible
- Fixed point connection alternatively left or right
- Cable outlet on the driver alternatively towards the front or rear
- Standard lengths of the aluminum profile. Custom lengths also possible on request
- Mounting distance of the channel brackets flexibly adaptable
- Optional C-rails for assembly
- Attachment parts in galvanized steel or stainless steel

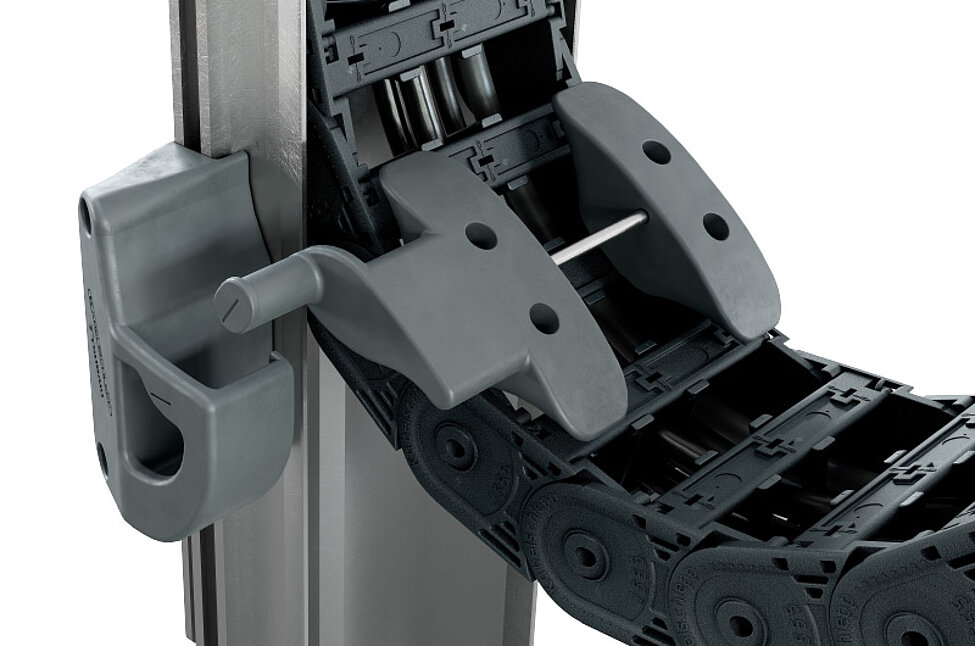

- Restraint system:
- Smart retrofitting for stacker cranes
- Wear reduction and longer service life
- Less noise emission and audibly quieter operation
- Stabilization of the energy chain at high accelerations
- Modular design with many connection options

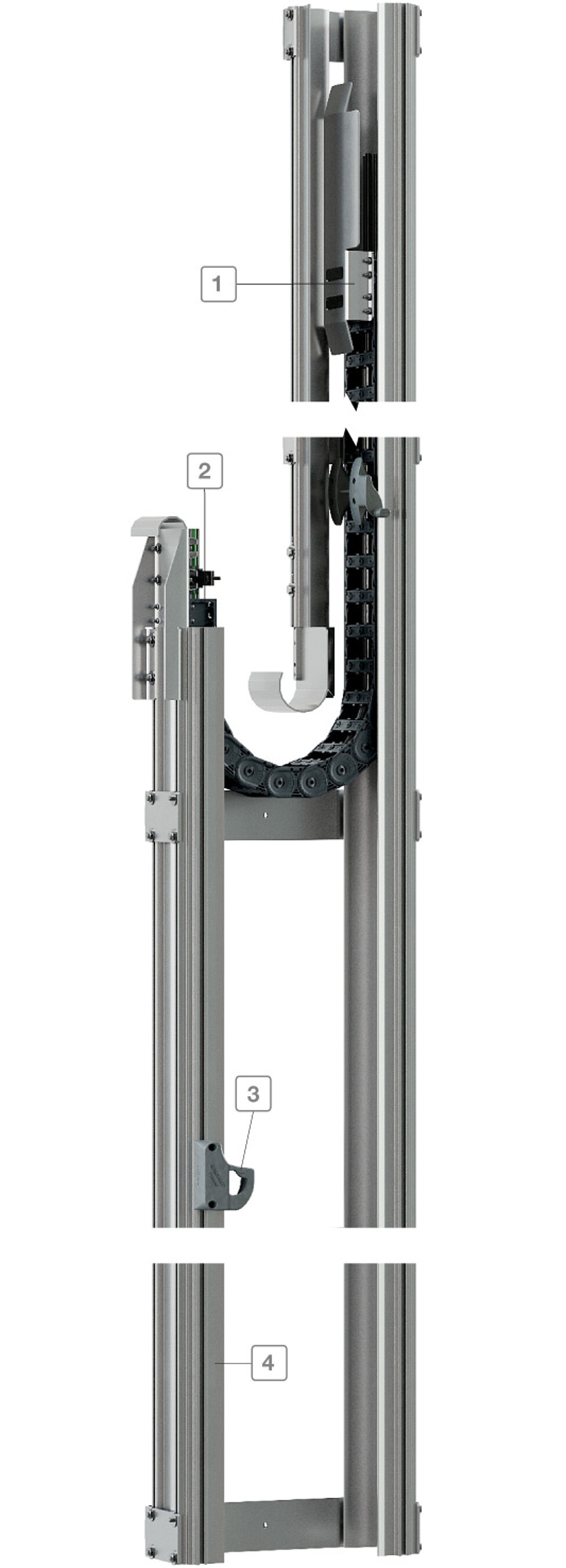

1 Driver
2 Fixed point
3 Rückhaltesytem
4 Channel side wall
