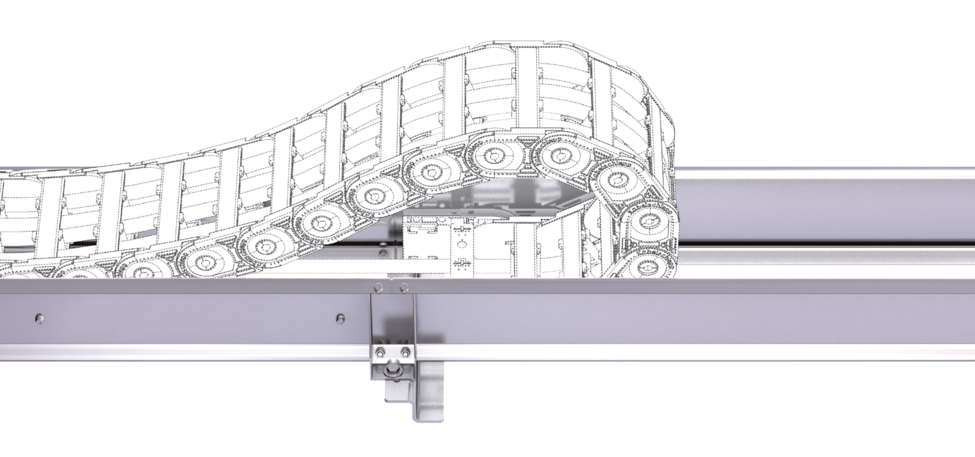

Steel Guide System (TKSG)

Guide channels in the modular system

Properties

  • Modular system with optimized design for long travel lengths.
  • Available in zinc plated sheet steel or stainless steel.
  • Easy installation.

Zinc plated sheet steel / stainless steel

Standard lengths 1000 / 2000 mm
Special lengths on request

Features

  • Especially suitable for cranes and applications with long travel lengths
  • Simple design for short installation times

  • No accumulation of dirt through open construction



  • Fast and easy installation thanks to pre-assembled sidebands and channel brackets
  • Complete system for screw-fitting
  • All components without welds

Versions

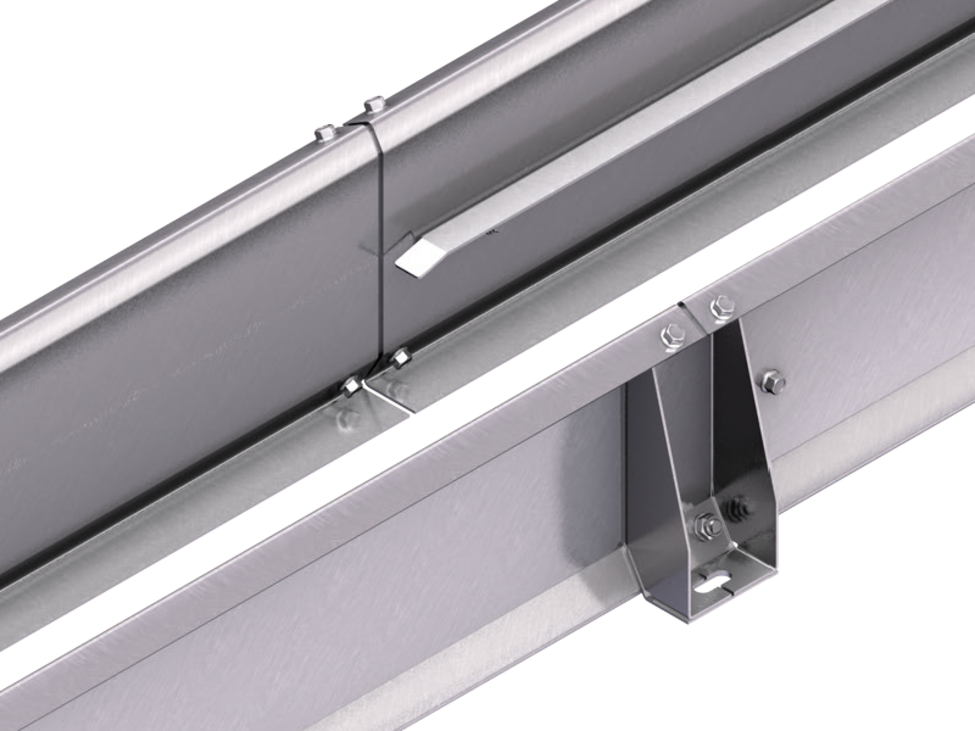

One-sided arrangement

For one-sided arrangement of the cable carrier, the cable carrier slides behind the fixed point on a continuous slide support with run-off bevels.

Open design

Channel profile with and without slide supports incl. run-on bevels.
Dirt and liquids can drop through without restrictions.

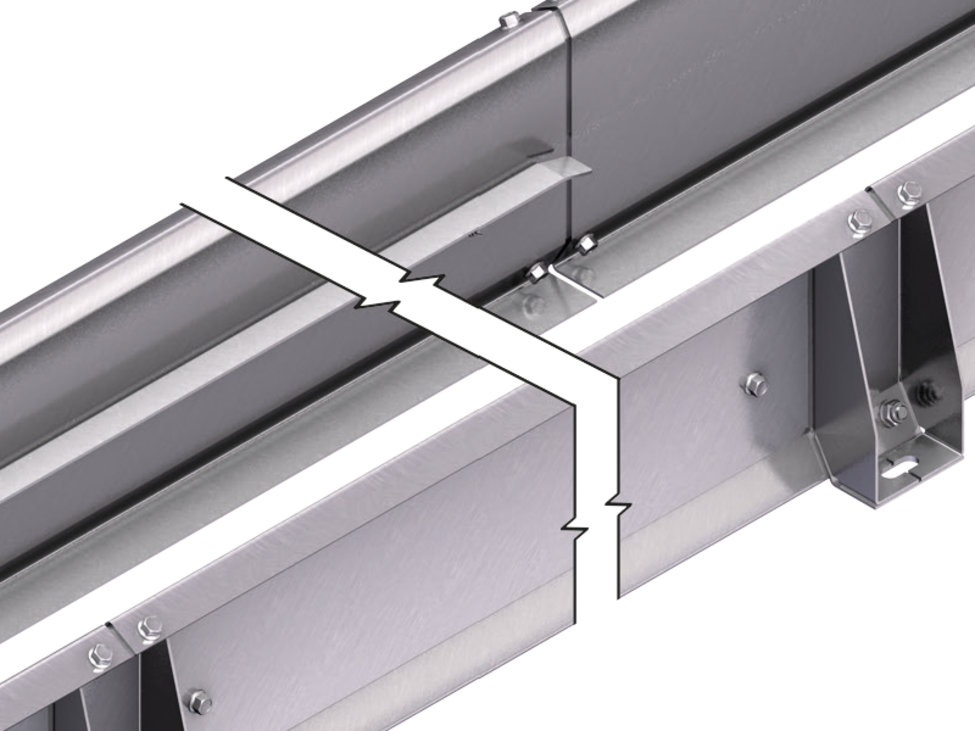

Opposite arrangement

For opposite arrangement, a slide support is also attached for bridging between the fixed point connections.

Open design

Channel profile with and without slide supports incl. run-on bevels.
Dirt and liquids can drop through without restrictions.

Dimensions

UNIFLEX Advanced series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
UA1555

Glide shoes

53

124

Bk + 9

BK + 139

2

b1 – 47 (FA)

-

25

6.4

24

b1 – 69

Glide shoes

53

124

Bk + 9

BK + 139

2

b1 – 21 (FU)

22.5

22.5

5.5

24

b1 – 69

UA1665

Glide shoes

63.5

124 (KR < 200)
176 (KR ≥ 200)

Bk + 10

BK + 140

2

b1 – 52 (FA)

-

30.5

8.4

24

b1 – 69
b1 – 66

Glide shoes

63.5

124 (KR < 200)
176 (KR ≥ 200)

Bk + 10

BK + 140

2

b1 – 19 (FU)

22.5

25

5.5

25

b1 – 69
b1 – 66

UA1775

Glide shoes

83.5

176 (KR < 200)
209 (KR ≥ 200)

Bk + 10

BK + 140

2

b1 – 52 (FA)

20

30

8.5

25

b1 – 66
b1 – 70

Glide shoes

83.5

176 (KR < 200)
209 (KR ≥ 200)

Bk + 10

BK + 140

2

b1 – 19 (FU)

20

30

8.5

25

b1 – 66
b1 – 70

UA1995

Glide shoes

116.5

258

Bk + 11

BK + 141

2

b1 – 28 (FU)

35

30

8.5

50

b1 – 100

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

The dimension A refers only to the connection holes.

M series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
M0650

Glide shoes

60.5

124 (KR < 200)
176 (KR ≥ 200)

Bk + 5

BK + 135

2

b1 – 55 (FAI)

30

25

6.4

24
25

b1 – 69
b1 – 66

Offroad Glide shoes

63.5

124 (KR < 200)
176 (KR ≥ 200)

Bk + 5

BK + 135

2

b1 – 24 (FU)

22.5

30.5

6.5

24
25

b1 – 69
b1 – 66

M0950

Glide shoes

83.5

176 (KR < 200)
209 (KR ≥ 200)

Bk + 5

BK + 135

2

b1 – 70 (FAI)

40

30

8.4

25

b1 – 66
b1 – 70

Offroad Glide shoes

86.5

176 (KR < 200)
209 (KR ≥ 200)

Bk + 5

BK + 135

2

b1 – 19.5 (FU)

35

34.5

8.5

25

b1 – 66
b1 – 70

M1250

Glide shoes

99.5

209 (KR < 300)
258 (KR ≥ 300)

Bk + 6

BK + 136

2

b1 – 83 (FAI)

50

35

10.5

50

b1 – 70
b1 – 90

Offroad Glide shoes

103

209 (KR < 300)
258 (KR ≥ 300)

Bk + 6

BK + 136

2

b1 – 23 (FU)

35

40.5

11

50

b1 – 70
b1 – 90

M1300

Glide shoes

127.5

258

Bk + 6

BK + 136

2

b1 – 27 (FU)

35

30

11

50

b1 – 90

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

The dimension A refers only to the connection holes.

TKHP series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
TKHP85

Glide shoes

90.5

209

Bk + 6

BK + 136

2

b1 – 100 (FAI)

80

25

12

35

b1 – 70

TKHP90

Glide shoes

127.5

258

Bk + 6

BK + 136

2

b1 – 96 (FAI)

40

25

12

50

b1 – 90

TKHP85-R + TKHP85-RSD

–

84

209

Bk + 6

BK + 136

2

b1 – 100 (FAI)

80

25

12

35

b1 – 70

TKHP90-R + TKHP90-RSD

–

117

258

Bk + 6

BK + 136

2

b1 – 96 (FAI)

40

25

12

50

b1 – 90

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

The dimension A refers only to the connection holes.

S/SX series | S/SX tubes

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
S/SX 0650

Glide shoes

56

124

Bk + 10

BK + 140

2

b1 – 47 (FAI)

45

25

6.4

24

b1 – 69

S/SX 0950

Glide shoes

73

176

Bk + 10

BK + 140

2

b1 – 77 (FAI)

65

30

8.4

27

b1 – 66

S/SX 1250

Offroad Glide shoes

103

209 (KR < 350)
258 (KR ≥ 350)

Bk + 12

BK + 142

2

b1 – 76 (FAI)

80

35

10.5

50

b1 – 100

S/SX 1800

Offroad Glide shoes

103

209 (KR < 350)
258 (KR ≥ 350)

Bk + 12

BK + 142

2

b1 – 76 (FAI)

80

35

10.5

50

b1 – 100

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

The dimension A refers only to the connection holes.

Fixing elements

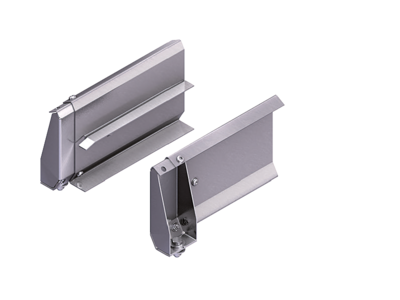

Fixing with channel brackets

The channel brackets are mounted at the joins, ensuring precise connection of the joins in addition to fixing the channel to the substructure.

  • Optimum alignment of the joins
  • Reduced installation times
  • No welds
  • Minimum number of screw connections
  • Reliable fixing under rough conditions
  • High stability
hKA
[in mm]		D1
[in mm]		s
[in mm]
123112
175112
208112
257112

The sheet metal thickness “s” corresponds to the respective wall thickness “s” of the channel.

As a standard, the channel brackets included with the delivery are installed on all joins as well as at both ends of a channel. If you require more channel brackets beyond this, please state this when ordering.

Calculating the c-profile length

C-profile length LP: LP = BKA + 50 mm

C-profile length LP rounded to 50 mm

Suitable perforated C-profiles can be found at Assembly profiles for guide channels.

Fixing kit (optional)

The delivery scope of the Steel Guide System (TKSG) does not include the optional joining clamp fixing kit.

Fixing kit
(1) C-rail (length depends on b1)
(2) T-head bolt M10
(3) Hex nut
(4) Washer

Order

To order the Steel Guide System (TKSG), please provide the following information:

  • Number of guide channels
  • Total length of channel
  • Support length LKA'
  • Ouer height of guide channel hKA
  • Inner width of guide channel b1
  • Material
  • Support height h1
  • Delivery (unmounted/mounted)
  • Fixing with or without C-profile
