Standard channel

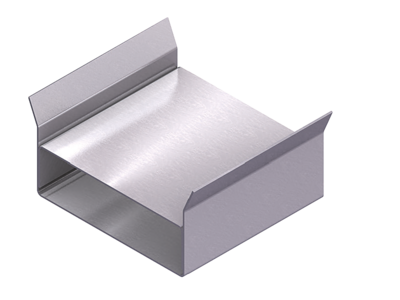

Sheet steel guide channels

Properties

  • Simple version with customized fixing options.
  • Zinc plated sheet steel or stainless steel.
  • Standard lengths.

Zinc plated sheet steel / stainless steel

Standard lengths 2000 / 3000 mm
Special lengths on request

Features

  • Universal installation – the channel side walls do not require aligning as there are no single side walls
  • Large support widths through sturdy U-design
  • Optionally available as a corrosion resistant, sea water resistant version
  • Easy fixing options:
    • standard angle brackets for screwing
    • welded on directly on site
    • different fixing variants

Individual solutions

We can also manufacture customized sheet steel guide channels for your application, taking into account virtually any request regarding customized shapes and fixing options.

Versions

One-sided arrangement

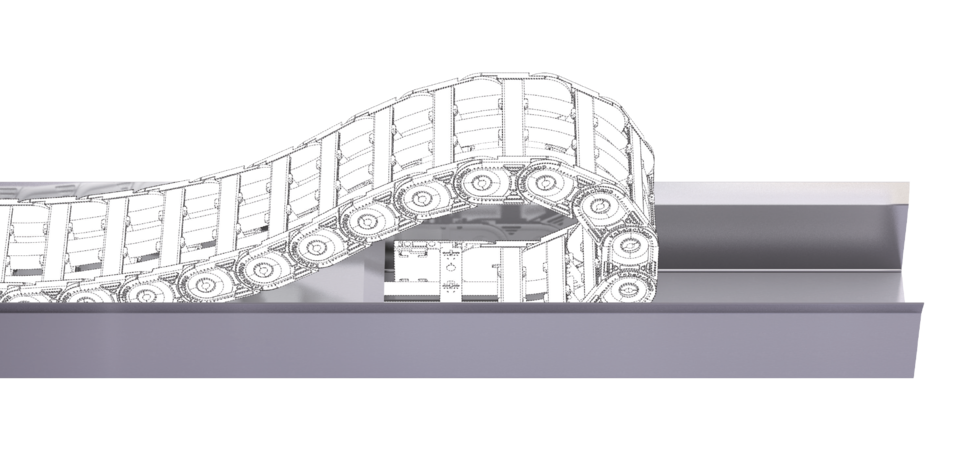

For one-sided arrangement of the cable carrier, the cable carrier slides behind the fixed point on a continuous slide support with run-on bevels.

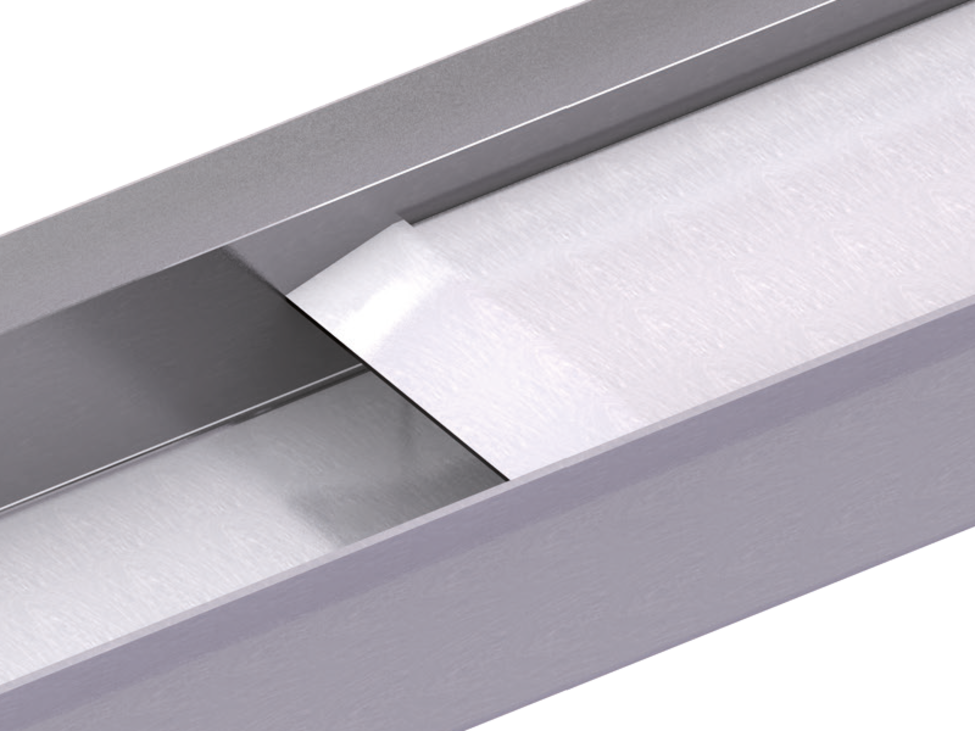

Closed design

One part channel closed at the bottom and one part slide support with run-on bevels.

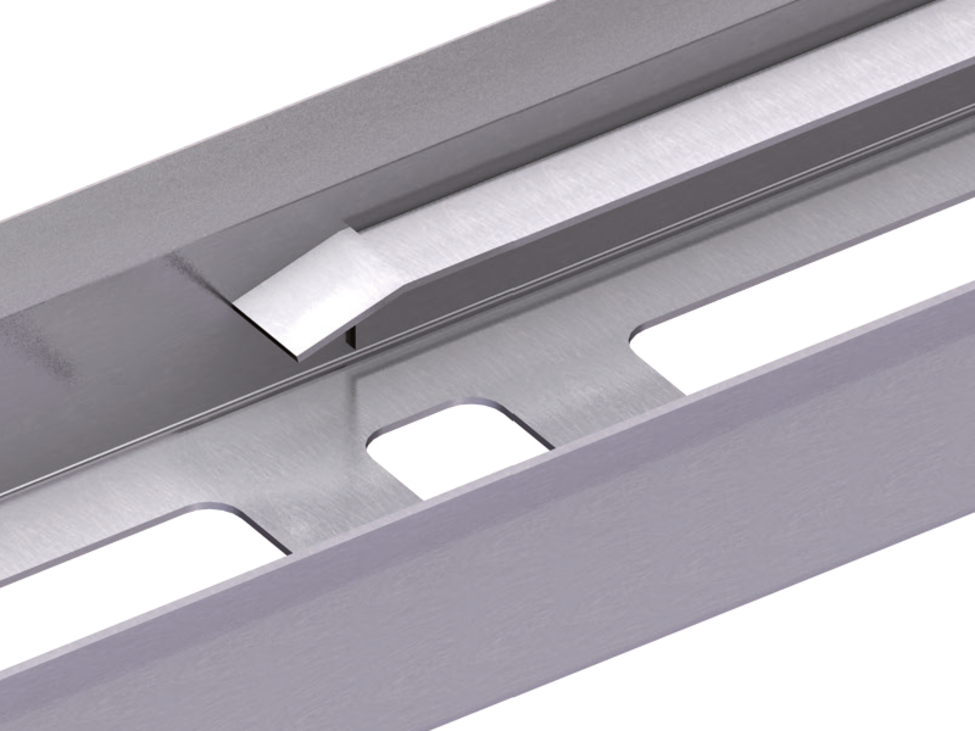

Open design

One part channel closed at the bottom and divided slide support with run-on bevels.
Dirt and liquids can drop through without restrictions.

Opposite arrangement

For opposite arrangement, a slide support is also attached for bridging between the fixed point connections.

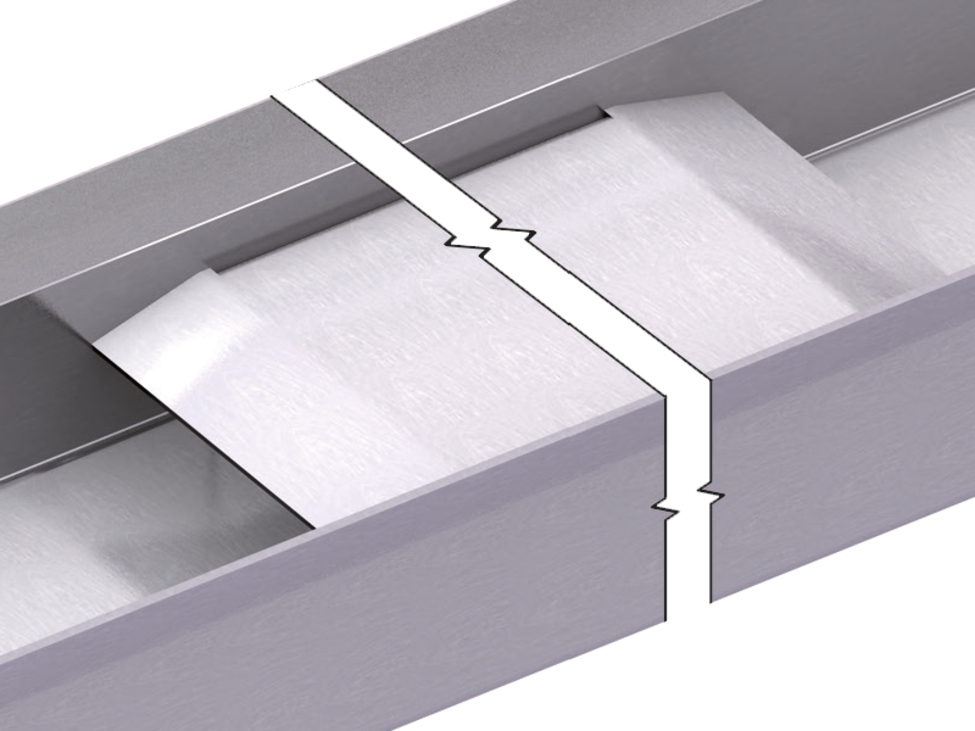

Closed design

One part channel closed at the bottom and one part slide support with run-on bevels.

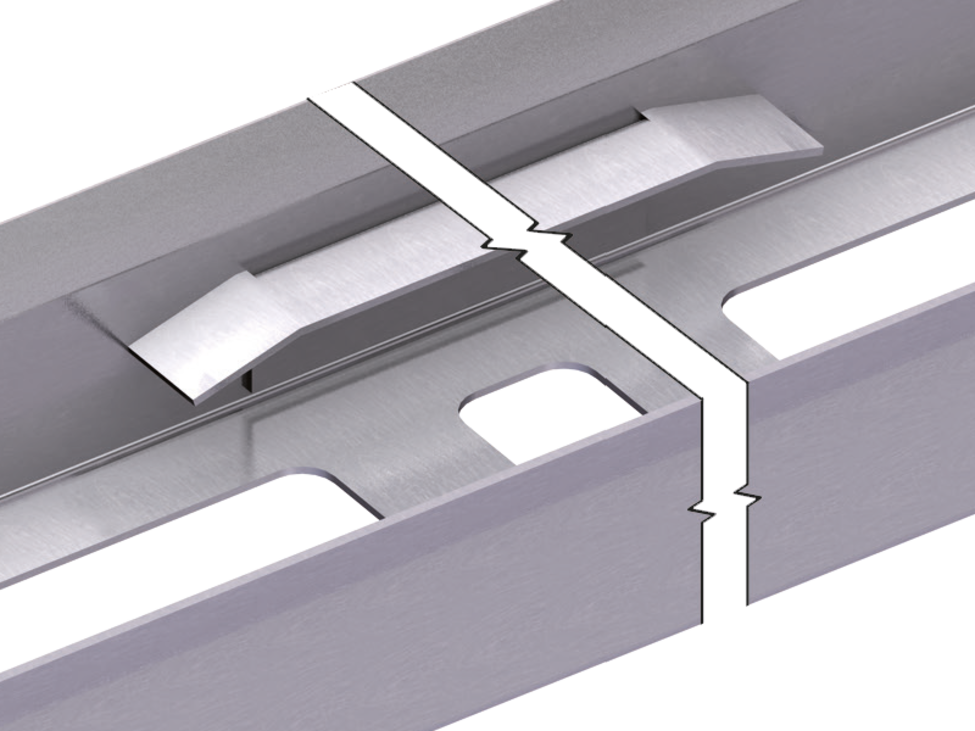

Open design

One part channel closed at the bottom and divided slide support with run-on bevels.
Dirt and liquids can drop through without restrictions.

A special slide support can be adhered to reduce sliding resistance and abrasion between cable carrier and support. We recommend the use of special slide supports for velocities > 0.5 m/s and for frequent move cycles.

Dimensions

From hKA ≥ 200 mm, the guide channel flanks are additionally stabilized with alignment flanges or with connecting flanges.

The dimension y refers only to open guide channel versions.

UNIFLEX Advanced series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T*
[mm]		Y**
[mm]
UA1455

–

36

70 (KR < 100)
125 (KR ≥ 100)

Bk + 4

BK +24

2

b1 – 34 (FA-A)

–

40

6.2

30

b1 – 65

–

36

70 (KR < 100)
125 (KR ≥ 100)

Bk + 4

BK + 24

2

b1 – 34.5 (FA-L)

–

40

6.2

30

b1 – 65

–

36

70 (KR < 100)
125 (KR ≥ 100)

Bk + 7

BK + 24

2

b1 – 13.5 (FU)

–

50

5.3

30

b1 – 40

Glide shoes

38.5

70 (KR < 100)
125 (KR ≥ 100)

Bk + 7

BK + 27

2

b1 – 37 (FA-A)

–

40

6.2

30

b1 – 65

Glide shoes

38.5

70 (KR < 100)
125 (KR ≥ 100)

Bk + 7

BK + 27

2

b1 – 37.5 (FA-L)

–

40

6.2

30

b1 – 65

Glide shoes

38.5

70 (KR < 100)
125 (KR ≥ 100)

Bk + 7

BK + 27

2

b1 – 16.5 (FU)

–

50

5.3

30

b1 – 40

UA1555

–

50

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 43 (FA)

–

50

6.5

30

b1 – 85

–

50

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 16 (FU)

22.5

50

5.3

30

b1 – 40

Glide shoes

53

117 (KR < 200)
200 (KR ≥ 200)

Bk + 9

BK + 29

2

b1 – 47 (FA)

–

50

6.5

30

b1 – 85

Glide shoes

53

117 (KR < 200)
200 (KR ≥ 200)

Bk + 9

BK + 29

2

b1 – 21 (FU)

22.5

50

5.3

30

b1 – 40

UA1665

–

60

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 47 (FA)

–

60

8.5

30

b1 – 85

–

60

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 14 (FU)

22.5

60

5.3

30

b1 – 40

Glide shoes

63

117 (KR < 200)
200 (KR ≥ 200)

Bk + 9

BK + 30

2

b1 – 52 (FA)

–

60

8.5

30

b1 – 85

Glide shoes

63

117 (KR < 200)
200 (KR ≥ 200)

Bk + 9

BK + 30

2

b1 – 19 (FU)

22.5

60

5.3

30

b1 – 40

UA1775

–

77

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 19.6 (FU)

20

60

8.5

30

b1 – 60

–

77

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 19.6 (FU)

20

60

8.5

30

b1 – 60

Glide shoes

81.5

150 (KR < 200)
300 (KR ≥ 200)

Bk + 10

BK + 30

2

b1 – 24.6 (FU)

20

60

8.5

30

b1 – 65

Glide shoes

81.5

150 (KR < 200)
300 (KR ≥ 200)

Bk +10

BK + 30

2

b1 – 24.6 (FU)

20

60

8.5

30

b1 – 65

UA1995

–

110

150 (KR < 200)
300 (KR ≥ 200)

Bk + 6

BK + 26

2

b1 – 28 (FU)

35

60

8.5

30

b1 – 60

–

110

150 (KR < 200)
300 (KR ≥ 200)

Bk +6

BK +2 6

2

b1 – 28 (FU)

35

60

8.5

30

b1 – 60

Glide shoes

116.5

150 (KR < 200)
300 (KR ≥ 200)

Bk + 11

BK + 31

2

b1 – 28 (FU)

35

60

8.5

30

b1 – 65

Glide shoes

116.5

150 (KR < 200)
300 (KR ≥ 200)

Bk +11

BK + 31

2

b1 – 28 (FU)

35

60

8.5

30

b1 – 65

The designations for dimension A refer to the version of the cable carrier connection.

* Dimension T for leg length support brackets (guiding channel open type for Bk ≥ 90 mm).
** Dimension Y for guiding channel open for Bk ≥ 90 mm).

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

TKK39 series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
TKK39

–

50

117

Bk + 5

BK +25

2

b1 – 43

24

40

5.2

30

b1 – 40

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

K series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
K0650

–

57.5

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK +25

2

b1 – 19 (FU)

40

30

6.5

30

b1 – 65

Slide discs

57.5

117 (KR < 200)
200 (KR ≥ 200)

Bk + 13

BK + 33

2

b1 – 27 (FA)

40

30

6.5

30

b1 – 65

Slide discs

57.5

117 (KR < 200)
200 (KR ≥ 200)

Bk + 13

BK + 33

2

b1 – 27 (FA)

40

30

6.5

30

b1 – 65

K0900

–

78.5

117 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK +25

2

b1 – 20.5 (FU)

50

30

6.5

30

b1 – 65

Slide discs

78.5

117 (KR < 200)
300 (KR ≥ 200)

Bk + 19

BK + 39

2

b1 – 34 (FA)

50

30

6.5

30

b1 – 75

Slide discs

78.5

117 (KR < 200)
300 (KR ≥ 200)

Bk + 19

BK + 39

2

b1 – 34.5 (FU)

50

30

6.5

30

b1 – 75

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

M series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
M0475

Glide shoes

41.5

70 (KR < 100)
125 (KR ≥ 100)

Bk + 4

BK + 24

2

b1 – 39 (FI)

24

30

6.5

30

b1 – 55

M0650

Glide shoes

60.6

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 55 (FAI)

30

30

6.5

30

b1 – 70

Glide shoes

60.6

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 24 (FU)

22.5

30

6.5

30

b1 – 70

Offroad Glide shoes

62.2

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 55 (FAI)

30

30

6.5

30

b1 – 65

Offroad Glide shoes

62.2

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 24 (FU)

22.5

30

6.5

30

b1 – 65

M0950

Glide shoes

83.5

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 70 (FAI)

40

30

8.5

30

b1 – 100

Glide shoes

83.5

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 19.5 (FU)

35

30

8.5

30

b1 – 60

Offroad Glide shoes

86

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 70 (FAI)

40

30

8.5

30

b1 – 100

Offroad Glide shoes

86

150 (KR < 200)
300 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 19.5 (FU)

35

30

8.5

30

b1 – 60

M1250

Glide shoes

99.5

200 (KR < 300)
400 (KR ≥ 300)

Bk + 6

BK + 26

3

b1 – 83 (FAI)

50

30

10.5

30

b1 – 125

Glide shoes

99.5

200 (KR < 300)
400 (KR ≥ 300)

Bk + 6

BK + 26

3

b1 – 23 (FU)

35

30

11

30

b1 – 65

Offroad Glide shoes

103

200 (KR < 300)
400 (KR ≥ 300)

Bk + 6

BK + 26

3

b1 – 83 (FAI)

50

30

10.5

30

b1 – 125

Offroad Glide shoes

103

200 (KR < 300)
400 (KR ≥ 300)

Bk + 6

BK + 26

3

b1 – 23 (FU)

35

30

11

30

b1 – 65

M1300

–

120

250 (KR < 320)
400 (KR ≥ 320)

Bk + 6

BK + 26

3

b1 – 27 (FU)

35

30

11

40

b1 – 75

Glide shoes

127

250 (KR < 320)
400 (KR ≥ 320)

Bk + 6

BK + 26

3

b1 – 27 (FU)

35

30

11

40

b1 – 75

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

TKHP series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
TKHP85

Glide shoes

90.5

200 (KR < 350)
400 (KR ≥ 350)

Bk + 6

BK + 26

2

b1 – 100 (FAI)

80

45

12

40

b1 – 80

TKHP85-R + TKHP85-RSD

–

–

200 (KR < 350)
400 (KR ≥ 350)

Bk + 6

BK + 26

2

b1 – 100 (FAI)

80

45

12

40

b1 – 80

TKHP90-R + RKHP90-RSD

–

–

200 (KR < 310)
400 (KR ≥ 310)

Bk + 6

BK + 26

2

b1 – 96 (FAI)

40

40

12

65

b1 – 65

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

XL | XLT series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
XL1650

–

140

300 (KR < 350)
400 (KR ≥ 350)

Bk + 6

BK + 26

3

b1 – 99 (FAI)

50

40

13.5

40

b1 – 130

Glide shoes

147

300 (KR < 350)
400 (KR ≥ 350)

Bk + 6

BK + 26

3

b1 – 99 (FAI)

50

40

13.5

40

b1 – 130

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

QUANTUM® series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
Q040

–

40

70 (KR < 110)
125 (KR ≥ 110)

Bk + 4

BK + 24

2

b1 – 18 (FU)

14

30

6.6

40

b1 – 35

Q060

Glide shoes

66

117 (KR < 190)
200 (KR ≥ 190)

Bk + 9

BK + 29

2

b1 – 29 (FU)

29

30

6.6

40

b1 – 45

Q080

Glide shoes

88

150 (KR < 200)
300 (KR ≥ 200)

Bk + 13

BK + 33

2

b1 – 38 (FU)

35

40

9

40

b1 – 70

Q100

Glide shoes

108

250 (KR < 300)
400 (KR ≥ 300)

Bk + 13

BK + 33

2

b1 – 43 (FU)

35

40

11

40

b1 – 105

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

TKA series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
TKA30

–

29.15

70 (KR < 95)
125 (KR ≥ 95)

Bk + 4

BK + 24

2

b1 – 31 (FU)

–

50

6.5

–

–

TKA38

–

36.75

70 (KR < 95)
125 (KR ≥ 95)

Bk + 4

BK + 24

2

b1 – 10.5 (FU)

–

50

4.5

25

b1 – 55

TKA45

–

51

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 28

2

b1 – 12 (FU)

15

50

5.5

25

b1 – 60

TKA55

–

65

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 28

2

b1 – 16 (FU)

15

60

5.5

25

b1 – 75

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

UAT series

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
UAT1555

–

69

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 15 (FU)

25

40

5.5

30

b1 – 80

–

69

117 (KR < 200)
200 (KR ≥ 200)

Bk + 5

BK + 25

2

b1 – 15 (FU)

40

40

5.5

30

b1 – 80

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

S/SX series | S/SX tubes

Typeh1
[mm]		hKA
[mm]		b1
[mm]		BKA
[mm]		s
[mm]		A
[mm]		B
[mm]		C
[mm]		D
[mm]		T
[mm]		Y
[mm]
S/SX 0650

Glide shoes

56

125 (KR < 155)
200 (KR ≥ 155)

Bk + 10

BK + 30

2

b1 – 47

45

15

6.4

30

b1 – 70

S/SX 0950

Glide shoes

73

150 (KR < 200)
300 (KR ≥ 200)

Bk + 14

BK + 34

2

b1 – 77

65

20

8.4

30

b1 – 100

S/SX 1250

Glide shoes

99

200 (KR < 300)
400 (KR ≥ 300)

Bk + 12

BK + 32

3

b1 – 76

80

25

10.5

30

b1 – 100

Offroad Glide shoes

104

200 (KR < 300)
400 (KR ≥ 300)

Bk + 12

BK + 32

3

b1 – 76

80

25

10.5

50

b1 – 100

S/SX 1800

Glide shoes

155

300 (KR < 435)
500 (KR ≥ 435)

Bk + 17

BK + 37

3

b1 – 94

115

30

13

50

b1 – 120

The designations for dimension A refer to the version of the cable carrier connection.

The cable carrier outer width without attachments Bk is taken into account for calculating the inner width of guide channel b1 and the overall width BKA.

Fixing Elements

Standard fixing with angle brackets (standard)

The angle brackets are mounted at the joins, ensuring precise connection of the joint areas in addition to fixing the channel to the substructure.

  • Optimum alignment of the joins
  • Reduced installation times
  • Minimum number of screw connections
  • Reliable fixing, even under rough conditions

The figure shows an open channel version

Calculating the c-profile length

C-profile length LP: LP = b1 + 106

C-profile length LP rounded to 50 mm

Suitable perforated C-profiles can be found at Assembly profiles for guide channels.

s
[in mm]		b2
[in mm]		X1
[in mm]
2b1 + 54104
3b1 + 56106

The sheet metal thickness “s” corresponds to the respective wall thickness “s” of the channel

As a standard, the angle brackets included with the delivery are installed on all joins as well as at both ends of a channel. If you require more angle brackets beyond this, please state this when ordering.

Fixing kit (optional)

The delivery scope of the standard channel does not include the optional joining clamp fixing kit.

Fixing kit
(1) C-rail (length depends on b1)
(2) Hexagon socket screws
(3) Slide nut

The length of the C-rail depends on the channel width and is supplied in standard lengths. Please contact us if you require custom lengths.

Fixing with alignment flanges and floor fixing plate

The fixing tabs are mounted at the joins, ensuring precise connection of the joint areas in addition to fixing the channel to the substructure.

  • Optimum alignment of the joins
  • Reduced installation times
  • Minimum number of screw connections
  • Push-to-connect system

C-Profile length LP

LP = b1 + 105

C-profile length LP rounded to 50 mm

Fixing with floor fixing bracket

The floor fixing brackets are mounted at the joins, ensuring precise connection of the joint areas in addition to fixing the channel to the substructure.

  • Easy alignment of the joins
  • Reduced installation times
  • Minimized number of screw connections

C-Profile length LP

LP = b1 + 66

C-profile length LP rounded to 50 mm

Fixing with lateral connecting flange

The unsupported connecting flanges are mounted at the joins, ensuring precise connection of the joint areas in addition to fixing the channel to the substructure.

  • Unsupported joins without support (self supporting) through flange connections
  • Reliable, secure connection even with extreme vibrations or in unsupported channel arrangements

Order

Standard channel

To order the standard channel, please provide the following information:

  • Number of guide channels
  • Material
  • Version of guide channel
  • Part length
  • Total length of channel
  • Slide support length LKA'
  • Floor fixing
  • Join connection
  • Slide support height h1
  • Outer height of guide channel hKA
  • Inner width of guide channel b1
