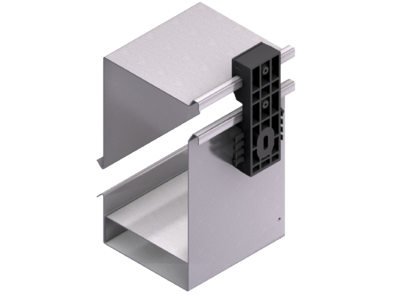

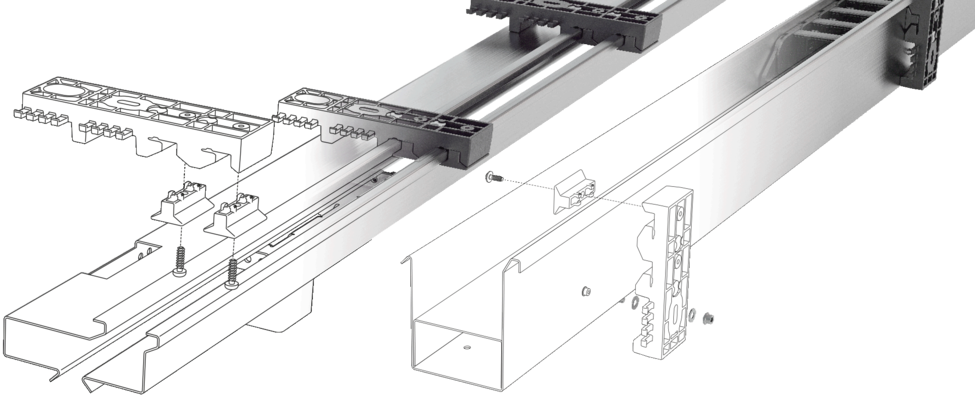

Easy Guide System (TKEG)

Properties

Flexible use in many areas of application.
Made of zinc plated sheet steel or stainless steel.
Easy and fast horizontal or vertical arrangement.
On its side laying installation possible.

Zinc plated sheet steel or stainless steel

Standard lengths 2000 mm
Special lengths on request

Features

Space-saving design
Installation possible horizontal or laying on its side
Easy and fast assembly by only one fitter
Saves additional cable channels through installation of permanent cables directly on the holder (securely behind the channel)
System remains horizontally adjustable after installation
Mounting holes for the cable carriers and cable ducts every 850 mm
Brackets are installed with screws or weld studs
No complex steel structure necessary
Suitable for all I-beams and box beams
The same mounting brackets for different trough sizes/chain types
Can be installed “flying”
Closed design
- Guiding for suspended chains
- Allows operation of the cable carrier laying on its side
- Mechanical protection
- Protection against lateral acceleration
- Protection against the cable carrier “banging” during acceleration and deceleration

Our engineers will be happy to help with your project planning – please contact us.

With magnets as mounting aids for easy positioning of the holder and placing of the fastenings such as drilled holes or welded studs.

One-sided arrangement with central feed

For single-sided arrangement of the cable carrier with central feed, the cable carrier slides behind the fixed point on a continuous slide plate.

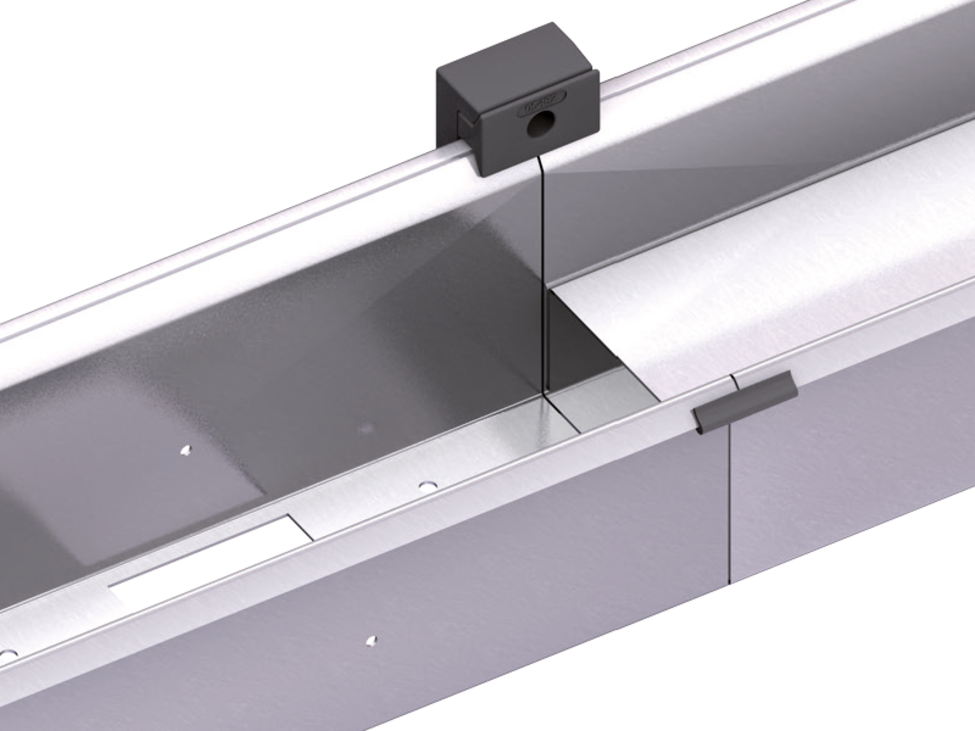

Closed design – standing without enclosure (Variant A)

One-part channel in version with open top and one-part slide plate.

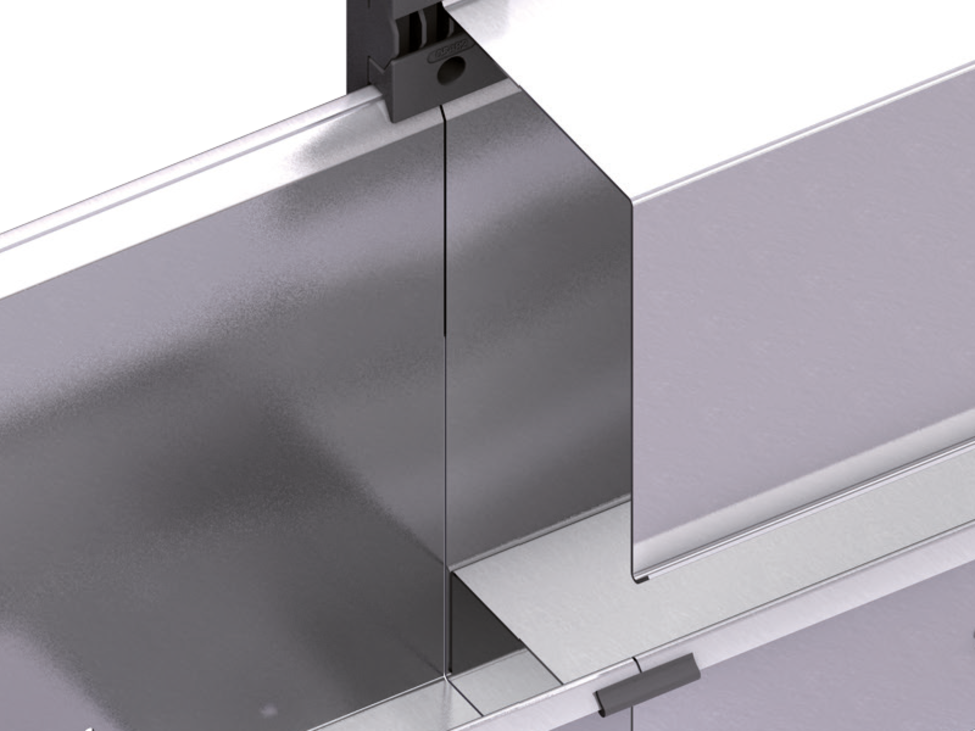

Closed design – standing with enclosure (Version B)

One-part channel in version with closed top (enclosure) and one-part slide plate.

For central feed, permanent cables can be placed directly on the holder (securely behind the channel)

One-sided arrangement with end feed

For single-sided arrangement of the cable carrier with end feed, the cable carrier slides behind the fixed point on itself.

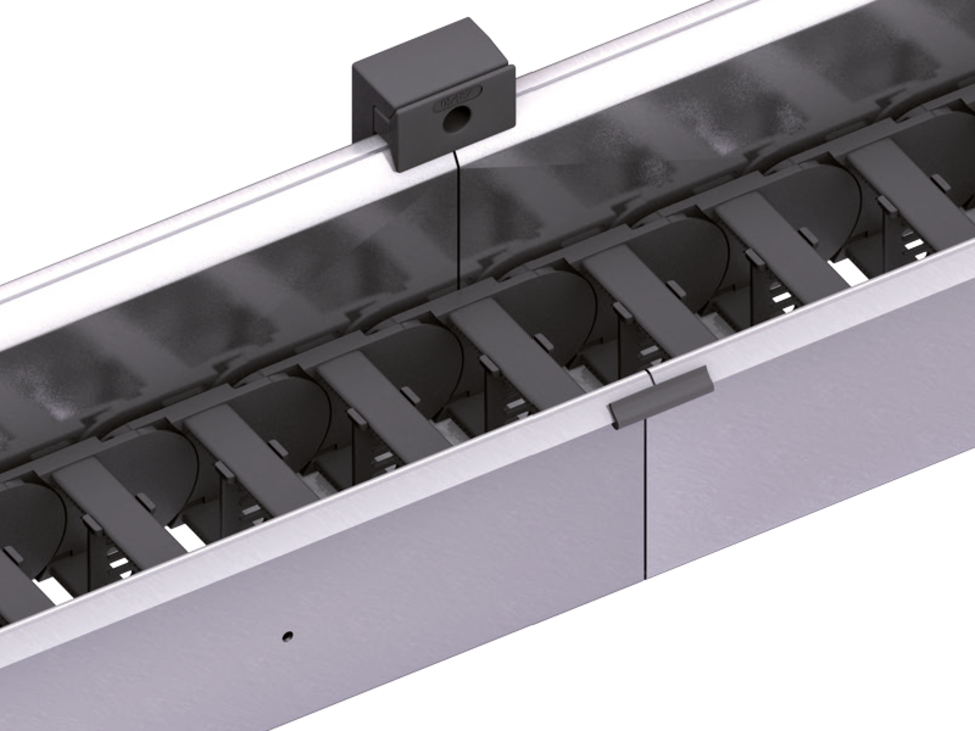

Closed design – standing without enclosure (Variant A)

One-part channel in version with open top and one-part slide plate.

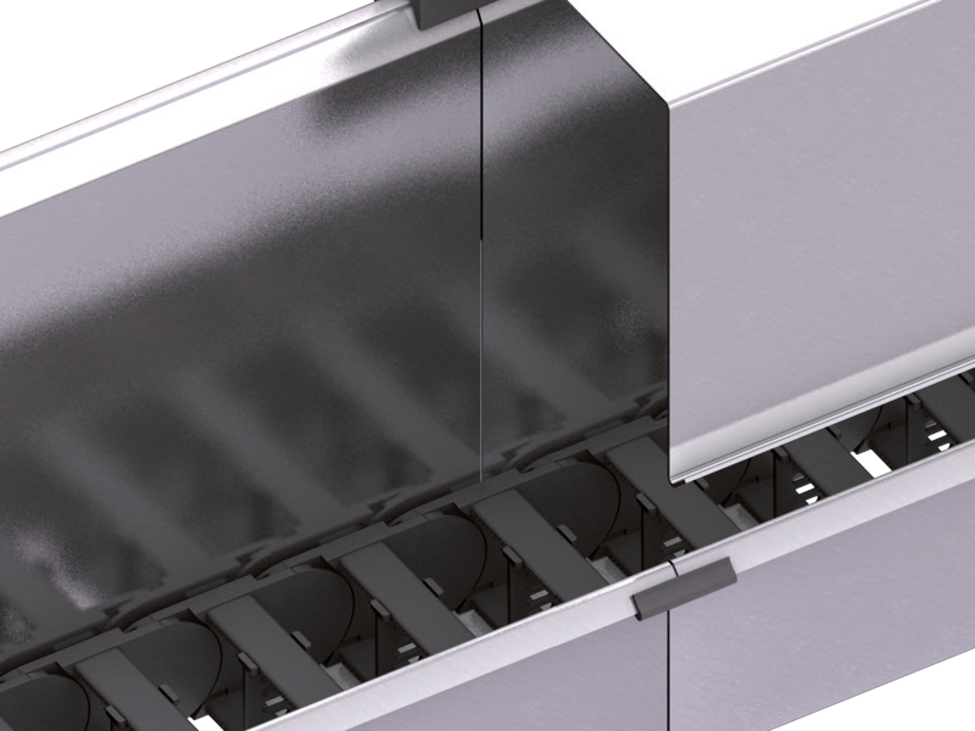

Closed design – standing with enclosure (Variant B)

One-part channel in version with closed top (enclosure) and one-part slide plate.

Opposite arrangement

For opposite arrangement, a slide support is also attached for bridging between the fixed point connections.

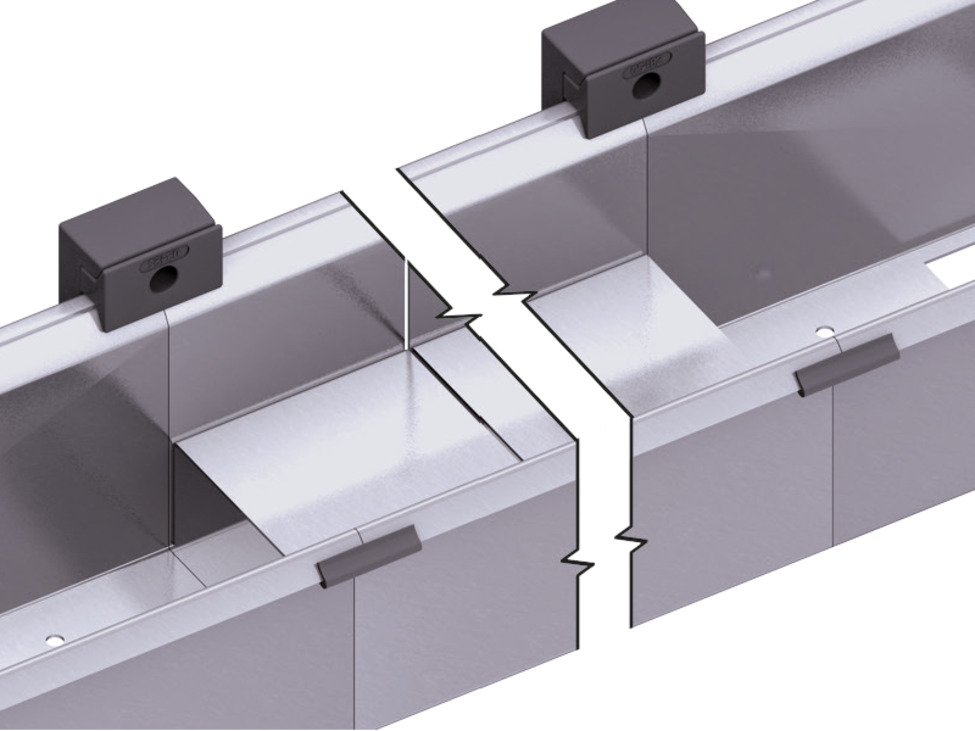

Closed design – standing without enclosure (Variant A)

One-part channel in version with open top and one-part slide plate.

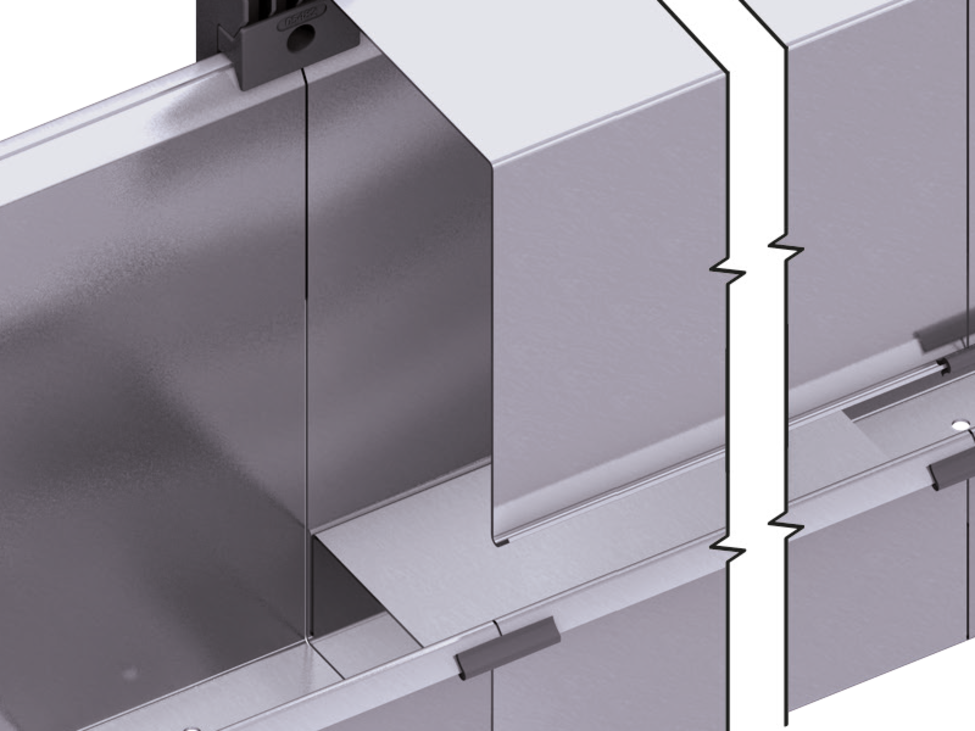

Closed design – standing with enclosure (Variant B)

One-part channel in version with closed top (enclosure) and one-part slide plate.

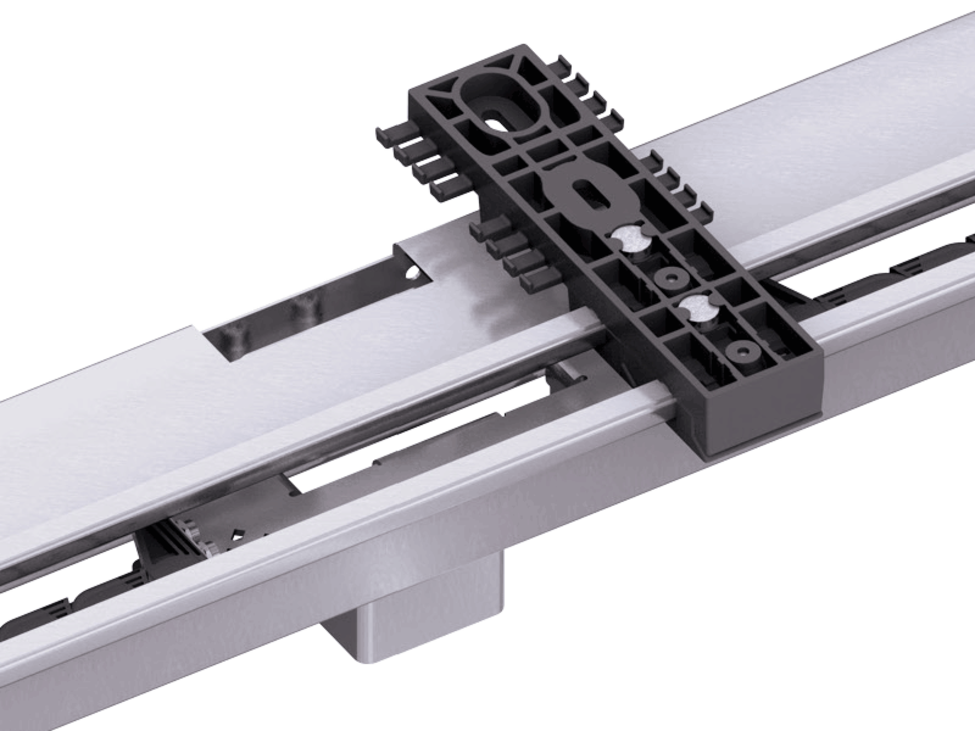

Closed design – laying on its side with enclosure (Variant C)

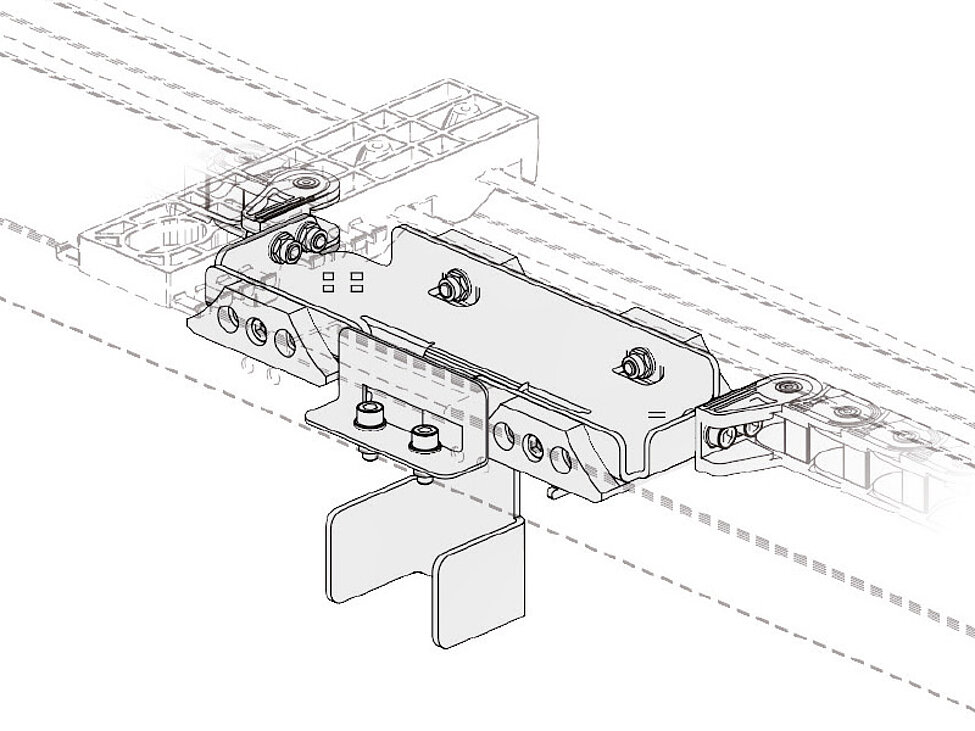

One-part channel laying on its side in enclosed version (enclosure) incl. driver sledge.

Dimensions | standing without enclosure (Variant A)

1 Guide channel
2 Stable gliding support made of zinc plated sheet steel or stainless steel
3 Holder

Slide support height

h₁ = h_G

QuickTrax® series

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	C₁ [mm]	E [mm]	F [mm]	G [mm]	Y [mm]
QT0320 with channel holder 202
25	75	25.5	54	202	42	90.7	10	79	140	14	129	40	39	27
50	100	25.5	54	202	67	115.7	35	79	140	14	129	40	39	52
QT0320 with channel holder 155
25	75	25.5	54	156.5	42	90.7	10	79	140	14	129	40	39	27
50	100	25.5	54	156.5	67	115.7	35	79	140	14	129	40	39	52

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

EasyTrax® series

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	C₁ [mm]	E [mm]	F [mm]	G [mm]	Y [mm]
ET0320 with channel holder 202
25	75	25.5	54	202	42	90.7	10	79	140	14	129	40	39	27
50	100	25.5	54	202	67	115.7	35	79	140	14	129	40	39	52
ET0320 with channel holder 155
25	75	25.5	54	156.5	42	90.7	10	79	140	14	129	40	39	27
50	100	25.5	54	156.5	67	115.7	35	79	140	14	129	40	39	52

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

Dimensions | standing without enclosure (Variant A)

1 Guide channel
2 Stable gliding support made of zinc plated sheet steel or stainless steel
3 Holder

Slide support height

h₁ = h_G

UNIFLEX Advanced series

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	Y [mm]
UA1455 with channel holder 202
58	125	36	100	202	79	127.7	43.5	73	152	123	52	39	64
78	125	36	100	202	99	147.7	63.5	73	152	123	52	39	84
103	125	36	100	202	124	172.7	88.5	73	152	123	52	39	109
UA1455 with channel holder 155
58	125	36	100	156.5	79	127.7	43.5	73	152	123	52	39	64
78	125	36	100	156.5	99	147.7	63.5	73	152	123	52	39	84
103	125	36	100	156.5	124	172.7	88.5	73	152	123	52	39	109
UA1555 with channel holder 155
50	125	50	115	202	73	121.7	30	61	176	111	76	39	58
75	125	50	115	202	98	146.7	55	61	176	111	76	39	83
100	125	50	115	202	123	171.7	80	61	176	111	76	39	108
UA1555 with channel holder 155
50	125	50	115	156.5	73	121.7	30	61	176	111	76	39	58
75	125	50	115	156.5	98	146.7	55	61	176	111	76	39	83
100	125	50	115	156.5	123	171.7	80	61	176	111	76	39	108

Standard version of the cable carrier in the Easy Guide System without glide shoes.

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

Our engineers will be happy to help with your project planning – please contact us.

Dimensions | Ground holder (Variant A)

Dimensions | Ceiling holder (Variant A)

Dimensions | standing with enclosure (Variant B)

1 Guide channel
2 Stable gliding support made of zinc plated sheet steel or stainless steel
3 Holder
4 Enclosure

Slide support height

h₁ = h_G

QuickTrax® series

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	C₁ [mm]	E [mm]	F [mm]	G [mm]	I [mm]	Y [mm]
QT0320 with channel holder 202
25	100	25.5	236.5	269.5	42	90.7	10	79	140	14	129	40	152	54	27
50	100	25.5	236.5	269.5	67	115.7	35	79	140	14	129	40	152	54	52
QT0320 with channel holder 155
25	100	25.5	236.5	269.5	42	90.7	10	79	140	14	129	40	152	54	27
50	100	25.5	236.5	269.5	67	115.7	35	79	140	14	129	40	152	54	52

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	C₁ [mm]	E [mm]	F [mm]	G [mm]	I [mm]	Y [mm]
ET0320 with channel holder 202
25	100	25.5	236.5	269.5	42	90.7	10	79	140	14	129	40	152	54	27
50	100	25.5	236.5	269.5	67	115.7	35	79	140	14	129	40	152	54	52
ET0320 with channel holder 155
25	100	25.5	236.5	269.5	42	90.7	10	79	140	14	129	40	152	54	27
50	100	25.5	236.5	269.5	67	115.7	35	79	140	14	129	40	152	54	52

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

Dimensions | standing with enclosure (Variant B)

1 Guide channel
2 Stable gliding support made of zinc plated sheet steel or stainless steel
3 Holder
4 Enclosure

Slide support height

h₁ = h_G

UNIFLEX Advanced series

B_i [mm]	KR [mm]	h₁ [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	E [mm]	F [mm]	G [mm]	I [mm]	Y [mm]
UA1455 with channel holder 202
58	125	36	297	330	79	127.7	43.5	73	152	123	52	212.5	100	64
78	125	36	297	330	99	147.7	63.5	73	152	123	52	212.5	100	84
103	125	36	297	330	124	172.7	88.5	73	152	123	52	212.5	100	109
UA1455 with channel holder 155
58	125	36	297	330	79	127.7	43.5	73	152	123	52	212.5	100	64
78	125	36	297	330	99	147.7	63.5	73	152	123	52	212.5	100	84
103	125	36	297	330	124	172.7	88.5	73	152	123	52	212.5	100	109
UA1555 with channel holder 202
50	125	50	311	344	73	121.7	30	61	176	121	76	226.5	115	58
75	125	50	311	344	98	146.7	55	61	176	121	76	226.5	115	83
100	125	50	311	344	123	171.7	80	61	176	121	76	226.5	115	108
UA1555 with channel holder 155
50	125	50	311	344	73	121.7	30	61	176	121	76	226.5	115	58
75	125	50	311	344	98	146.7	55	61	176	121	76	226.5	115	83
100	125	50	311	344	123	171.7	80	61	176	121	76	226.5	115	108

Standard version of the cable carrier in the Easy Guide System without glide shoes.

The cable carrier outer width without attachments B_k is taken into account for calculating the inner width of guide channel b₁ and the overall width B_KA.

Our engineers will be happy to help with your project planning – please contact us.

Dimensions | Ground holder (Variant B)

Dimensions | Ceiling holder (Variant B)

Dimensions | laying on its side (Variant C)

QuickTrax® series | UNIFLEX Advanced series

B_i [mm]	KR [mm]	h_KA [mm]	Total height channel [mm]	b₁ [mm]	B_KA [mm]	A [mm]	B [mm]	C [mm]	C₁ [mm]	G [mm]	I [mm]
QT0320 \| UA1320 with channel holder 202
15	48	132.5	202	32	80.7	–	85	128	14	37.5	54
25	48	132.5	202	42	90.7	10	85	128	14	37.5	54
50	48	132.5	202	67	115.7	35.5	85	128	14	37.5	54
QT0320 \| UA1320 with channel holder 155
15	48	132.5	165.5	32	80.7	–	85	128	14	84.5	54
25	48	132.5	165.5	42	90.7	10	85	128	14	84.5	54
50	48	132.5	165.5	67	115.7	35.5	85	128	14	84.5	54
