Q060
Q060
Pitch
20 mm
20 mm
Inner heights
38 - 42 mm
38 - 42 mm
Inner widths
38 - 500 mm
38 - 500 mm
Bending radii
100 - 300 mm
100 - 300 mm
Stay Variants
Q060 RS
more details
Q060 RE
more details
Stay Variants

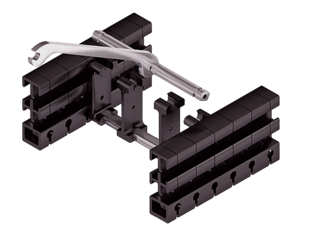

Q060 RS
Frame stay, narrow “The standard”
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.

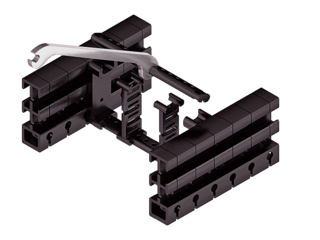

Q060 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 100 | 288 | 554 | 264 |
| 120 | 328 | 617 | 284 |
| 150 | 388 | 711 | 314 |
| 190 | 468 | 837 | 354 |
| 250 | 588 | 1025 | 414 |
| 300 | 688 | 1182 | 464 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.5 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 30 m/s
Acceleration
up to 160 m/s2
Travel length
up to 5 m
Additional load
up to 5 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 2 - 3 m/s2
Travel length
up to 50 m
Additional load
up to 5 kg/m
The gliding cable carrier has to be routed in a channel.
Glide shoes have to be used for gliding applications.
