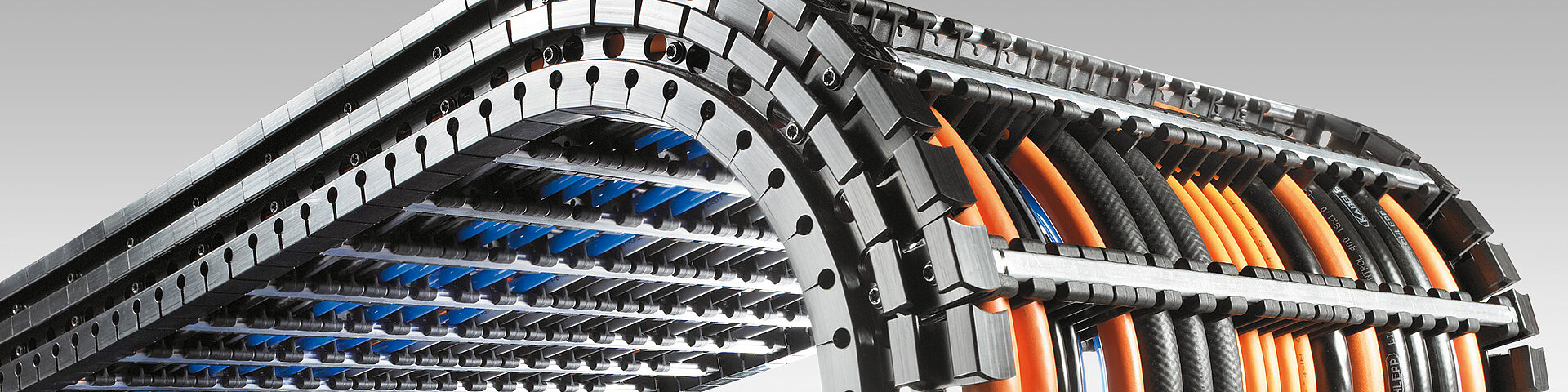

QUANTUM® series
Light, extremely quiet and low-vibration for high speeds and accelerations

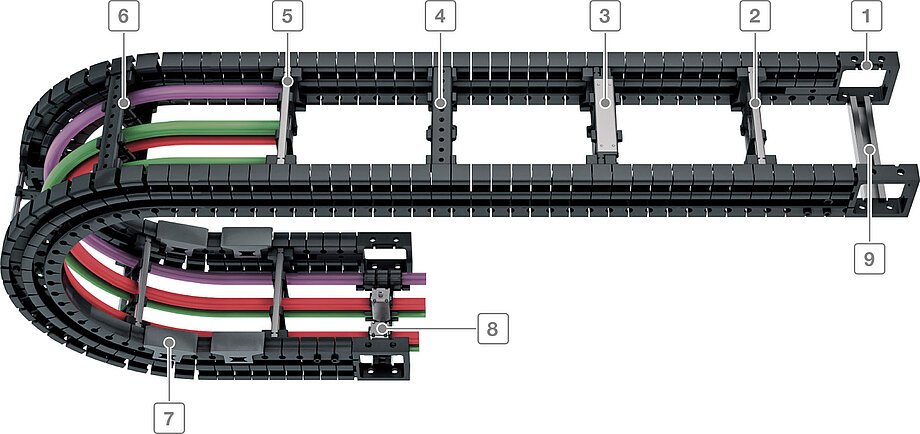

- Universal end connectors (UMB)
- Aluminum stays available in 1 mm width sections
- Aluminum stays in reinforced design
- Plastic stays available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying
- Fixable dividers
- Replaceable glide shoes
- Strain relief combs
- C-rail for strain relief elements
QUANTUM® Low-vibration operation
Cable carrier with polygon effect
Features
- Cleanroom compatible:
no links, no link wear - Extremely quiet, 31 db (A)*
- Extremely light
- For high accelerations up to 300 m/s2
- For high operating speeds up to 40 m/s
- Extremely long service life: ≥ 25 million motion cycles
- TÜV type tested as per 2PfG 1036/10.97
- Large selection of stay systems and separating options for cables
* Tested: Q060.100.100 by TÜV Rheinland. The sound pressure level for the measured area was measured at a distance of 0.5 m for smooth and jerky movements.
Ideal for highly dynamic applications
3D movements: the driver connection can be moved laterally and can be rotated by up to ± 30°
Side bands made from special plastic and steel cables in the support floor for an extremely long service life

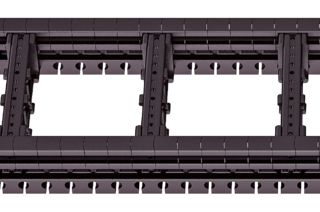

Q040
- Inner height [hi]: 28 mm
- Inner widths [Bi]: 28 - 284 mm
- Pitch [t]: 15 mm
- Bending [KR]: 60 - 180 mm

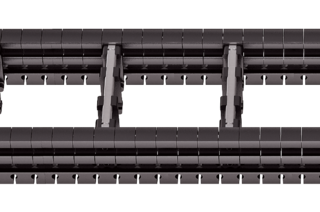

Q060
- Inner height [hi]: 38 - 42 mm
- Inner widths [Bi]: 38 - 500 mm
- Pitch [t]: 20 mm
- Bending [KR]: 100 - 300 mm

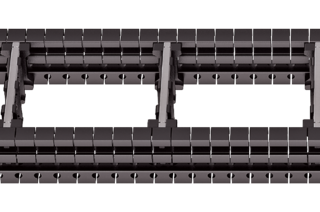

Q080
- Inner height [hi]: 58 mm
- Inner widths [Bi]: 50 - 600 mm
- Pitch [t]: 25 mm
- Bending [KR]: 170 - 500 mm

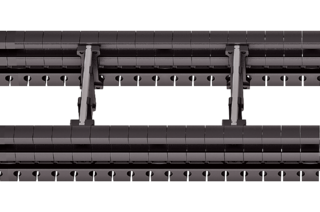

Q100
- Inner height [hi]: 72 mm
- Inner widths [Bi]: 70 - 600 mm
- Pitch [t]: 30 mm
- Bending [KR]: 180 - 600 mm
Cleanroom compatible and long service life
Continuous side bands are used. In contrast to conventional hole-and-bolt connections, hardly any wear occurs (link abrasion), which makes QUANTUM® ideal for use in cleanrooms.
Extremely long service life through
- No link abrasion due to absence of hole-and-bolt connections
- Continuous side bands made from special plastic with integrated steel cables
Ideal for highly dynamic applications – extruded side bands
The QUANTUM® runs extremely quietly and with low vibrations. The absence of links and the very small pitch means that the so-called polygon effect is reduced to a minimum. Due to the very quiet running, the QUANTUM® cable carrier system is ideal for applications with low-vibration linear drives.
