Q080
Q080
Pitch
25 mm
25 mm
Inner height
58 mm
58 mm
Inner widths
50 - 600 mm
50 - 600 mm
Bending radii
170 - 500 mm
170 - 500 mm
Stay Variants
Q080 RS
more details
Q080 RV
more details
Q080 RE
more details
Stay Variants

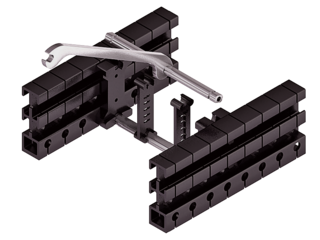

Q080 RS
Frame stay, narrow “The standard”
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.

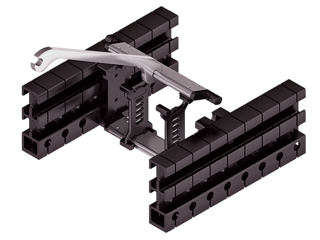

Q080 RV
Frame stay, reinforced
- Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
- Outside/inside: release by rotating 90°.

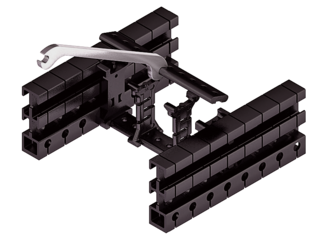

Q080 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 170 | 457 | 834 | 379 |
| 200 | 517 | 928 | 409 |
| 250 | 617 | 1085 | 459 |
| 320 | 757 | 1305 | 529 |
| 420 | 957 | 1619 | 629 |
| 500 | 1117 | 1870 | 709 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.5 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 25 m/s
Acceleration
up to 100 m/s2
Travel length
up to 6.4 m
Additional load
up to 8 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 2 - 3 m/s2
Travel length
up to 80 m
Additional load
up to 8 kg/m
The gliding cable carrier has to be routed in a
channel.
Glide shoes have to be used for gliding applications.
