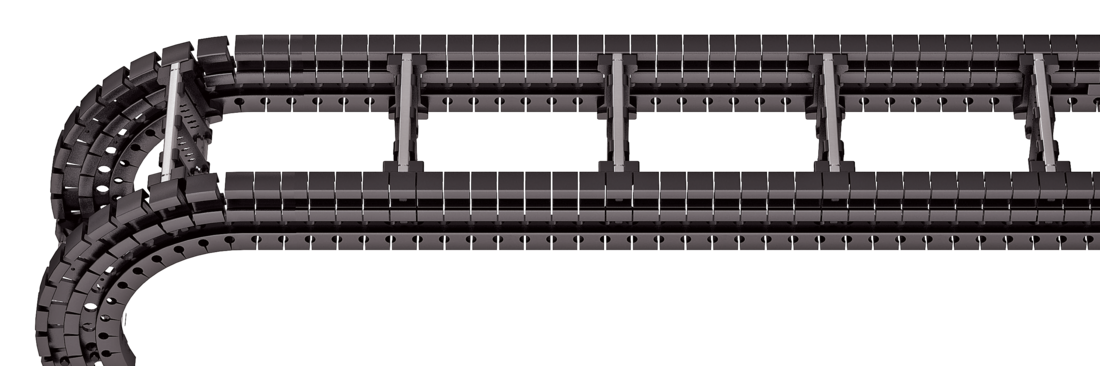

Aluminum stay RS – frame stay narrow

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm sections.
  • Outside/inside: release by rotating 90°.

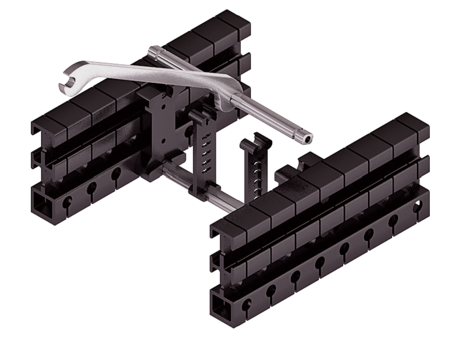

Stays on every 8<sup>th</sup> section, <strong>standard (HS: half-stayed)</strong>
Stays on every 4<sup>th</sup> section <strong>(VS: fully-stayed)</strong>
Bi 50 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Number of glide shoes: Pitch per cable carrier length/4 x 2 -2
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">25</td> <td class="hi red">58</td> <td class="hg">80</td> <td class="hgdash">88</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 50 - 600 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 72</td> <td class="bef">Bi + 79.5</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">2.10 - 2.90</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
170 200 250 320 420 500

Order example

Q080
Type
•
400
Bi [mm]
•
RS
Stay variant
•
250
KR [mm]
-
1600
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 8th section for stay mounting (HS). As a standard. dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°. the dividers can be attached by simply clipping onto a socket (available as an accessory). This socket additionally acts as a spacer between the dividers and is available in a 1 mm grid between 3 – 50 mm. as well as 16.5 and 21.5 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1114102

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A112514102

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1123192

With grid distribution (1 mm grid). The dividers are attached by the height separation. the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Please note that the real dimensions may deviate slightly from the values indicated here.

Divider system TS3
with height separation consisting of plastic partitions

As a standard. the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

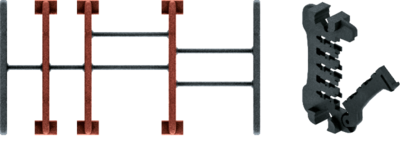

<p>Divider version A</p>

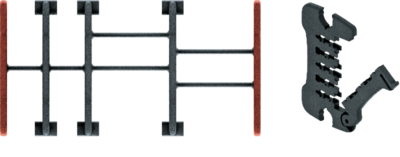

<p>End divider</p>
Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A10.5/6.5*14102

* For End divider

The dividers are fixed by the partitions. The complete divider system is movable  in the cross section.

ax (centre distance of dividers) [mm]

ac (usable width of inner chamber) [mm]

141619232428293233343839
101215192024252829303435
434448495458596468697478
394044455054556064657074
7980848889949699112
7576808485909295108

When using partitions with ax > 49 mm we recommended an additional preferential central support.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
34
•
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1....). version and number of dividers per cross section [nT ]. In addition. please also enter the chambers [K] from left to right. as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1 - TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque:<br>30 Nm for screws M8 - 8.8<br>18 Nm for screws M8 - 12.9

Connection point
F – fixed point
M – driver

Connection type
U – universal end connector

Order example

UMB
UMB
Connection point
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
