Q100
Q100
Pitch
30 mm
30 mm
Inner height
72 mm
72 mm
Inner widths
70 - 600 mm
70 - 600 mm
Bending radii
180 - 600 mm
180 - 600 mm
Stay Variants
Q100 RS
more details
Q100 RV
more details
Q100 RE
more details
Stay Variants

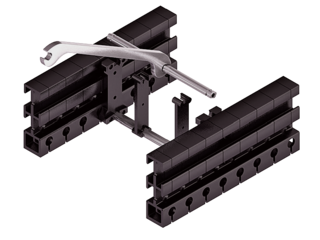

Q100 RS
Frame stay, narrow “The standard”
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.

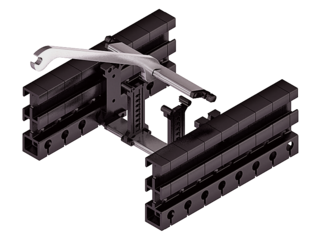

Q100 RV
Frame stay, reinforced
- Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
- Outside/inside: release by rotating 90°.

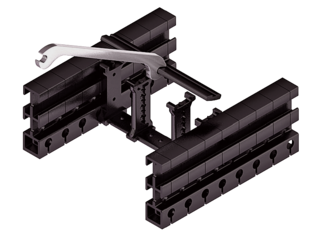

Q100 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: release by rotating 90°.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 180 | 503 | 926 | 432 |
| 250 | 643 | 1145 | 502 |
| 300 | 743 | 1302 | 552 |
| 370 | 883 | 1522 | 622 |
| 460 | 1063 | 1805 | 712 |
| 600 | 1343 | 2244 | 852 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 3.25 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 20 m/s
Acceleration
up to 70 m/s2
Travel length
up to 7.8 m
Additional load
up to 12 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 2 - 3 m/s2
Travel length
up to 95 m
Additional load
up to 12 kg/m
The gliding cable carrier has to be routed in a channel.
Glide shoes have to be used for gliding applications.
