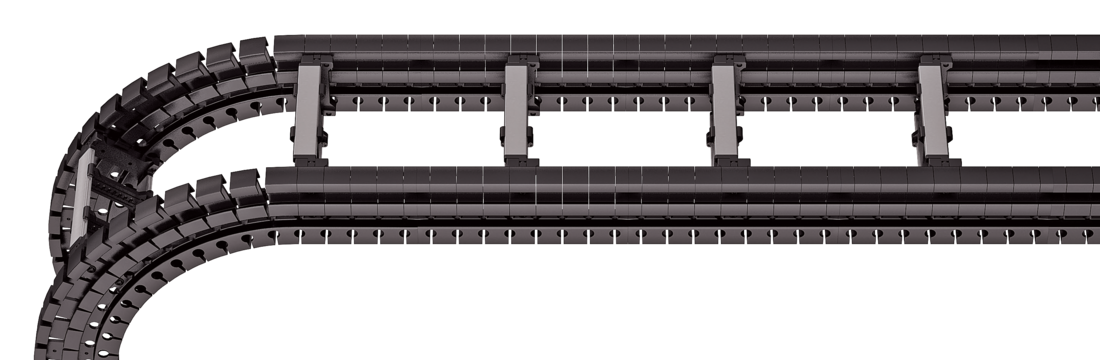

Q100 RV

Q100 RV

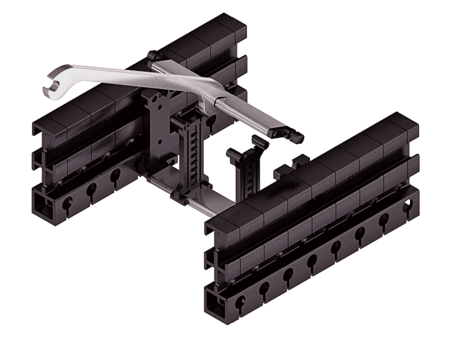

Aluminum stay RV – Frame stay reinforced

Properties

  • Aluminum profile bars with plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
  • Available customized in 1 mm sections.
  • Outside/inside: release by rotating 90°.
Stays on every 8<sup>th</sup> section, <strong>standard (HS: half-stayed)</strong>
Stays on every 4<sup>th</sup> section <strong>(VS: fully-stayed)</strong>
Bi 70 - 600 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Number of glide shoes: Pitch per cable carrier length/4 x 2 -2
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <th class="hgdash"><strong>h<sub>G'</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">30</td> <td class="hi red">72</td> <td class="hg">98</td> <td class="hgdash">108</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 70 - 600 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 82</td> <td class="bef">Bi + 89.5</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">2.8 - 4.6</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
180 250 300 370 460 600

Order example

Q100
Type
•
400
Bi [mm]
•
RV
Stay variant
•
370
KR [mm]
-
1860
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 8th section for stay mounting (HS).

As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1316102

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		aT max
[mm]		ax min
[mm]		ac min
[mm]		nT min
A132516102

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A1321152

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 6 mm).

Divider system TS3
with height separation consisting of plastic partitions

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		nT min
A816/42*82

* For aluminum partitions

The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.

Aluminum partitions in 1 mm increments with ax > 42 mm are also available.

ax (centre distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

161823283233384348586468
81015202425303540505660
78808896112128144160176192208
70728088104120136152168184200

When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 4 mm). Twin dividers are also suitable for retrofitting in the partition system. The height separations VR8 and VR9 are not possible when using twin dividers.

Order example

TS3
Divider system
•
A
Version
•
3
nT
•
K1
•
K4
Chamber
•
16
•
208
ax
-
VR1
-
VR9
Height separation

Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax].

When using divider systems with height separation (TS1 – TS3), please additionally state the positions (e.g. VD23) viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque:<br>49 Nm for screws M10 - 8.8<br>55 Nm for screws M10 - 12.9

Connection point
F – fixed point
M – driver

Connection type
U – universal end connector

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
