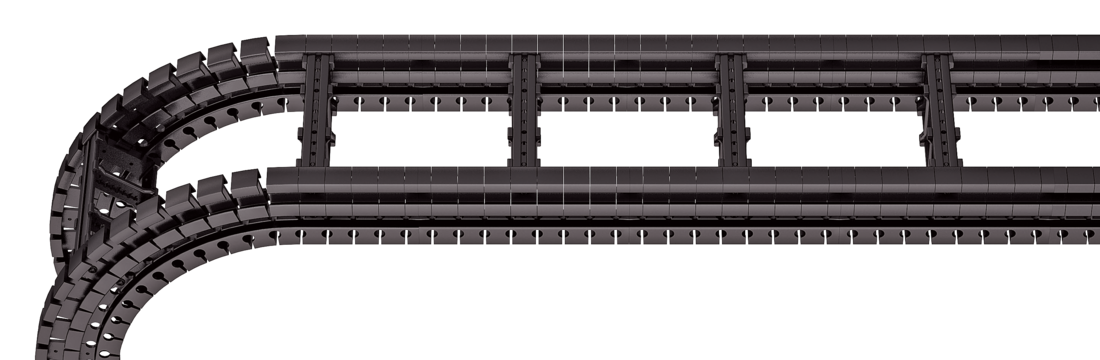

Q100 RE

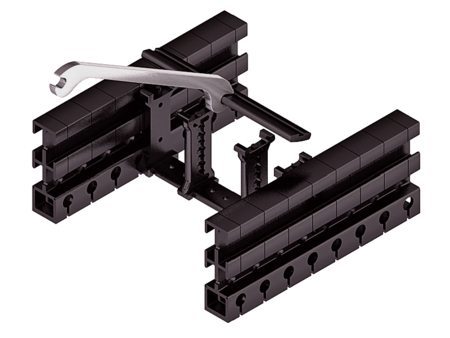

Plastic stay RE – frame screw-in stay
Properties
- Plastic profile bars for light and medium loads. Assembly without screws.
- Available customized in 16 mm sections.
- Outside/inside: release by rotating 90°.
Dimensions Dimensions
| Bi [mm] * | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| 74 | 90 | 106 | 122 | 138 | 154 | 170 | 186 | 202 | 218 |
| 234 | 250 | 266 | 282 | 298 | 314 | 330 | 346 | 362 | 378 |
| 394 | 410 | 426 | 442 | 458 | 474 | 490 | 506 | 522 | 538 |
| 554 | 570 | ||||||||
| KR [mm] | |||||
|---|---|---|---|---|---|
| 180 | 250 | 300 | 370 | 460 | 600 |
Order example
Inner Distribution Inner Distribution
Divider systems
The divider system is mounted on each crossbar as a standard – on every 8th section for stay mounting (HS). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
For applications with lateral accelerations and applications with the cable carrier rotated by 90°, the dividers can easily be fixed by turning the frame stay by 180°. The arresting cams click into place in the locking grids in the crossbar (version B). The groove in the frame stay faces outwards.
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 12 | 14.5 | 6.5 | – | – |
| B | 13 | 16 | 8 | 16 | – |
The dividers are movable within the cross section (version A) or fixed (version B).
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | aT max [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|---|
| A | 12 | 25 | 14.5 | 6.5 | – | 2 |
| B | 13 | 29 | 16 | 8 | 16 | 2 |
The dividers are movable within the cross section (version A) or fixed (version B).
Divider system TS2
with partial height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 12 | 14.5*/20 | 6.5*/12 | – | 2 |
| B | 13 | 16*/32 | 8*/24 | 16 | 2 |
* for VR0
With grid distribution (16 mm grid). The dividers are fixed by the height separation; the grid is movable in the cross section (version A) or fixed (version B).
Divider system TS3
with height separation consisting of plastic partitions
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 8 | 16/42* | 8 | 2 |
* For aluminum partitions
The dividers are fixed with the partitions. The entire divider system can be moved in the cross section.
Aluminum partitions in 1 mm increments with ax > 42 mm are also available.
ax (centre distance of dividers) [mm] | |||||||||||
ac (nominal width of inner chamber) [mm] | |||||||||||
| 16 | 18 | 23 | 28 | 32 | 33 | 38 | 43 | 48 | 58 | 64 | 68 |
| 8 | 10 | 15 | 20 | 24 | 25 | 30 | 35 | 40 | 50 | 56 | 60 |
| 78 | 80 | 88 | 96 | 112 | 128 | 144 | 160 | 176 | 192 | 208 | |
| 70 | 72 | 80 | 88 | 104 | 120 | 136 | 152 | 168 | 184 | 200 | |
When using plastic partitions with ax > 112 mm, we recommend an additional center support with a twin divider (ST = 4 mm). Twin dividers are also suitable for retrofitting in the partition system. The height separations VR8 and VR9 are not possible when using twin dividers.
Order example
Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax].
When using divider systems with height separation (TS1 – TS3), please additionally state the positions (e.g. VD23) viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
Connection point
F – fixed point
M – driver
Connection type
U – universal end connector
Order example
We recommend the use of strain reliefs at the driver and fixed point.
