UAT1555
UAT1555
Pitch
55.5 mm
55.5 mm
Inner height
50 mm
50 mm
Inner widths
75 - 175 mm
75 - 175 mm
Bending radii
100 - 300 mm
100 - 300 mm
Stay Variants
UAT1555.080
more details

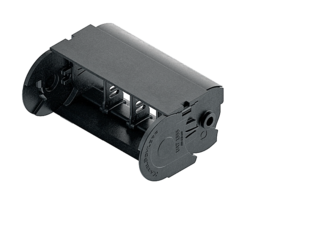

Stay Variants
UAT1555.080
Covered on both sides with outside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips and dust.
- Fully detachable on one side in any position.
- Inside: very quick release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 100 | 268 | 298 | 425 | 190 |
| 125 | 318 | 348 | 504 | 215 |
| 150 | 368 | 398 | 582 | 240 |
| 175 | 418 | 448 | 661 | 265 |
| 200 | 468 | 498 | 739 | 290 |
| 225 | 518 | 548 | 818 | 315 |
| 250 | 568 | 598 | 896 | 340 |
| 300 | 668 | 698 | 1053 | 390 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.9 kg/m at Bi 125 mm. For other inner widths, the maximum additional load changes.
Speed
up to 8 m/s
Acceleration
up to 40 m/s2
Travel length
up to 6.5 m
Additional load
up to 15 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 15 m/s2
Travel length
up to 150 m
Additional load
up to 15 kg/m
The gliding cable carrier has to be routed in a channel.
