UAT1555.080

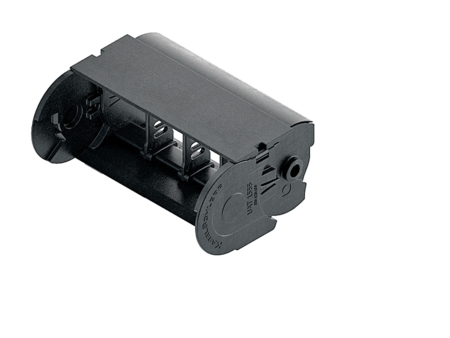

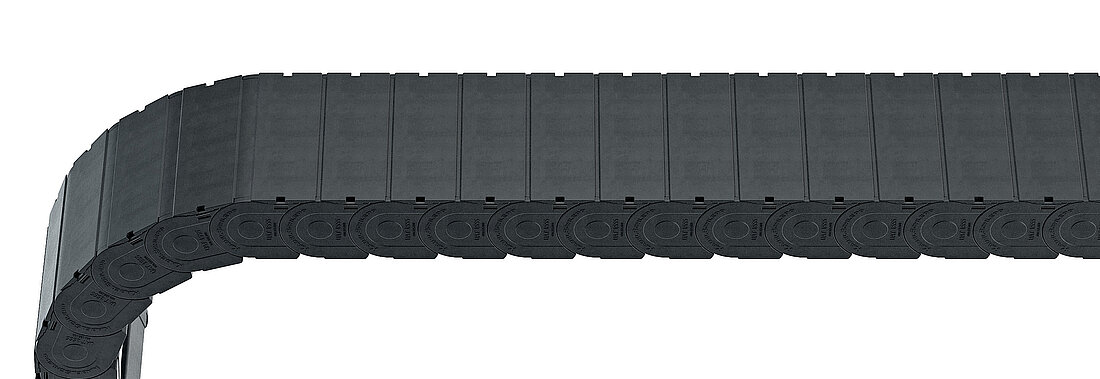

Stay variant 080 – covered on both sides with inside detachable cover
Properties
- Plastic cover for rough environmental conditions with dirt and chips.
- Fully detachable on one side in any position.
- Inside: very quick release.
Dimensions Dimensions
| Bi [mm] | ||
|---|---|---|
| 75 | 125 | 175 |
| KR [mm] | |||||||
|---|---|---|---|---|---|---|---|
| 100 | 125 | 150 | 175 | 200 | 225 | 250 | 300 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on every 2nd chain link. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them. The locking cams click into place in the locking grids in the covers (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 5 | 10 | 7 | – | – |
| B | 7.5 | 10 | 7 | 5 | – |
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 5 | 10 | 7 | – | 2 |
| B | 7.5 | 10 | 7 | 5 | 2 |
Order example
Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].
If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
| Bi [mm] | BEF [mm] | nz |
|---|---|---|
| 75 | 99 | 2 x 5 |
| 125 | 149 | 2x 9 |
| 175 | 199 | 2 x 13 |
Connection point
F – fixed point
M – driver
Connection type
U – Universal mounting bracket
