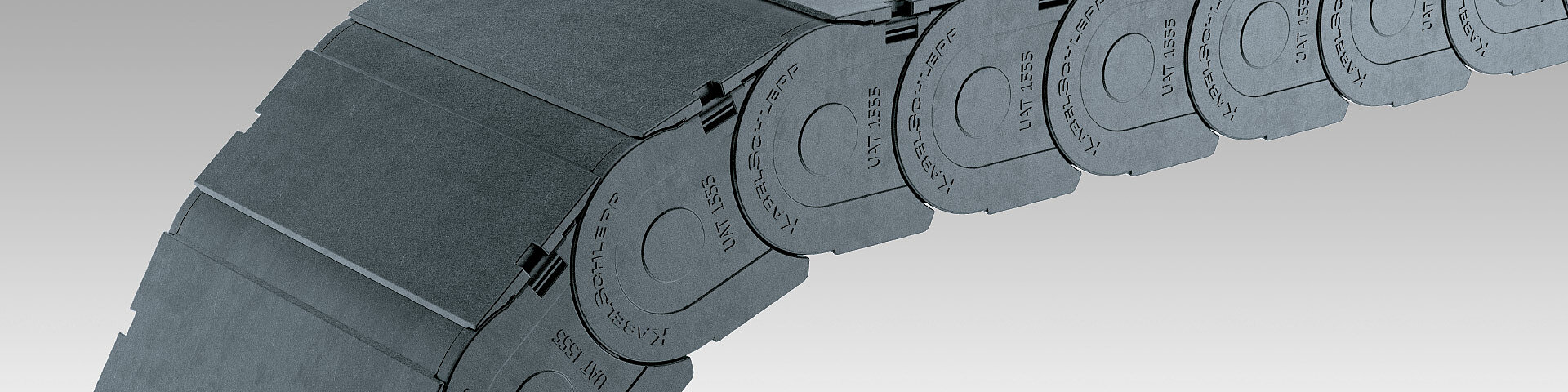

UAT series
UAT series
Extreme cable protection in harsh environmental conditions

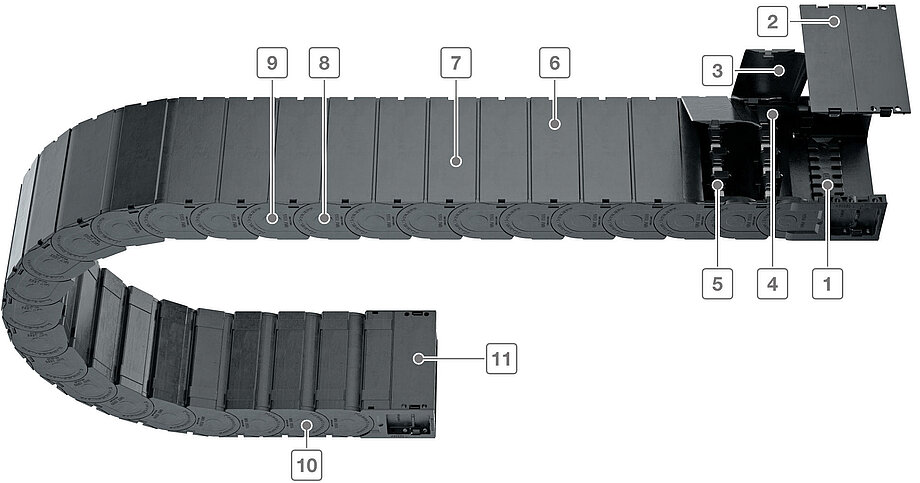

- Connectors with optional strain relief
- Completely detachable covers
- Easy and quick to open
- Gentle on the cables – interior space without projecting edges
- Dividers and height separations for cable separation
- Designs with outward opening covers
- Secure hold of the covers also under heavy load (e.g. by the use of hydraulic cables)
- Chain links made of plastic
- Extensive unsupported length
- Very quiet thanks to integrated noise damping system
- Cover system also in the connection
Features
Features
- outstanding protection for the cables
- quick cable laying – outside opening designs
- very quiet thanks to internal noise damping system
- large unsupported length
- high-quality visual design
- for unsupported and gliding arrangements
- sliding surfaces with wear volume integrated in the inner cover
Long travel length
Opens outward
Covered cable carrier
Sliding dividers
Fixable dividers
Height separation possible
Quiet running/low noise
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)
Simply unlock cover with a screwdriver
Detach the cover from the chain link
Divider system TS1
Optional strain relief comb – also placed on top of one another
Types
more details

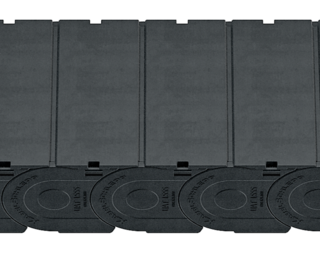

UAT1555
- Inner height [hi]: 50 mm
- Inner widths [Bi]: 75 - 175 mm
- Pitch [t]: 55.5 mm
- Bending [KR]: 100 - 300 mm
| Type | hi [mm] | Bi [mm] | t [mm] | KR [mm] |
|---|---|---|---|---|
| UAT1555 | 50 | 75 - 175 | 55.5 | 100 - 300 |
