K0900
90 mm
50 - 58 mm
81 - 700 mm
130 - 385 mm
Stay Variants

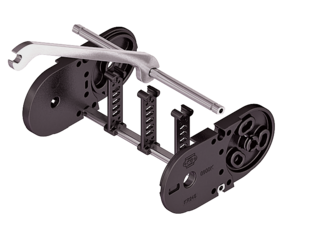

KC0900 RS
Frame stay, narrow “The standard”
- Aluminum profile bars for light to medium loads. Assembly without screws.
- Outside/inside: to open by rotating 90°.

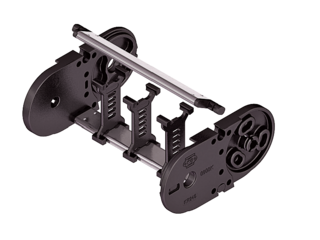

KC0900 RV
Frame stay, reinforced
- Aluminum profile bars plastic adapter for medium to high loads and large cable carrier widths. Assembly without screws.
- Outside/inside: to open by rotating 90°.

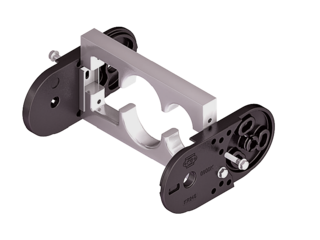

KC0900 LG
Hole stay, split version
- Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
- Outside/inside: Screw-fixing easy to release.

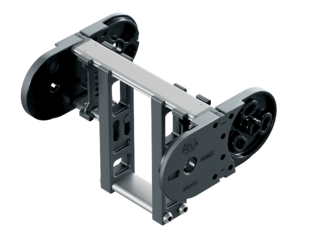

KC0900 RMAI
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Inside: Screw-fixing easy to release.

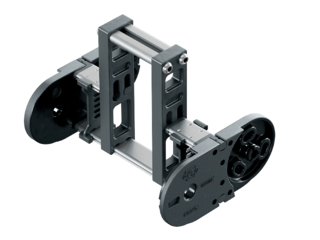

KC0900 RMAO
Mounting frame stay
- Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
- Outside: Screw-fixing easy to release

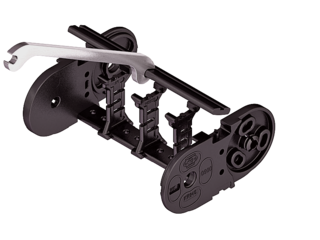

KE0900 RE
Frame screw-in stay
- Plastic profile bars for light to medium loads. Assembly without screws.
- Outside/inside: to open by rotating 90°.
Additional stay variants on request

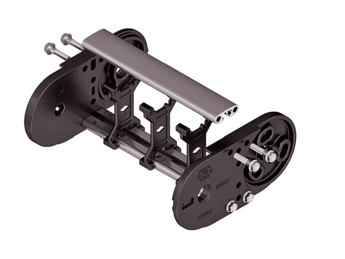

Aluminum stay RM
Aluminum profile bars for high loads.

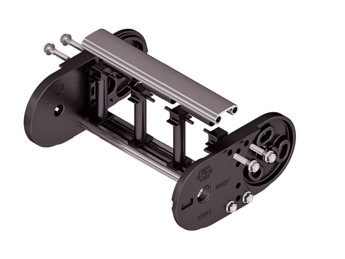

Aluminum stay RMR
Gentle cable guiding with rollers.
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 130 | 336 | 386 | 589 | 258 |
| 150 | 376 | 426 | 652 | 278 |
| 190 | 456 | 506 | 777 | 318 |
| 245 | 566 | 616 | 950 | 373 |
| 300 | 676 | 726 | 1123 | 428 |
| 385 | 846 | 896 | 1390 | 513 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 4.05 kg/m. For other inner widths, the maximum additional load changes.
Speed
up to 6 m/s
Acceleration
up to 30 m/s2
Travel length
up to 8.4 m
Additional load
up to 30 kg/m
GLIDING ARRANGEMENT
Speed
up to 2 m/s
Acceleration
up to 3 m/s2
Travel length
up to 260 m
Additional load
up to 30 kg/m
The gliding cable carrier must be guided in a channel.
If the cable carrier is positioned so it is rotated by 90° (gliding on the outside of the side band), slide discs snapped onto the side optimize the friction and wear situation.
