KC0900 RS

KC0900 RS

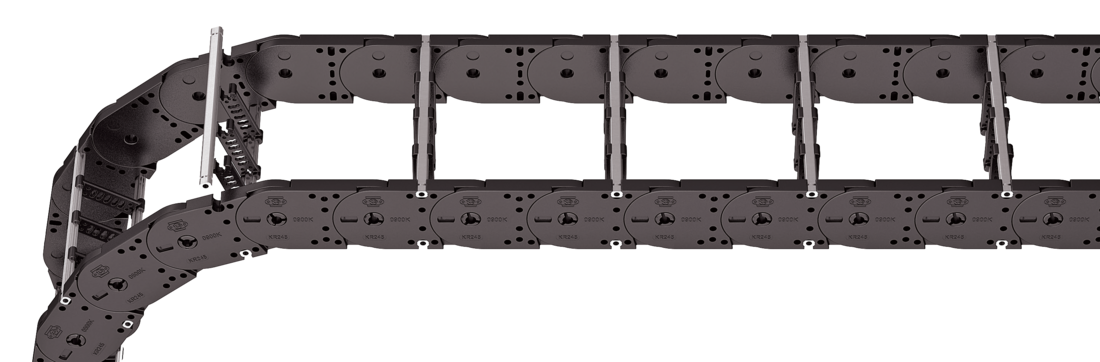

Aluminum stay RS – frame stay narrow

Properties

  • Extremely quick to open and close
  • Aluminum profile bars for light to medium loads. Assembly without screws.
  • Available customized in 1 mm width sections.

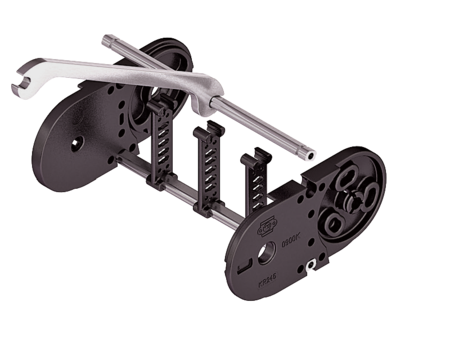

  • Outside/inside: to open by rotating 90°.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 400 mm in 1 mm width sections

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">90</td> <td class="hi red">58</td> <td class="hg">78.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi red"> 100 - 400 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 31</td> <td class="bef">Bi + 45</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">2.8 – 5.8</td> </tr> </tbody> </table>
* in 1 mm width sections
KR [mm]
130 150 190 245 300 385

Order example

KC0900
Type
300
Bi [mm]
RS
Stay variant
150
KR [mm]
-
1890
Lk [mm]
HS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on each crossbar as a standard – on every 2nd chain link for stay mounting (HS – halfstayed). As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral acceleration and rotated by 90°, the dividers can be attached by simply clipping on a socket (available as an accessory). The socket additionally serves as a spacer between the dividers and is available in 1 mm sections between 3 – 50 mm. The inner height is reduced to 54 mm (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A714102

The dividers can be moved in the cross section.

Divider system TS1
with continuous height separation

Vers.aT min
[mm]
aT max
[mm]
ax min
[mm]
ac min
[mm]
nT min
A72514102

The dividers can be moved in the cross section.

Divider system TS2
with partial height separation

Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A723192

With grid distribution (1 mm grid). The dividers are attached by the height separation, the grid can be moved in the cross section.
Sliding dividers are optionally available (thickness of divider = 4 mm).

Please note that the real dimensions may deviate slightly from the values indicated here.

Divider system TS3
with height separation consisting of plastic partitions

As a standard, the divider version A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section.

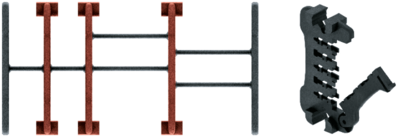

<p>Divider version A</p>

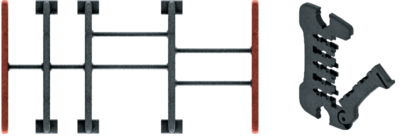

<p>End divider</p>
Vers.aT min
[mm]
ax min
[mm]
ac min
[mm]
nT min
A6/2*14102

* For End divider

The dividers are fixed by the partitions, the complete divider system is movable in the cross section.

ax (centre distance of dividers) [mm]

ac (nominal width of inner chamber) [mm]

141619232428293233343839
101215192024252829303435
434448495458596468697478
394044455054566064657074
7980848889949699112
7576808485909295108

When using partitions with ax > 49 mm, we recommended an additional preferential central support..

Order example

TS3
Divider system
A
Version
3
nT
K1
K4
Chamber
34
38
ax
-
VR1
-
VR3
Height separation

Please state the designation of the divider system (TS0, TS1,...), version and number of dividers per cross section [nT]. In addition, please also enter the chambers [K] from left to right, as well as the assembly distances [aT/ax] (as seen from the driver).

If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
F
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
