K series
K series

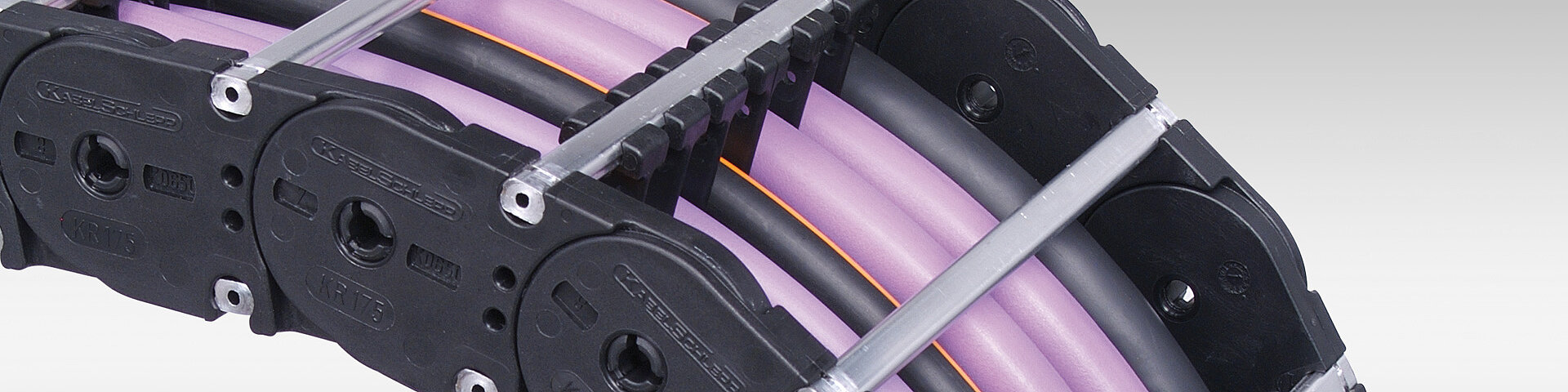

Cost-effective, robust cable carrier – suitable for large additional loads

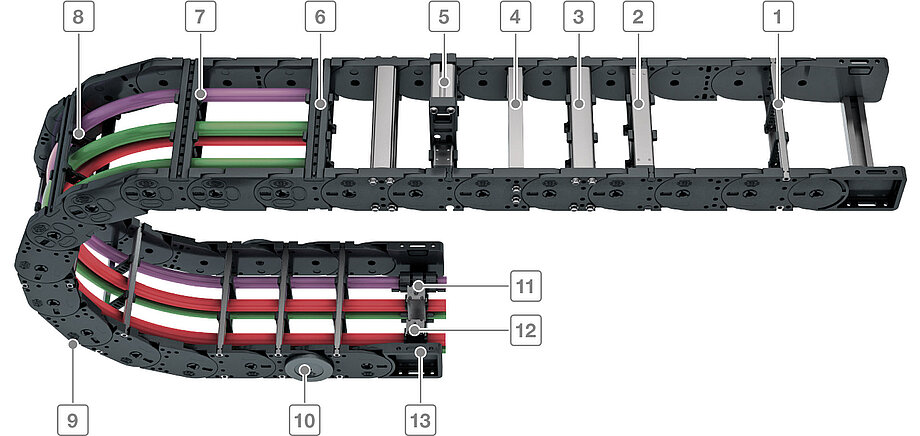

- Aluminum stays available in 1 mm width sections
- Aluminum stays in reinforced version
- Aluminum stays with 4 screw-fixing points for extreme loads
- Aluminum hole stays
- Mounting frame stays
- Plastic stays available in 8 or 16 mm width sections
- Can be opened quickly on the inside and the outside for cable laying
- Fixable dividers
- Molded slide runners
- Slide discs
- C-rail for strain relief elements
- Strain relief elements
- Universal end connectors (UMB)
Features
Features
- Stable sidebands through robust link plate design
- Encapsulated, dirt-resistant stroke system
- Long service due to minimized hinge wear owing to the “life extending 2 disc principle“
- Versions with aluminum stays available in 1 mm width sections up to 700 mm inner width
- Versions with plastic stays available in 8 or 16 mm width sections
- Large selection of vertical and horizontal stay separation options for your cables
Inner width (Bi) in 1 mm increments
8Inner width (Bi) in 8 mm increments
Inner width (Bi) in 16 mm increments
Long travel length
High additional load
Opens inward/outward
Sliding dividers
Fixable dividers
Height separation possible
Minimized hinge wear owing to the “life extending 2 disc principle“
Slide discs for long service life for applications where the carrier is rotated through 90°
Molded slide runners for long service life in sliding arrangement
Many separation options for the cables
Types
more details
more details

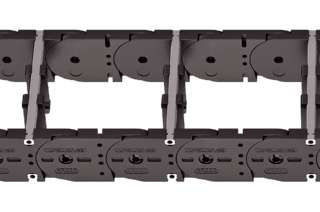

K0650
- Inner height [hi]: 36 - 42 mm
- Inner widths [Bi]: 68 - 600 mm
- Pitch [t]: 65 mm
- Bending [KR]: 75 - 300 mm

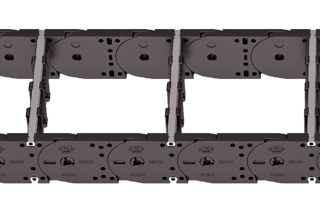

K0900
- Inner height [hi]: 50 - 58 mm
- Inner widths [Bi]: 81 - 700 mm
- Pitch [t]: 90 mm
- Bending [KR]: 130 - 385 mm
