KC0900 LG

KC0900 LG

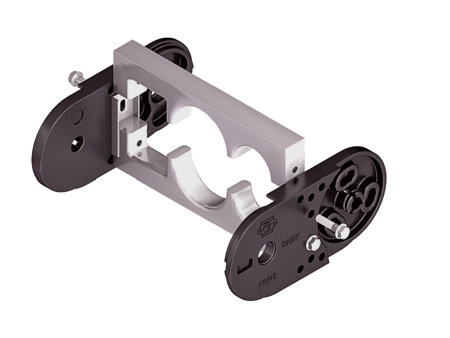

Aluminum stay LG – Hole stay, split version

Properties

  • Optimum cable routing in the neutral bending line. Split version for easy cable routing. Stays also available unsplit.
  • Available customized in 1 mm width sections.
  • Outside/inside: Screw-fixing easy to release.

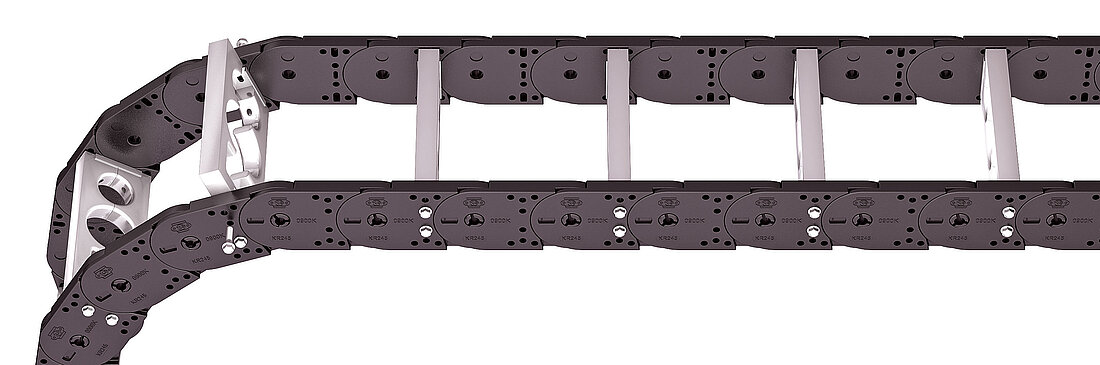

Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 100 - 700 mm in 1 mm width sections

Dimensions Dimensions

The outer width of the cable carrier corresponds to dimension BEF for stay variant LG.
The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
Calculating the stay width
Stay width BSt: BSt = Σ D + Σ c + 2 a0
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="dmax red"><strong>D<sub>max</sub></strong><br>[mm]</th> <th class="dmin"><strong>D<sub>min</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="bi"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th> <th class="bst red"><strong>B<sub>St</sub></strong><br>[mm]</th> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th> <th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th> <th class="a0min"><strong>a<sub>0</sub> min</strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk50"><strong>q<sub>k</sub> 50%</strong><br>[kg/m]<sup>**</sup></th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">90</td> <td class="hi">50</td> <td class="dmax red">50</td> <td class="dmin">10</td> <td class="hg">78.5</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="bi"> 100 - 700 </td> <td class="bst red"> 98 - 698 </td> <!-- Bk und BEF für alle Ketten --> <td class="bk">BSt + 33</td> <td class="bef">BSt + 45</td> <td class="cmin">4</td> <td class="a0min">11</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk50">4.79 – 9.83</td> </tr> </tbody> </table>
* in 1 mm width sections ** Hole ratio of the hole stay approx. 50 %
KR [mm]
130 150 190 245 300 385
qk 50%: 4.79 – 9.83 mm Hole ratio of the hole stay approx. 50 %

Order example

KC0900
Type
•
400
Bi [mm]
•
LG
Stay variant
•
150
KR [mm]
-
1890
Lk [mm]
HS
Stay arrangement

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type

We recommend the use of strain reliefs at the driver and fixed point.
