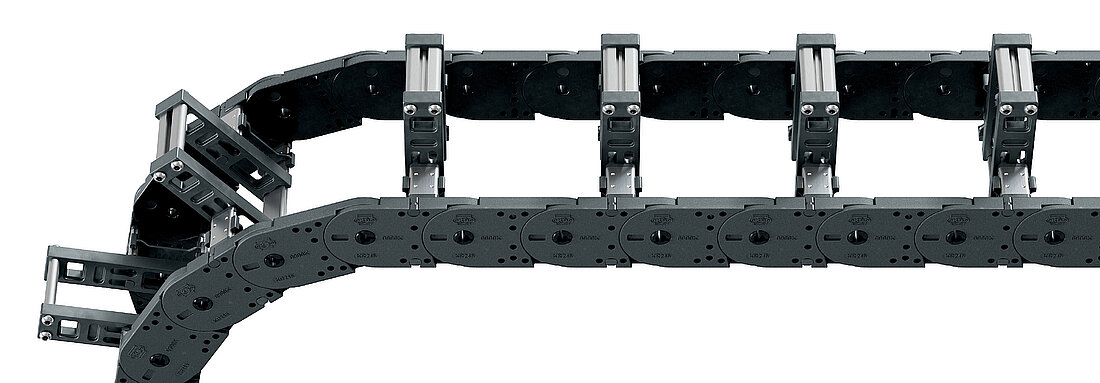

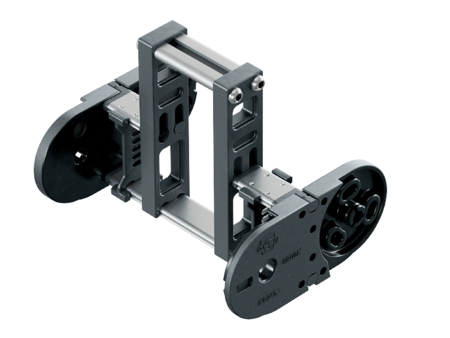

Aluminum profile bars with plastic mounting frame stays for guiding very large cable diameters.
The mounting frame stay is mounted on the outside in the bending radius.
Available customized in 1 mm width sections.
Outside: Screw-fixing easy to release.
Stays on every 2<sup>nd</sup> section, <strong>standard (HS: half-stayed)</strong>
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi
200 - 500
mm
in 1 mm width sections
Dimensions
Dimensions
<p>The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.</p>
<p><strong>Intrinsic cable carrier weight</strong><br />Determining the intrinsic cable carrier weight strongly depends on the selected stay arrangement. Please contact us.</p>
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table">
<thead>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<th class="t"><strong>t</strong><br>[mm]</th>
<th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th>
<th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<th class="bi red"><strong>B<sub>i</sub></strong><br>[mm]<sup>*</sup></th>
<th class="bi1"><strong>B<sub>i1</sub> min</strong><br>[mm]</th>
<th class="bi3"><strong>B<sub>i3</sub> min</strong><br>[mm]</th>
<!-- Bk und BEF für alle Ketten -->
<th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th>
<th class="bef"><strong>B<sub>EF</sub></strong><br>[mm]</th>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
</tr>
</thead>
<tbody>
<tr>
<!-- Reihenfolge gemäß Kundenwunsch -->
<td class="t">90</td>
<td class="hi red">58</td>
<td class="hg">78.5</td>
<!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range -->
<td class="bi red">
200 - 500
</td>
<td class="bi1">40</td>
<td class="bi3">40</td>
<!-- Bk und BEF für alle Ketten -->
<td class="bk">Bi + 31</td>
<td class="bef">Bi + 45</td>
<!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range -->
</tr>
</tbody>
</table>
* in 1 mm width sections
Hi [mm]
130
160
200
KR [mm]
130
150
190
245
300
385
Order example
KC0900
Type
•
400
Bi [mm]
•
RMAO
Stay variant
•
150
KR [mm]
-
1890
Lk [mm]
HS
Stay arrangement
RMAO – assembly to the outside:
The cable carrier has to rest on the side bands and not on the stays. Guiding in a channel is required for support. Please contact our technical support at technik@kabelschlepp.de to find the corresponding guide channel. Please note the operating and installation height.
End connectors
End connectors
Connection point F – fixed point M– driver
Connection type U – Universal mounting bracket
Order example
UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type
We recommend the use of strain reliefs at the driver and fixed point.
