TKR0280
TKR0280
Pitch
28 mm
28 mm
Inner height
52 mm
52 mm
Inner widths
50 - 200 mm
50 - 200 mm
Bending radii
75 - 200 mm
75 - 200 mm
Stay Variants
TKR0280.030
more details
Stay Variants

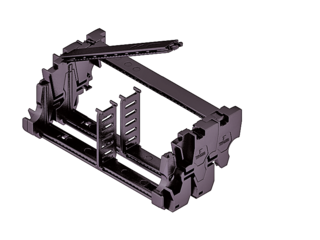

TKR0280.030
Frame with outside detachable crossbar
- Low-vibration plastic frame with particularly long service life thanks to molded chain links.
- Outside: Swivable and detachable
- Inside: detachable
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | LB [mm] | UB [mm] |
|---|---|---|---|
| 75 | 252 | 348 | 167 |
| 100 | 302 | 427 | 192 |
| 150 | 402 | 584 | 242 |
| 200 | 502 | 741 | 292 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.0 kg/m at Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 200 m/s2*
Travel length
up to 4.9 m
Additional load
up to 10 kg/m
* For values > 20 m/s2, please contact us, we are happy to advise you!
