TKP35
TKP35
Pitch
35 mm
35 mm
Inner height
32 mm
32 mm
Inner widths
16 - 50 mm
16 - 50 mm
Bending radii
48 - 125 mm
48 - 125 mm
Stay Variants
TKP35.030
more details
TKP35.040
more details
Stay Variants

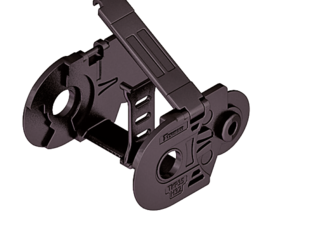

TKP35.030
Frame with outside opening crossbars on both sides
- Weight-optimised plastic frame with particularly high torsional rigidity.
- Can be opened at any position on both sides.
- Outside: opening and detachable crossbars.

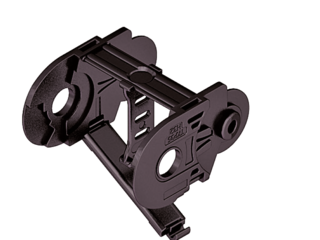

TKP35.040
Frame with inside opening crossbars on both sides
- Weight optimised plastic frame with high torsional rigidity.
- Can be opened at any position on both sides.
- Inside: opening and detachable crossbars.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 48 | 146 | 176 | 220 | 103 |
| 60 | 170 | 200 | 258 | 115 |
| 75 | 200 | 230 | 306 | 130 |
| 100 | 250 | 280 | 384 | 155 |
| 125 | 300 | 330 | 463 | 180 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.50 kg/m with Bi 16 mm. For other inner widths, the maximum additional load changes.
Speed
up to 5 m/s
Acceleration
up to 20 m/s2
Travel length
up to 2.3 m
Additional load
up to 2 kg/m
