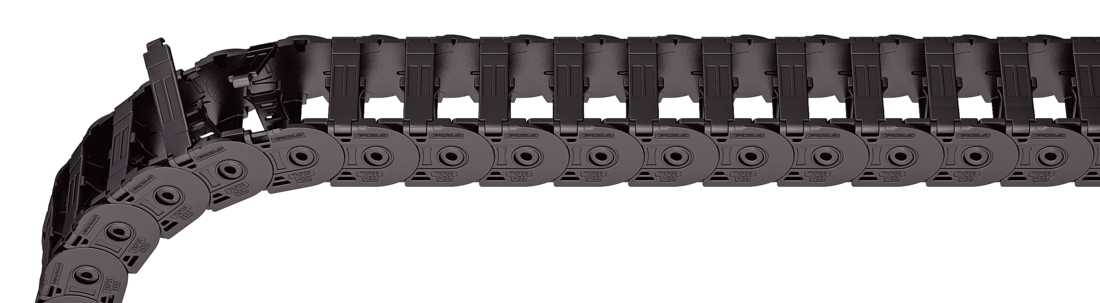

TKP35.030

TKP35.030

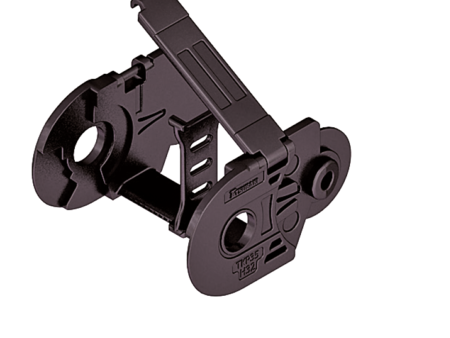

Stay variant 030 – with outside opening and detachable crossbars

Properties

  • Weight-optimised plastic frame with particularly high torsional rigidity.
  • Can be opened at any position on both sides.
  • Outside: opening and detachable crossbars.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 16 - 50 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]<sup>*</sup></th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">35</td> <td class="hi red">32</td> <td class="hg">40</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 12*</td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.5 - 0.8</td> </tr> </tbody> </table>
* For Bi 16 = Bi + 10
Bi [mm]
16 25 38 50
KR [mm]
48 60 75 100 125
Bk: Bi + 12* mm For Bi 16 = Bi + 10

Order example

TKP35
Type
•
030
Stay variant
•
50
Bi [mm]
•
100
KR [mm]
-
700
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

The divider system is mounted on every 2nd chain link as a standard. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

For applications with lateral accelerations and applications with the cable carrier rotated by 90°, the dividers can easily be fixed on the stay through rotation. The arresting cams snap into the catch profiles in the covers (version B).

Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A364––
B4,5* / 5642–

* Only Bi 25

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A364–2
B4,5* / 56422

* Only Bi 25

The dividers can be moved in the cross section.

Order example

TS1
Divider system
•
A
Version
•
3
nT
-
VD1
-
VD3
Height separation

Please state the designation of the divider system (TS0, TS1,...), the version, and the number of dividers per cross section [nT].

When using divider systems with height separation (TS1), please additionally state the position (e.g. VD1) viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Order example

End connector
End connector
End connector
•
F
•
M
Connection point
A
A
Connection type

The end connectors are optionally also available without strain relief comb.
Bi
[mm]		BEF
[mm]		nz
25372
38504
50626

Connection point
F – fixed point
M – driver

Connection type
A – threaded joint outside (standard)
I – threaded joint inside

Order example

End connector
End connector
End connector
•
F
•
M
Connection point
A
A
Connection type
