TKR0200

Pitch
20 mm

Inner height
28 mm

Inner widths
40 - 120 mm

Bending radii
55 - 150 mm

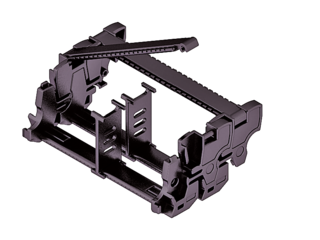

Stay Variants

Low-vibration plastic frame with particularly long service life thanks to molded chain links.
Outside: Swivable and detachable
Inside: detachable

more details

Installation dimensions

UNSUPPORTED ARRANGEMENT

KR [mm]	H [mm]	L_B [mm]	U_B [mm]
55	182	253	116
75	222	316	136
95	262	379	136
150	372	552	211

LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.

Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.

Intrinsic cable carrier weight q_k = 0.6 kg/m at B_i 40 mm. For other inner widths, the maximum additional load changes.

Speed
up to 5 m/s

Acceleration
up to 200 m/s^2*

Travel length
up to 2.75 m

Additional load
up to 2.5 kg/m

* For values > 20 m/s², please contact us, we are happy to advise you!

Stay Variants
