CLEANVEYOR®
For highly requirement of cleanroom applications, achieve to ISO Class 1

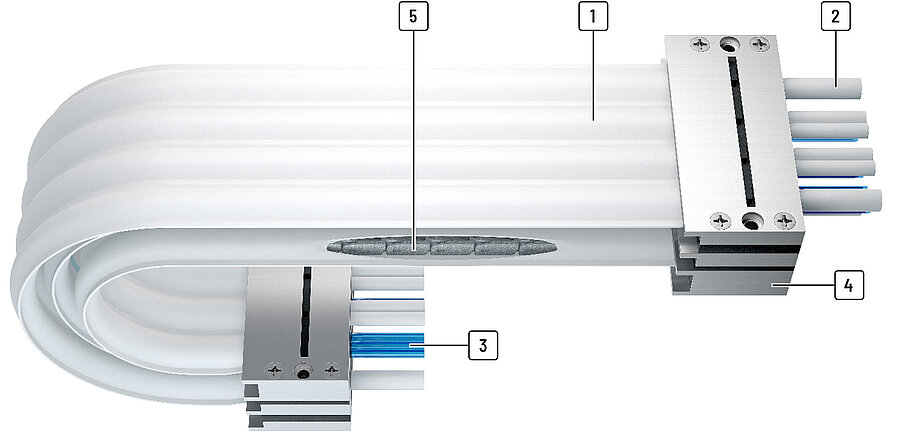

- Pods/Chambers: will select suitable Pods, based on your specifications
- Flexibility cables from our lineup, based on your specifications
- Air tubes, based on your specifications
- Clamp: will select suitable clamp, based on your specifications
- Support members: on both internal sides of Pods for a free-standing guiding
Features
- Cleanroom IPA ISO Class 1 certified
- Solve particle issues generated from the friction of cable carriers and cables
- Usable with long travel strokes
- Quiet
- High speed operation
- Line up cables with excellent flexibility and elasticity
- Fast installation due to preassembled complete system
- High durability with over 10 million bending cycles
No friction due to the use of pods
Cleanroom IPA ISO Class 1 certified
High travel speed: up to 2 m/sec
CLEANVEYOR®

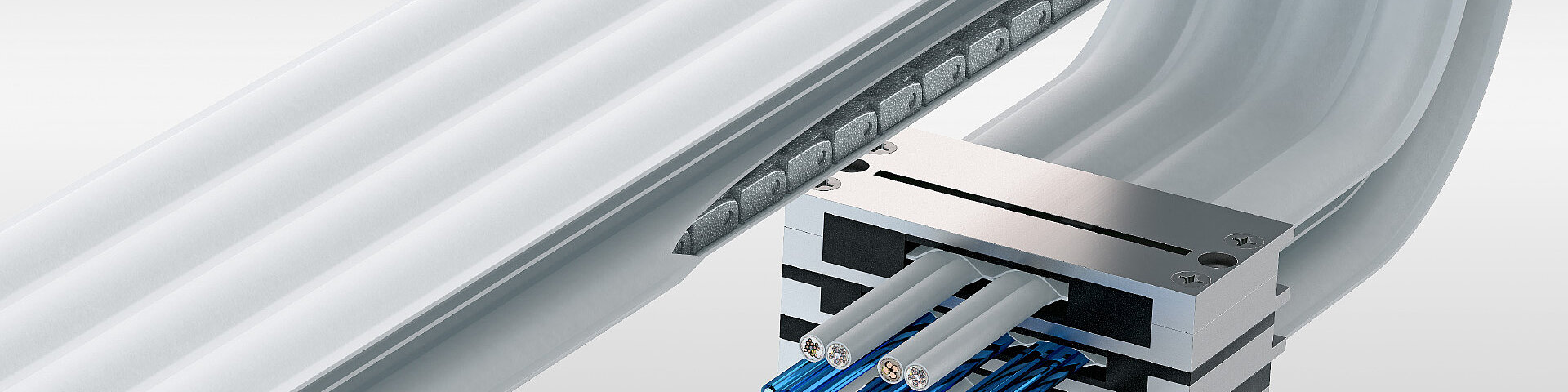

CLEANVEYOR® is an extremely top-class solution with a free-standing guiding system that makes full use of our cable carrier technology and experience.
Maximum purity and hygiene!
It comes as no surprise that clean rooms, processes and products are a must! Because any contamination leads to costly incidents, scrap or useless laboratory results. CLEANVEYOR® can contribute to lowering total costs, to lead reduction of defective products.
Layering example
CLEANVEYOR® supports a multi-layer structure with up to 6 layers.
1 Layer
2 Layer
3 Layer
4 Layer
5 Layer
6 Layer
UNSUPPORTED ARRANGEMENT
| KR [mm] | Travel length* ≤ [mm] |
|---|---|
| 40 | 1600 |
| 70 | 2200 |
| 100 | 2800 |
| 130 | 2800 |
* with an additional load of 0.4 kg/m
Speed
up to 2 m/s
Acceleration
up to 4 m/s2
Temperature range
-10 to 80 °C
Cable-Ø
3 to 10 mm
Pod types and dimensions
| Quantity Pods | Bi [mm]* | Connection width | Bk [mm] |
|---|---|---|---|
| 1 Pod | 19 | 2.3 | 23.6 |
| 2 Pod | 19 | 2.3 | 44.9 |
| 3 Pod | 19 | 2.3 | 66.2 |
| 4 Pod | 19 | 2.3 | 87.5 |
| 5 Pod | 19 | 2.3 | 108.8 |
| 6 Pod | 19 | 2.3 | 130.1 |
| 7 Pod | 19 | 2.3 | 151.4 |
| 8 Pod | 19 | 2.3 | 172.7 |
* Dimensions when flat without cables/hoses (closed)
Connection clamps – aluminum
The aluminum clamps can be connected from above or below.
| Clamp type | BEF [mm] |
|---|---|
| For 2 Pods | 57.2 |
| For 3 Pods | 76.3 |
| For 3 Pods | 95.4 |
| For 5 Pods | 114.5 |
| For 6 Pods | 133.6 |
| For 7 Pods | 152.7 |
| For 8 Pods | 171.8 |
