TKA30
TKA30
Pitch
30.5 mm
30.5 mm
Inner height
20.5 mm
20.5 mm
Inner widths
15 - 65 mm
15 - 65 mm
Bending radii
55 - 180 mm
55 - 180 mm
Stay Variants
TKA30.060
more details
TKA30.080
more details
Stay Variants

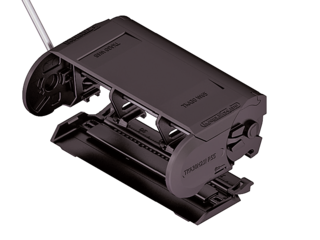

TKA30.060
Covered on both sides with inside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Inside: very quick release.

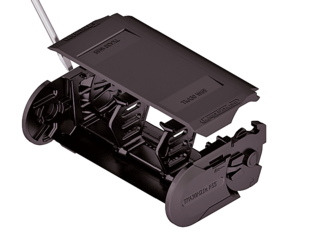

TKA30.080
Covered on both sides with outside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Outside: very quick release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 55 | 139 | 164 | 234 | 100 |
| 75 | 179 | 204 | 297 | 120 |
| 95 | 219 | 244 | 359 | 140 |
| 125 | 279 | 304 | 454 | 170 |
| 145 | 319 | 344 | 516 | 190 |
| 180 | 389 | 414 | 626 | 225 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 0.67 kg/m at Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 3.5 m
Additional load
up to 3 kg/m
GLIDING ARRANGEMENT
Speed
up to 2.5 m/s
Acceleration
up to 25 m/s2
Travel length
up to 80 m
Additional load
up to 3 kg/m
The gliding cable carrier has to be routed in a channel.
