TKA series

TKA series

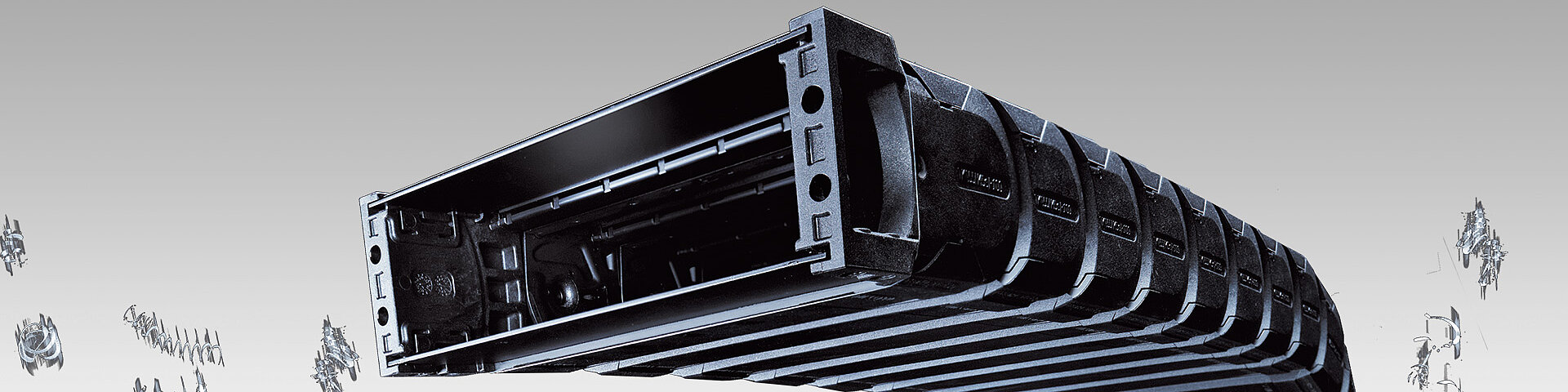

Chip-tight right to the end

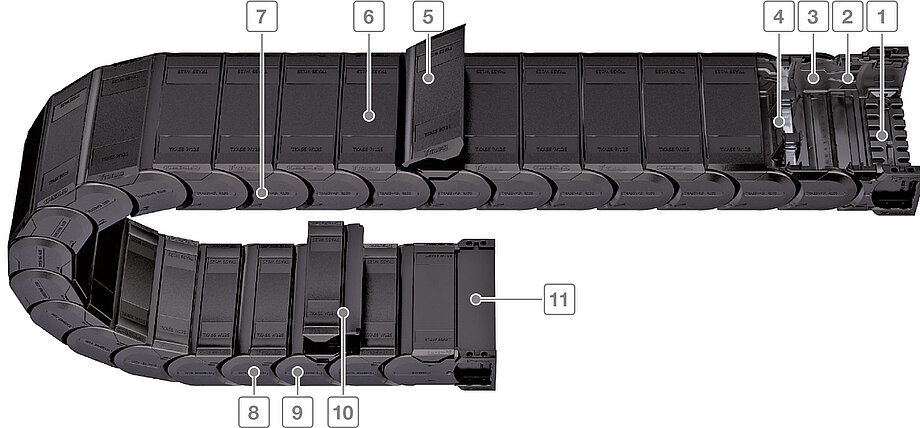

  1. End connectors with optional strain relief
  2. Interior gentle on the cables without projecting edges
  3. Integrated noise damping
  4. Dividers and height separations for separating the cables
  5. Quick and easy opening from any position
  6. Secure cover attachment even under severe stresses (e.g. from hydraulic
    lines)
  7. Chain links made of glass-fiber reinforced plastic
  8. Bolt/hole connection and stroke system covered completely
  9. Designs with inward or outward opening crossbars
  10. Covers completely detachable on one side
  11. Cover sheet for universal end connectors
Features

Features

  • Excellent cable protection in the connector area
  • Chip and dirt resistant due to smooth surfaces
  • Extensive unsupported length
  • High torsional rigidity
  • Low noise emission
  • Easy-to-open cover with simultaneously high retention force on the chain link during operation
  • Measurement scale for easy alignment of the dividers
  • TKA55: IP54 tested and certified*
Long travel length
Opens inward
Opens outward
Covered cable carrier
Sliding dividers
Fixable dividers
Height separation possible
Quiet running/low noise
ESD material
Ex-protection-material
Heat-resistant
Cold-resistant
Flame-resistant V0 (UL94)
Flame-resistant V2 (UL94)

Optimized utilization of the interior space; vertical and horizontal inner distribution possible



Easy-open covers from any position offer secure fastening



Triple-stroke system for extensive unsupported length



Universal end connector with option for integrating strain relief elements



Types

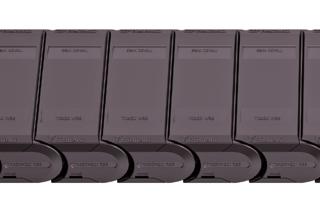

TKA30
  • Inner height [hi]: 20.5 mm
  • Inner widths [Bi]: 15 - 65 mm
  • Pitch [t]: 30.5 mm
  • Bending [KR]: 55 - 180 mm
more details

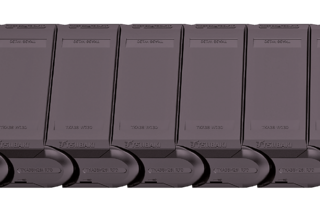

TKA38
  • Inner height [hi]: 26 mm
  • Inner widths [Bi]: 25 - 130 mm
  • Pitch [t]: 38.5 mm
  • Bending [KR]: 70 - 230 mm
more details
TKA45
  • Inner height [hi]: 36 mm
  • Inner widths [Bi]: 50 - 150 mm
  • Pitch [t]: 45.5 mm
  • Bending [KR]: 82 - 230 mm
more details

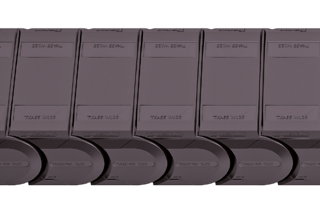

TKA55
  • Inner height [hi]: 45 mm
  • Inner widths [Bi]: 50 - 250 mm
  • Pitch [t]: 55.5 mm
  • Bending [KR]: 100 - 300 mm
more details
Type hi [mm] Bi [mm] t [mm] KR [mm]
TKA30 20.5 15 - 65 30.5 55 - 180
TKA38 26 25 - 130 38.5 70 - 230
TKA45 36 50 - 150 45.5 82 - 230
TKA55 45 50 - 250 55.5 100 - 300
