TKA45
TKA45
Pitch
45.5 mm
45.5 mm
Inner height
36 mm
36 mm
Inner widths
50 - 150 mm
50 - 150 mm
Bending radii
82 - 230 mm
82 - 230 mm
Stay Variants
TKA45.060
more details
TKA45.080
more details
Stay Variants

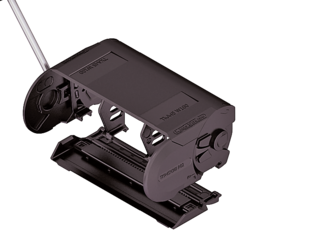

TKA45.060
Covered on both sides with inside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Inside: very quick release.

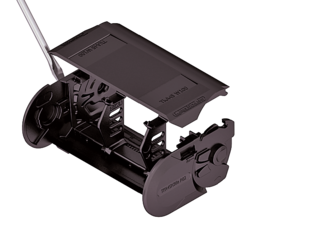

TKA45.080
Covered on both sides with outside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Outside: very quick release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 82 | 214 | 249 | 348 | 153 |
| 95 | 240 | 275 | 389 | 166 |
| 125 | 300 | 335 | 483 | 196 |
| 145 | 340 | 375 | 546 | 216 |
| 170 | 390 | 425 | 625 | 241 |
| 200 | 450 | 485 | 719 | 271 |
| 230 | 520 | 555 | 814 | 301 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 2.29 kg/m at Bi 150 mm. For other inner widths, the maximum additional load changes.
Speed
up to 9 m/s
Acceleration
up to 45 m/s2
Travel length
up to 4.7 m
Additional load
up to 6 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 20 m/s2
Travel length
up to 125 m
Additional load
up to 6 kg/m
The gliding cable carrier has to be routed in a channel.
