TKA38
TKA38
Pitch
38.5 mm
38.5 mm
Inner height
26 mm
26 mm
Inner widths
25 - 130 mm
25 - 130 mm
Bending radii
70 - 230 mm
70 - 230 mm
Stay Variants
TKA38.060
more details
TKA38.080
more details
Stay Variants

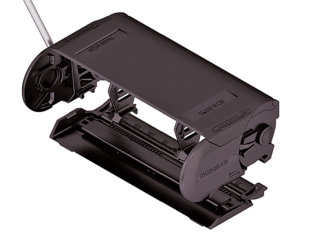

TKA38.060
Covered on both sides with inside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Inside: very quick release.

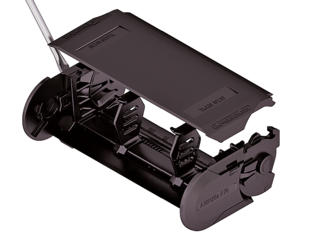

TKA38.080
Covered on both sides with outside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Outside: very quick release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 70 | 176 | 201 | 297 | 127 |
| 95 | 226 | 251 | 375 | 152 |
| 120 | 276 | 301 | 454 | 177 |
| 145 | 326 | 351 | 532 | 202 |
| 170 | 376 | 401 | 611 | 227 |
| 195 | 426 | 451 | 689 | 252 |
| 230 | 496 | 521 | 799 | 287 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.13 kg/m at Bi 78 mm. For other inner widths, the maximum additional load changes.
Speed
up to 10 m/s
Acceleration
up to 50 m/s2
Travel length
up to 3.9 m
Additional load
up to 5 kg/m
GLIDING ARRANGEMENT
Speed
up to 2.5 m/s
Acceleration
up to 20 m/s2
Travel length
up to 120 m
Additional load
up to 5 kg/m
The gliding cable carrier has to be routed in a channel.
