TKA38.060

TKA38.060

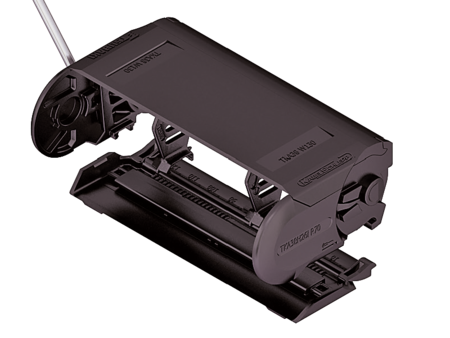

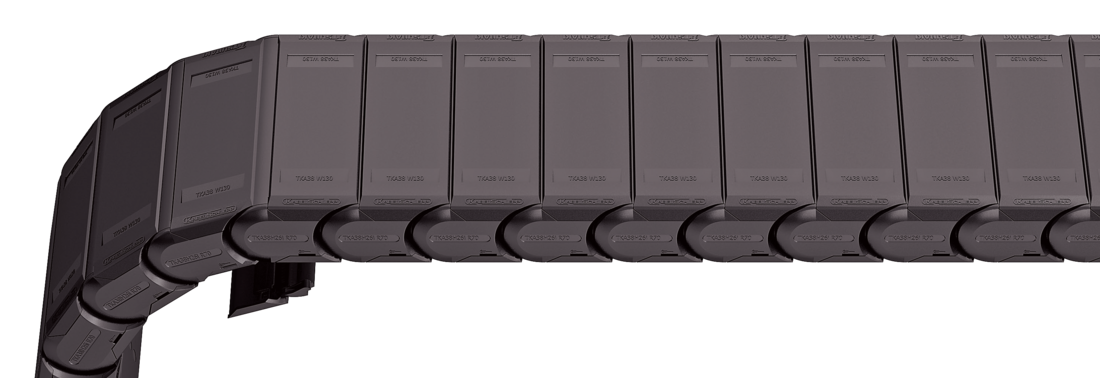

Stay variant 060 – covered on both sides with inside detachable cover

Properties

  • Plastic cover for rough environmental conditions with dirt, chips or spray water.
  • Fully detachable on one side in any position.
  • Inside: very quick release.
Stay arrangement on each chain link <strong>(VS: fully-stayed)</strong>
Bi 25 - 130 mm

Dimensions Dimensions

The maximum cable diameter strongly depends on the bending radius and the desired cable type. Please contact us.
Calculating the cable carrier length
Cable carrier length Lk: Lk ≈ LS/2 + LB
Cable carrier length Lk rounded to pitch t
<table class="table"> <thead> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <th class="t"><strong>t</strong><br>[mm]</th> <th class="hi red"><strong>h<sub>i</sub></strong><br>[mm]</th> <th class="hg"><strong>h<sub>G</sub></strong><br>[mm]</th> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <th class="bk"><strong>B<sub>k</sub></strong><br>[mm]</th> <th class="cmin"><strong>c<sub>min</sub></strong><br>[mm]</th> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <th class="qk"><strong>q<sub>k</sub></strong><br>[kg/m]</th> </tr> </thead> <tbody> <tr> <!-- Reihenfolge gemäß Kundenwunsch --> <td class="t">38.5</td> <td class="hi red">26</td> <td class="hg">36.75</td> <!-- Bi Spalte nur anzeigen wenn einzelner Wert oder Range --> <!-- Bk und BEF für alle Ketten --> <td class="bk">Bi + 16</td> <td class="cmin"></td> <!-- KR Spalte nur anzeigen wenn einzelner Wert oder Range --> <td class="qk">0.77 - 1.47</td> </tr> </tbody> </table>
Bi [mm]
25 38 58 78 103 130
KR [mm]
70 95 120 145 170 195 230

Order example

TKA38
Type
•
060
Stay variant
•
78
Bi [mm]
•
145
KR [mm]
-
1155
Lk [mm]
VS
Stay arrangement

Inner Distribution Inner Distribution

Divider systems

As a standard, the divider system is mounted on every 2nd chain link. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).

The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them. The locking cams click into place in the locking grids in the covers (version B).


Divider system TS0
without height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A3.575––
BA862–
ABi [mm]25385878103130
aT min [mm]8.59997.59

Divider system TS1
with continuous height separation

Vers.aT min
[mm]		ax min
[mm]		ac min
[mm]		ax grid
[mm]		nT min
A3.575–2
BA8622
ABi [mm]25385878103130
aT min [mm]8.59997.59

Order example

TS1
Divider system
•
A
Version
•
3
nT
-
VD0
-
VD1
Height separation

Please state the designation of the divider system (TS0, TS1 …), version and number of dividers per cross section [nT].

If using divider systems with height separation (TS1) please also state the positions [e.g. VD1] viewed from the left driver belt. You are welcome to add a sketch to your order.

End connectors End connectors

Recommended tightening torque: 3 Nm for cheesehead screws ISO 4762 - M4 x 20

test

The end connectors are also available as an option without cover sheets. Please state when ordering.

Connection point
F – fixed point
M – driver

Connection type
U – Universal mounting bracket

Order example

UMB
UMB
End connector
•
F
•
M
Connection point
U
U
Connection type
