TKA55
TKA55
Pitch
55.5 mm
55.5 mm
Inner height
45 mm
45 mm
Inner widths
50 - 250 mm
50 - 250 mm
Bending radii
100 - 300 mm
100 - 300 mm
Stay Variants
TKA55.060
more details
TKA55.080
more details
Stay Variants

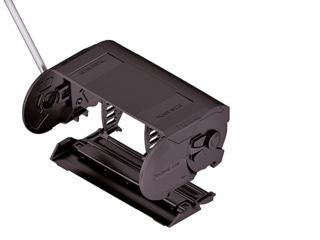

TKA55.060
Covered on both sides with inside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Inside: very quick release.
TKA55.080
Covered on both sides with outside detachable cover
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Outside: very quick release.
Installation dimensions
Installation dimensions
UNSUPPORTED ARRANGEMENT
| KR [mm] | H [mm] | Hz [mm] | LB [mm] | UB [mm] |
|---|---|---|---|---|
| 100 | 264 | 304 | 425 | 188 |
| 120 | 304 | 344 | 488 | 208 |
| 140 | 344 | 384 | 551 | 228 |
| 170 | 404 | 454 | 645 | 258 |
| 195 | 454 | 494 | 725 | 283 |
| 225 | 514 | 554 | 818 | 313 |
| 250 | 564 | 604 | 896 | 338 |
| 300 | 664 | 704 | 1211 | 388 |
LOAD DIAGRAM FOR UNSUPPORTED LENGTH
depending on the additional load.
Sagging of the cable carrier is technically permitted for extended travel lengths, depending on the specific application.
Intrinsic cable carrier weight qk = 1.95 kg/m at Bi 50 mm. For other inner widths, the maximum additional load changes.
Speed
up to 8 m/s
Acceleration
up to 40 m/s2
Travel length
up to 6.5 m
Additional load
up to 15 kg/m
GLIDING ARRANGEMENT
Speed
up to 3 m/s
Acceleration
up to 15 m/s2
Travel length
up to 150 m
Additional load
up to 15 kg/m
The gliding cable carrier has to be routed in a channel.
