TKA55.060

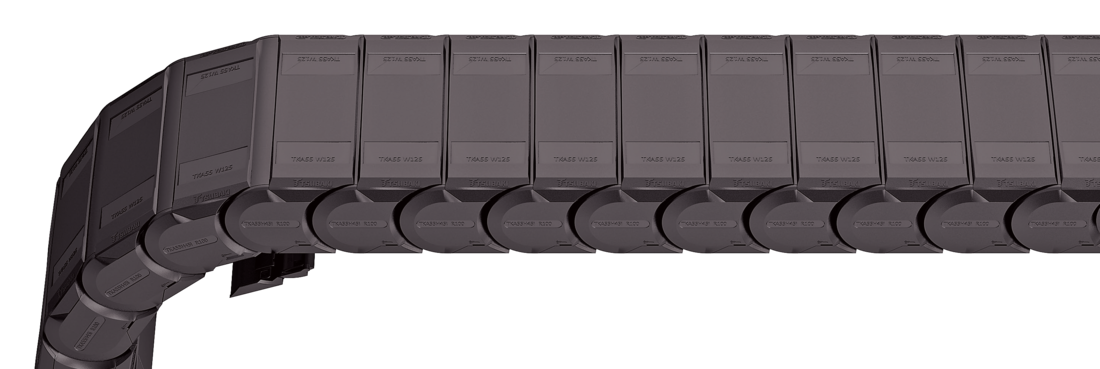

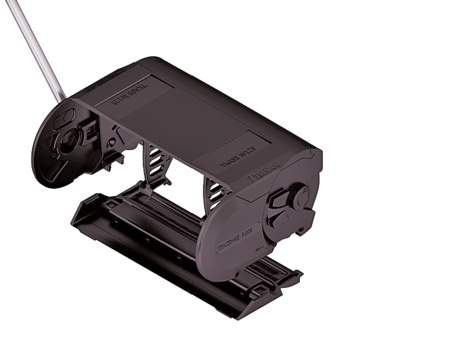

Stay variant 060 – covered on both sides with inside detachable cover
Properties
- Plastic cover for rough environmental conditions with dirt, chips or spray water.
- Fully detachable on one side in any position.
- Inside: very quick release.
Dimensions Dimensions
| Bi [mm] | ||||||||
|---|---|---|---|---|---|---|---|---|
| 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 |
| KR [mm] | |||||||
|---|---|---|---|---|---|---|---|
| 100 | 120 | 140 | 170 | 195 | 225 | 250 | 300 |
Order example
Inner Distribution Inner Distribution
Divider systems
As a standard, the divider system is mounted on every 2nd chain link. As a standard, dividers or the complete divider system (dividers with height separations) are movable in the cross section (version A).
The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them. The locking cams click into place in the locking grids in the covers (version B).
Divider system TS0
without height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 5 | 10 | 7 | – | – |
| B | A | 10 | 7 | 2 | – |
| A | Bi [mm] | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 |
| aT min [mm] | 13 | 11.5 | 12 | 12.5 | 13 | 11.5 | 12 | 12.5 | 13 |
Divider system TS1
with continuous height separation
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | ax grid [mm] | nT min |
|---|---|---|---|---|---|
| A | 5 | 10 | 7 | – | 2 |
| B | A | 10 | 7 | 2 | – |
| A | Bi [mm] | 50 | 75 | 100 | 125 | 150 | 175 | 200 | 225 | 250 |
| aT min [mm] | 13 | 11.5 | 12 | 12.5 | 13 | 11.5 | 12 | 12.5 | 13 |
Divider system TS3
with height separation consisting of plastic partitions
As a standard, the divider A is used for vertical partitioning within the cable carrier. The complete divider system can be moved within the cross section (version A).
The dividers are easily attached to the stay for applications with transverse accelerations and for applications laying on the side by simply turning them. The locking cams click into place in the locking grids in the covers (version B).
| Vers. | aT min [mm] | ax min [mm] | ac min [mm] | nT min |
|---|---|---|---|---|
| A | 4/2* | 14 | 10 | 2 |
* For End Divider
The dividers are fixed by the partitions, the complete divider system is movable in the cross section.
ax (center distance of dividers) [mm] | |||||||||||
ac (nominal width of inner chamber) [mm] | |||||||||||
| 14 | 16 | 19 | 23 | 24 | 28 | 29 | 32 | 33 | 34 | 38 | 39 |
| 10 | 12 | 15 | 19 | 20 | 24 | 25 | 28 | 29 | 30 | 34 | 35 |
| 43 | 44 | 48 | 49 | 54 | 58 | 59 | 64 | 68 | 69 | 74 | 78 |
| 39 | 40 | 44 | 45 | 50 | 54 | 55 | 60 | 64 | 65 | 70 | 74 |
| 79 | 80 | 84 | 88 | 89 | 94 | 96 | 99 | 112 | |||
| 75 | 76 | 80 | 84 | 85 | 90 | 92 | 95 | 108 | |||
When using partitions with ax > 49 mm we recommended an additional preferential central support.
Order example
Please state the designation of the divider system (TS0, TS1...), version and number of dividers per cross section [nT]. In addition. please also enter the chambers [K] from left to right. as well as the assembly distances [aT/ax] (as seen from the driver).
If using divider systems with height separation (TS1, TS3) please also state the positions [e.g. VD23] viewed from the left driver belt. You are welcome to add a sketch to your order.
End connectors End connectors
| Bi [mm] | BEF [mm] | nz |
|---|---|---|
| 50 | 74 | 2 x 3 |
| 75 | 99 | 2 x 5 |
| 100 | 124 | 2 x 7 |
| 125 | 149 | 2 x 9 |
| 150 | 174 | 2 x 11 |
| 175 | 199 | 2 x 13 |
| 200 | 224 | - |
| 225 | 249 | - |
| 250 | 274 | - |
The end connectors are also available as an option without cover sheets. Please state when ordering.
Connection point
F – fixed point
M – driver
Connection type
U – Universal mounting bracket
